Z Profile Galvanized Section Roof Purlin Connection Detail

Z Profile Galvanized Section Roof Purlin Connection Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

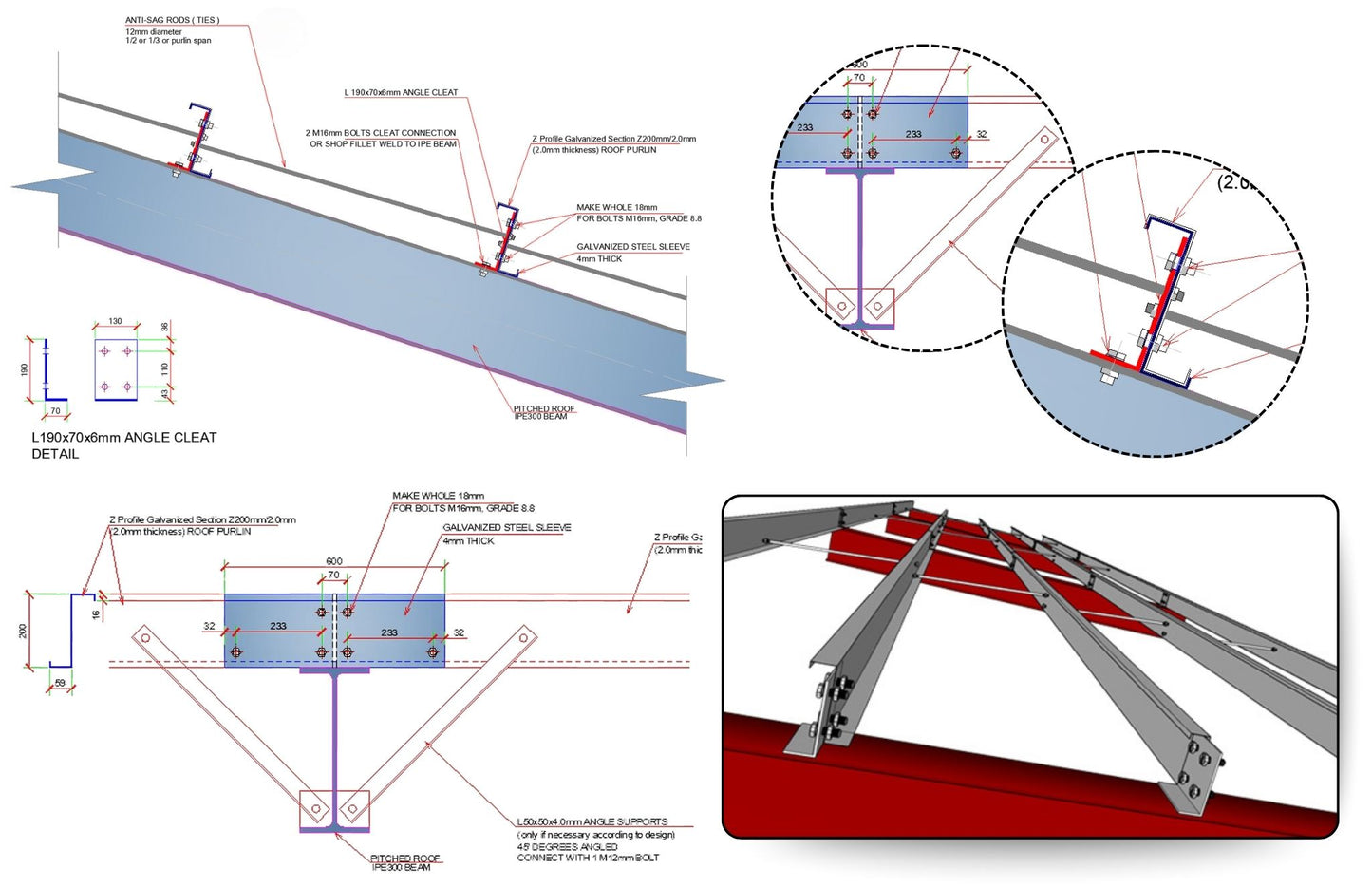

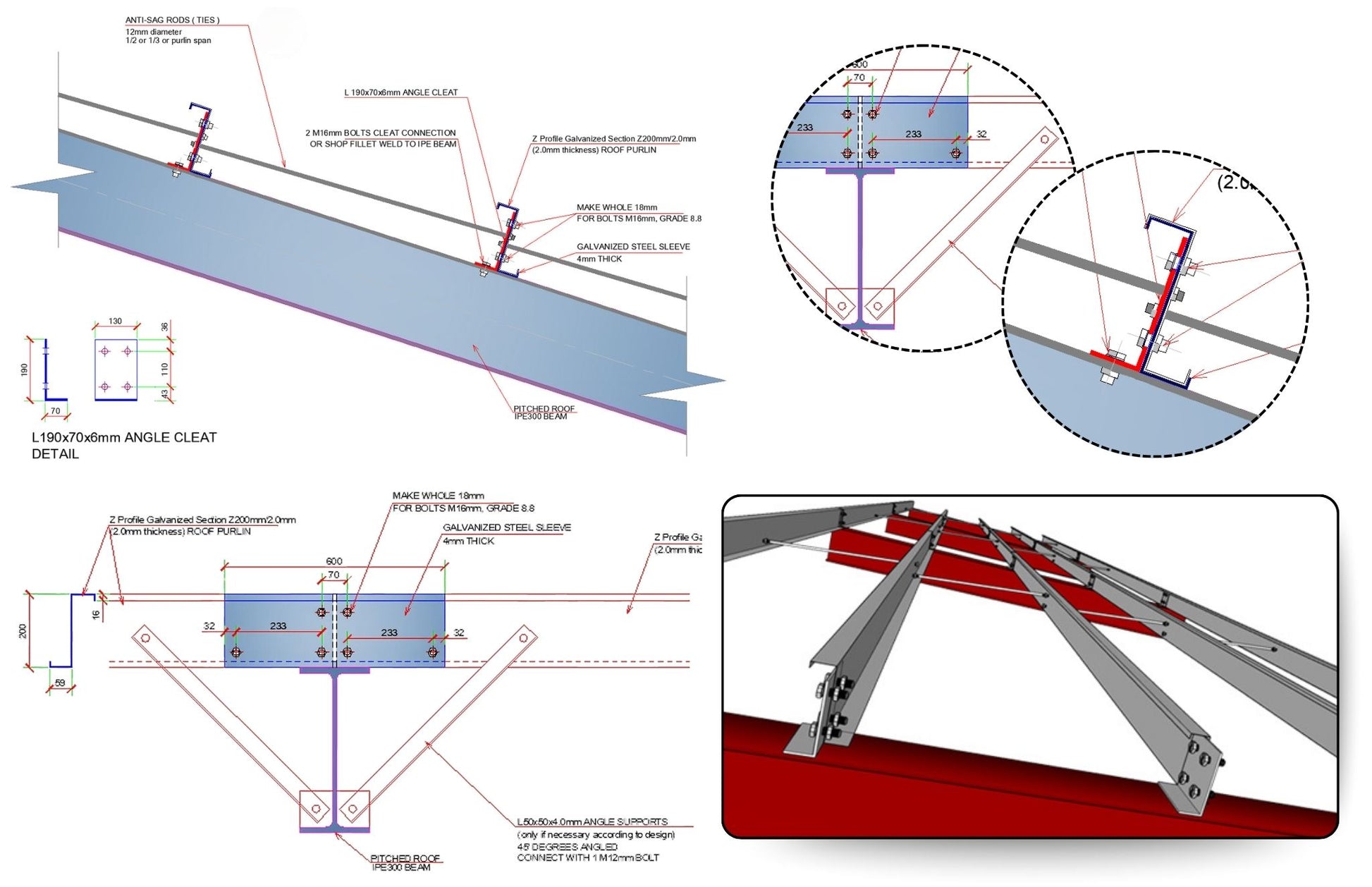

Looking for a CAD detailed drawing of a Z profile galvanized roof purlin? This powerful resource provides a comprehensive and accurate illustration of the connection detail of Z-purlins on top of an inclined parallel section profile roof inclined steel beam. This type of roof purlins are usually used at industrial steel frame structures with portal frame distances of more than 4 meters, and are suitable for supporting roof sandwich panels.

Comprehensive Detailing

This comprehensive connection drawing includes cross section and elevation views of the Z-profile purlin connection with :

  • L angle cleat support
  • Galvanized Sleeve Connection
  • On-site bolted connection
  • Z profile purlin Z200/2.0mm
  • Anti-sag rod ties
  • Pitched Roof IPE beam

Use with any project

A must have, valuable structural detail for your design library to use with every project.

The drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.
