Reinforced Concrete Beam Column Multistorey Frame Connections

Reinforced Concrete Beam Column Multistorey Frame Connections

€25,00 EUR
€33,00 EUR €25,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

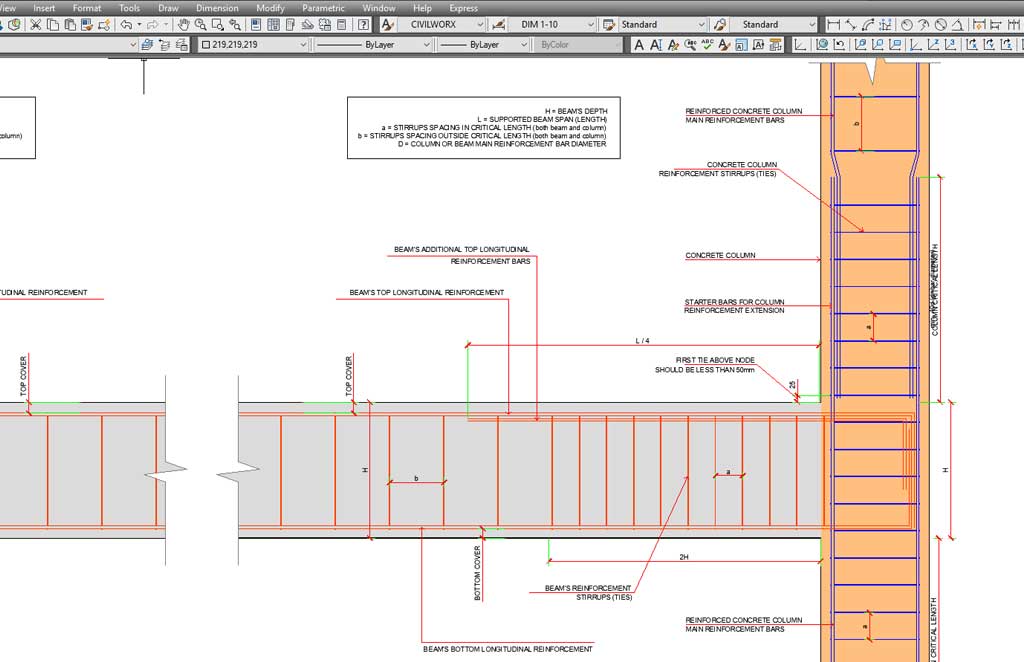

This is a generic CAD dwg drawing with complete set of Reinforced Concrete Beam Column Multistorey Frame Connections. The drawing illusatrates a typical multistorey building frame with 3 different foundations types, beam-column connections for middle floor exterior and internal connections, cantilever beam support and top floor beam-column connections, all fully detailed with proper reinforcement placement.

Top floor column reinforcement is detailed differently at the top floor frame level than the other middle storey beam-column joints.

Comprehensive Detailing

The frame illustrates a frame with 2 spans ( 3 columns ) and 3 floors, including cantilevered concrete beams on one side. This detail can be used as a typical detail with every project no matter the size or height of the building since it covers all possible joints of any building frame.

In this drawing a bundle of details taken individually from the reinf. concrete library, are combined into this mutli-storey frame together at a discounted price.

Invdividual details included

  • Footing Foundation Column Support
  • Reinforced Concrete Column Supported on Mat Spread Foundation
  • Eccentric Footing Foundation Column Support Detail
  • Reinforced Concrete Beam Column End Support Detail

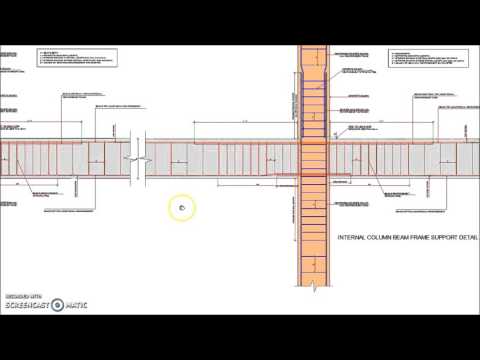

  • Internal Column Beam Frame Support Detail
  • Cantilever Concrete Beam Reinforcement Detail with adjucent continuous beam
  • Top Floor Reinforced Concrete Beam Column Frame Joint Connections

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.
