Timber Truss End Support on Load Bearing Wall

Timber Truss End Support on Load Bearing Wall

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

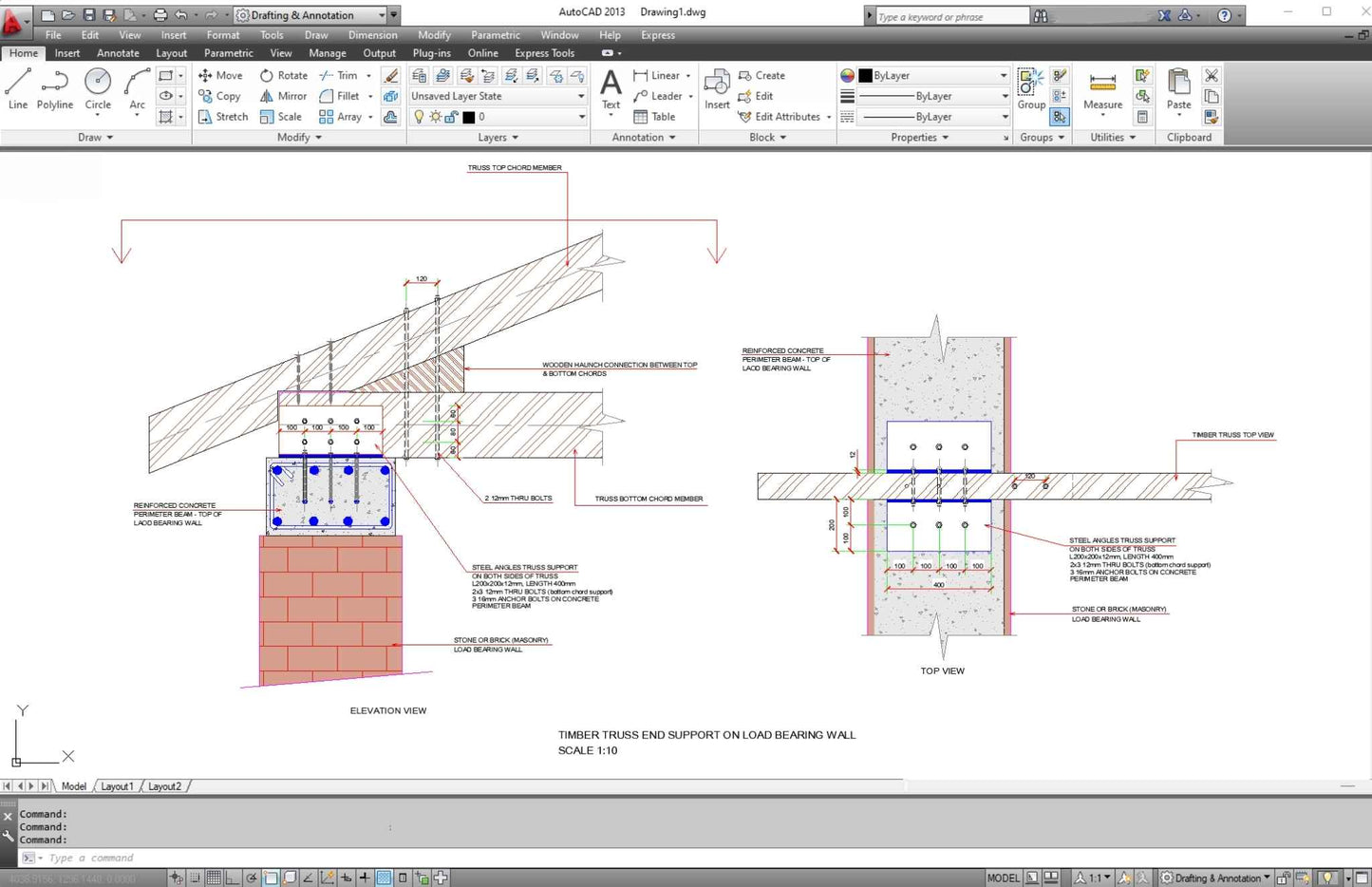

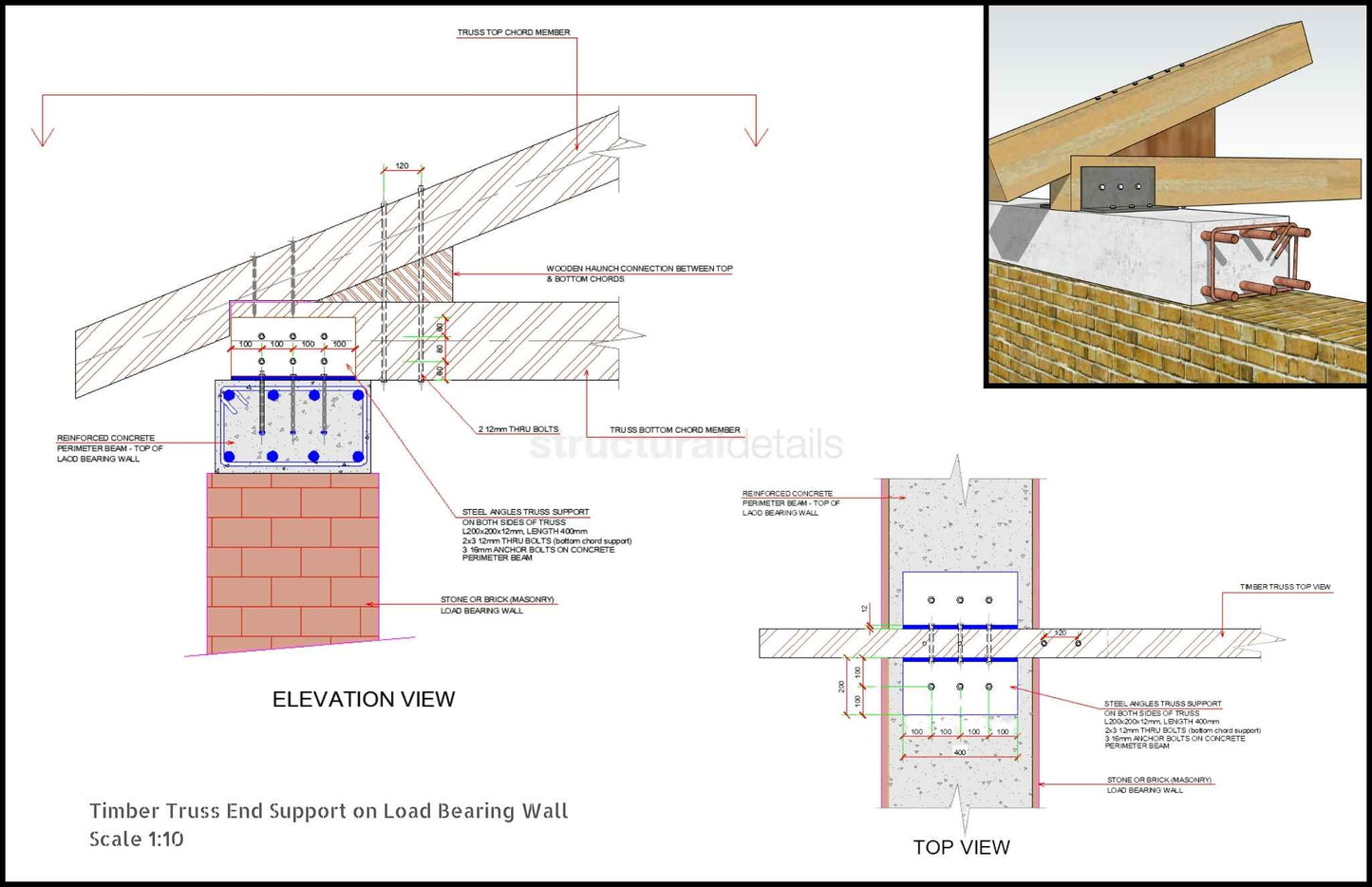

This CAD drawing provides a comprehensive detail of a timber truss end support on a load-bearing wall. It features both elevation and top views, clearly illustrating the arrangement and connection of key structural components. The drawing includes critical details like the truss top and bottom chord members, wooden haunch connection, steel angle supports, and reinforced concrete perimeter tie beam.

Elevation View

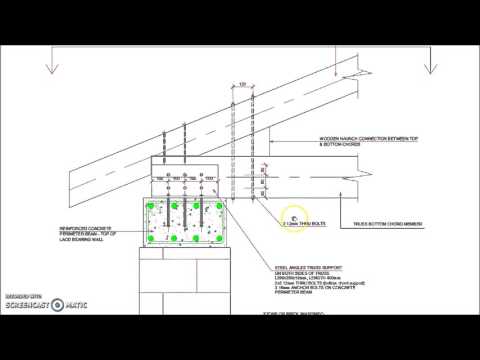

The elevation view highlights the connection between the timber truss and the load-bearing wall. It shows the reinforced concrete perimeter beam sitting atop the masonry wall, which securely supports the truss system. The truss chords are held together in place with through bolts and a wedge haunch member, and are fastened onto the reinforced concrete perimeter beam with steel angles on both sides.

Top Plan View

The top view details the placement and spacing of the bolts and steel angles used to anchor the truss to the perimeter beam. This view emphasizes the structural integrity and load transfer from the truss to the wall, ensuring that forces are distributed evenly.
