Timber Roof Overhang Fascia Detail with Clay Tiles

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

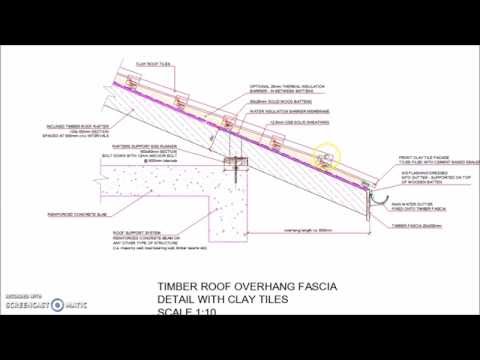

CAD dwg drawing for a Timber Roof Overhang Fascia Detail with Clay Tiles. Pitched roof overhang and fascia detail, with standard type roof clay tiles on a inclined timber rafters 100 x 150 mm section. Timber rafter is supported from on a wooden batten runner which is fixed to the edge of the peripheral structural member of the roof. In this detail, the timber roof is supported on a reinforced concrete beam along the perimeter of the building.

Detail includes solid wood batten supports for the roof tiles, water barrier membrane on top of timber rafters with OSB solid sheathing for water insulation, optional thermal insulation in-between the solid wood battens with actual in-scale sized clay tiles, wooden fascia with rain water gutter support. Length of the overhang illustrated in this drawing is 800mm, but this depends on the actual architectural and design of the roof.

Solid paneling can also be added underneath the wooden overhang to give a nice flat surface underneath.
