Swimming Pool Water Level Depth Change Detail

Swimming Pool Water Level Depth Change Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

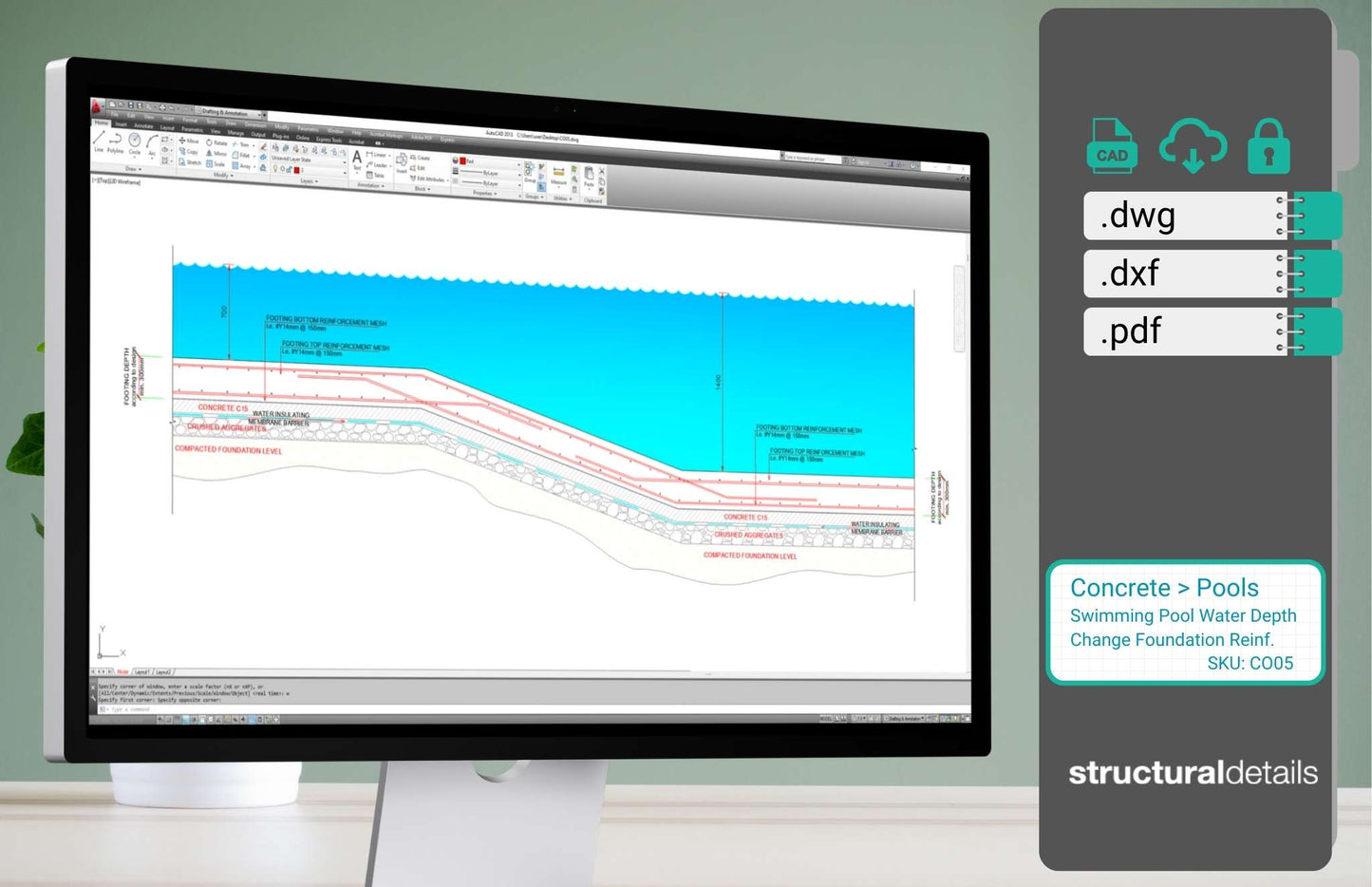

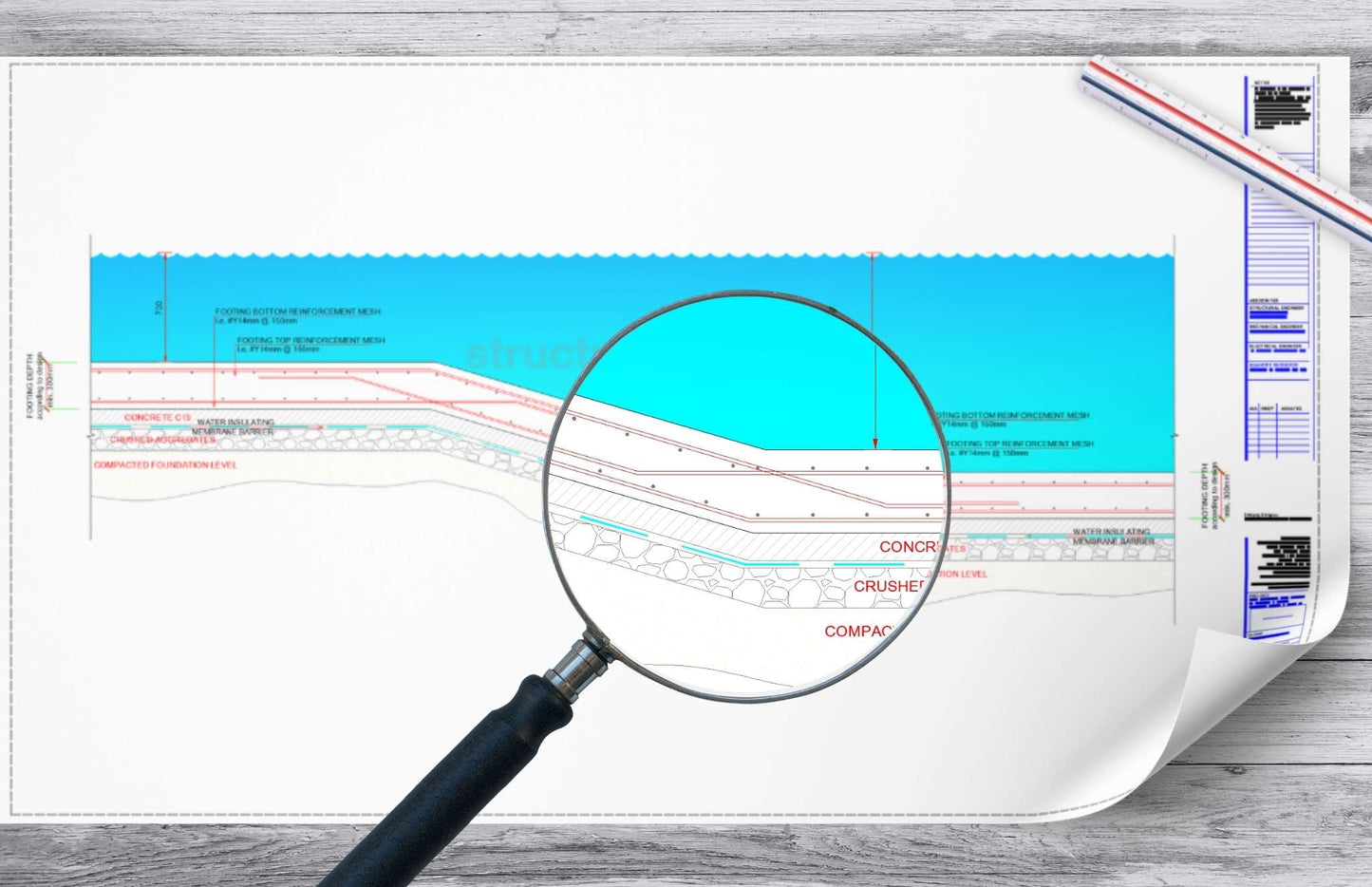

CAD dwg drawing for a Swimming Pool Water Level Depth Change Detail. Pool foundation reinforcement detail with a change of water level pool depth. Pool with depth of 140cm gradually changing to 70cm shallow end.

Water depth can vary together with the foundation slab depth and reinforcement level according to the overall depth of the water. Calculations were carried out assuming water pool depth is 140cm.

View full details
