Swimming Pool Recliner and Jetbed Construction Detail

Swimming Pool Recliner and Jetbed Construction Detail

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

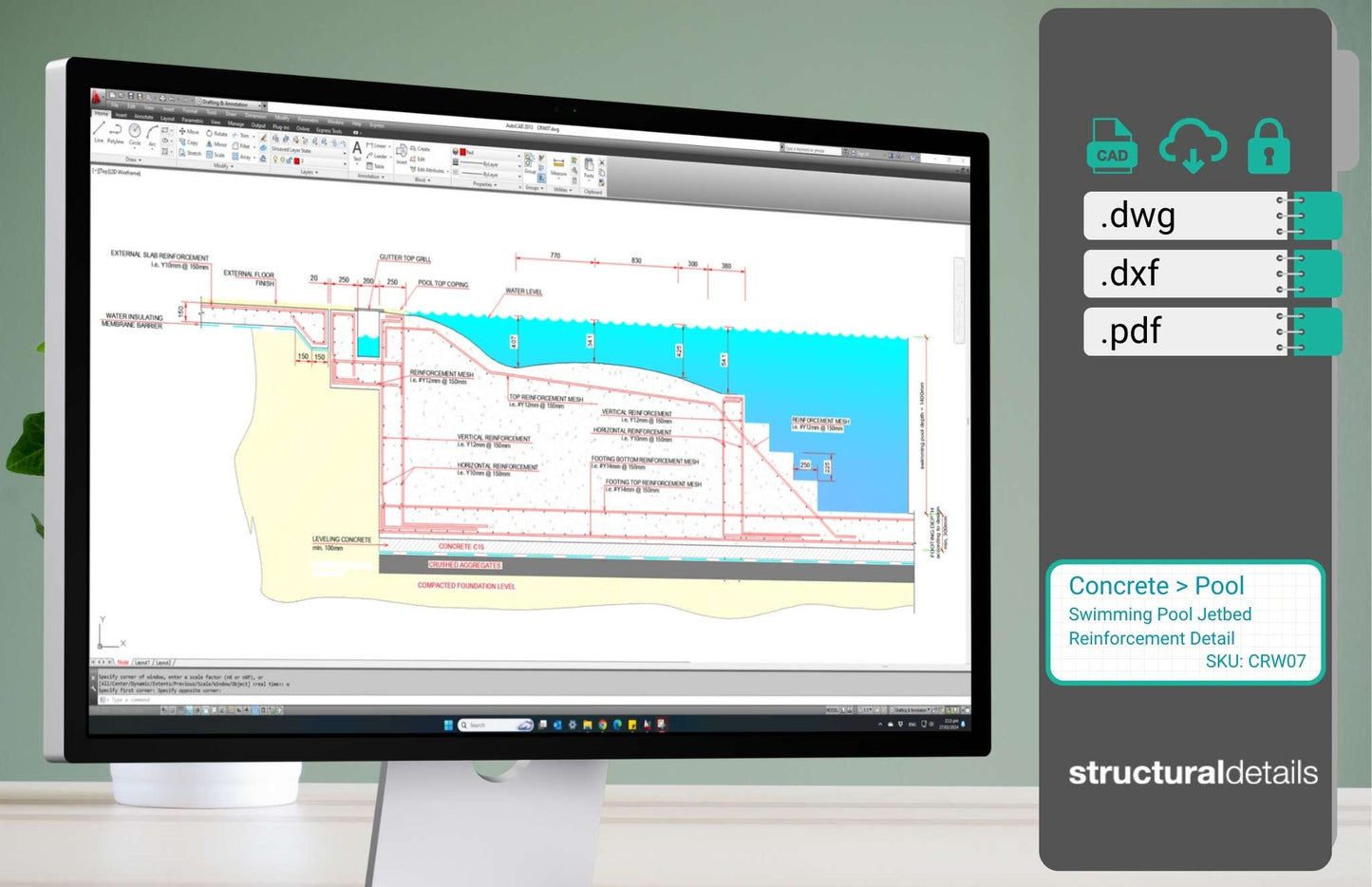

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

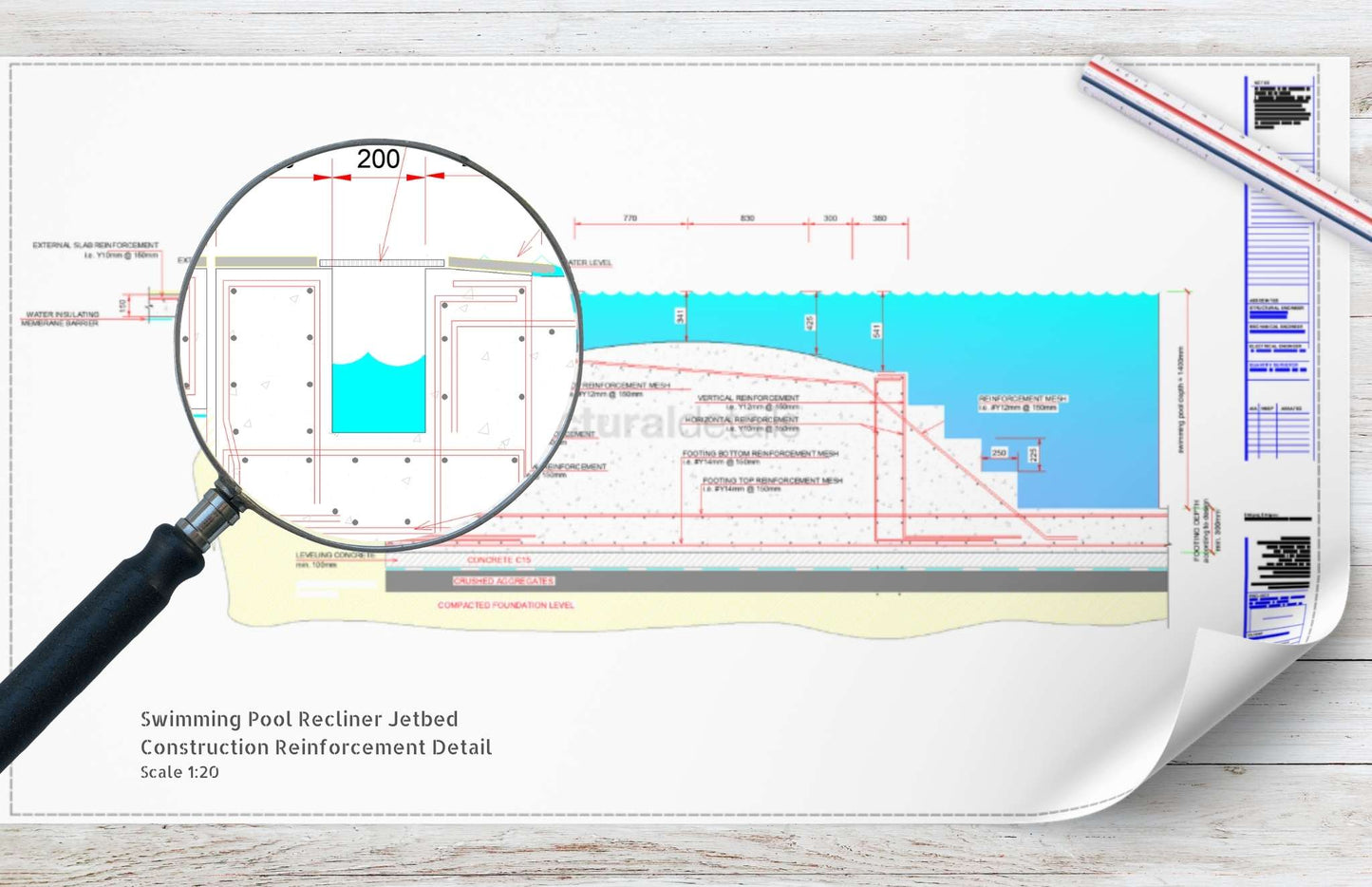

This is a complete detailed structural CAD drawing of a swimming pool recliner jetbed construction detail in an overflow flow, taken from real life projects. It can be imported into any pool structural design project and used as a standard reinforcement detailing for construction.

Pool recliner jetbeds need to provide maximum comfort to the users, have the proper water depth to allow for hydromassage experience and still stay lying down and not float whilst your head is above the water.

Raised platform to lead from the full pool depth to the proper jetbed despth is also needed so you can comfortably lie down and get up from the jetbed.

Comprehensive Detailing

This highly detailed construction drawing is one of the most valuable and essential tool you will need when designing reinforced concrete pool jetbed recliner with hydromassage to help you save valuable time with every project.

The drawing provides a clear and complete reinforcement detailing of all the retaining walls and footings needed in order to complete this structural design task.

Proper and comfortable sizing and dimensioning as well as water depth of the reclined jetbed for maximum relaxation and pleasure.

  • Pool foundation reinforcement detailings
  • Pool wall vertical and horizontal reinforcement
  • Construction joints with water stop detail
  • Pool copings
  • Overflow gutter detail
  • External floor reinforcement detail

Generic and adaptable

This comprehensive drawing provides a clear and detailed representation of everything needed to completely design and detail a swimming pool jetbed recliner in an overflow type pool.

The drawing is designed to be adaptable to any reinforced concrete design project, ensuring that it can be used across a wide range of construction applications.
