Swimming Pool Jacuzzi Seat Construction Detail

Swimming Pool Jacuzzi Seat Construction Detail

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

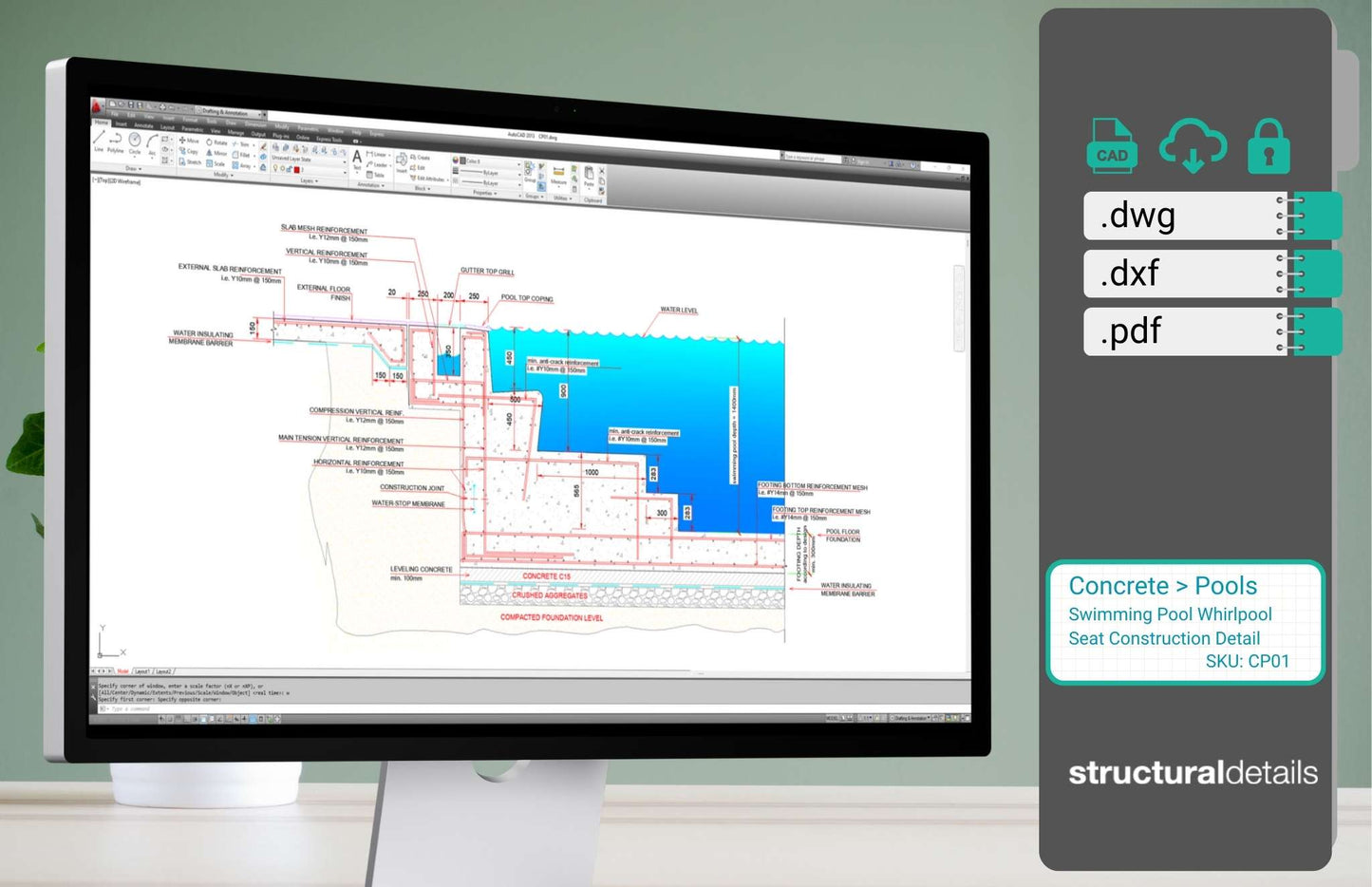

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

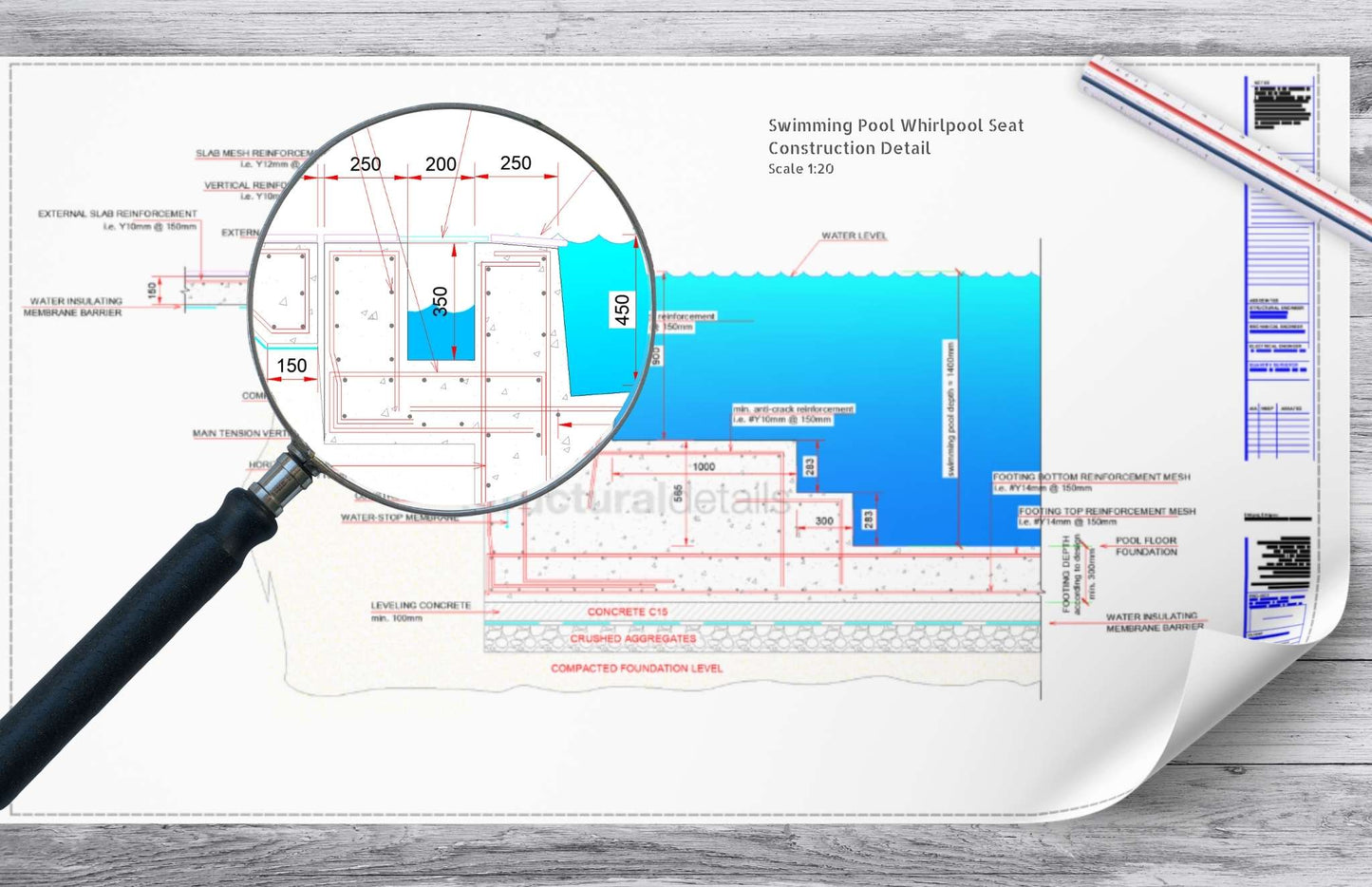

This is a CAD .dwg drawing for a Swimming Pool Jacuzzi Seat Construction Detail. Reinforced Concrete Jacuzzi / whirlpool / hydromassage seat detailed .dwg drawing. Full structural reinforcement and architectural detailing, ready to be used for construction.

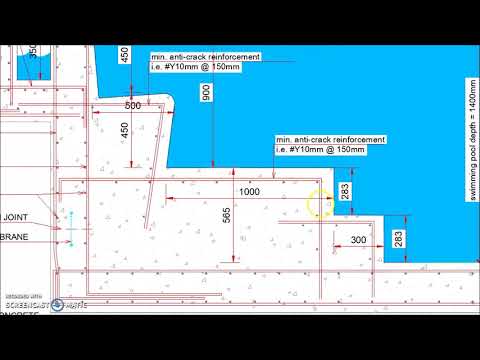

Depending on the pool water depth, a raised platform with steps will need to be constructed as shown in this detail, that leads to the jacuzzi seat in order to get the proper water depth where the seat is. The proposed water depth for the jacuzzi area is appr. 900mm , so that when seated, your shoulders are at about the water level. If too deep, it will be difficult for anyone to sit with their head above the water and if too shallow the hydromassage experience will not be adequate.

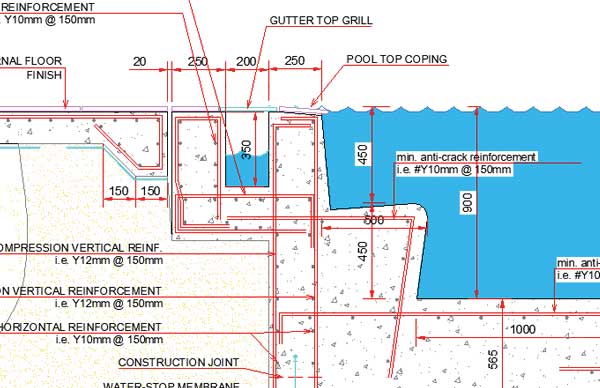

Construction Detailing

  • Foundation sub-layers
  • Foundation sub-layers
  • Pool foundation reinforcement detailing
  • Pool Retaining Wall reinforcement
  • Overflow and gutter detailing
  • Exterior slab
  • Jacuzzi Seat detailed dimensioning & reinforcement
  • Raised jacuzzi floor and steps
  • Water insulation and water stop
  • Proper water depth level
  • Hydromassage seat water depth
  • Ergonomic seat detailing
  • Raised jacuzzi area
  • Steps leading to jacuzzi area
