Stepped Reinforced Concrete Foundation Footings Detail

Stepped Reinforced Concrete Foundation Footings Detail

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

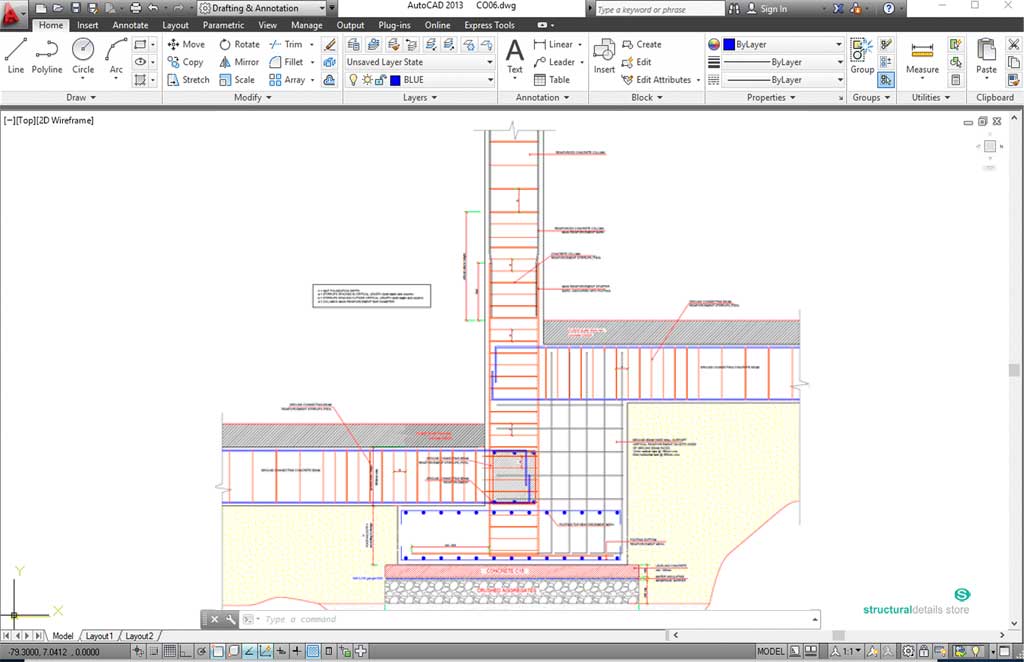

This is a CAD dwg drawing with a Stepped Reinforced Concrete Foundation Footings Detail. Concrete columns that need to be supported from foundations on different elevation level, need to be properly connected with foundation ground beams in order to account for differential ground settlement.

Best practice is to support all structure columns on footings on the same level. Such practive should only be implemented for particular conditions and situations that demand it.

Consecutive columns that are founded on different levels should be connected with foundation ground grade beams. This CAD drawing is a typical general detail describing how these two columns should be connected detailing both their respective footings and ground beams as well as reinforcement ties for both column and beams, ancorage, development length minimums etc.

Purchased contents include :

  • CAD .dwg file
  • CAD .dxf file
  • PDF
  • unlimited use, unlocked, fully customisable
