Steel Jacketing Reinforcement For Reinforced Concrete Beam

Steel Jacketing Reinforcement For Reinforced Concrete Beam

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

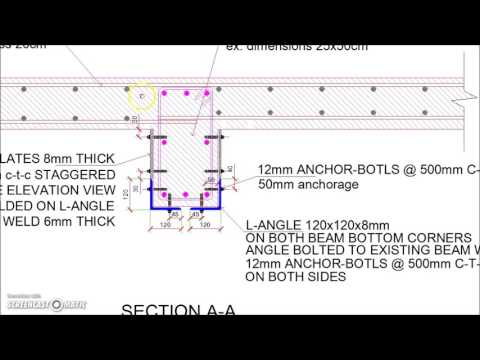

Detailed CAD drawing of Steel Jacketing Reinforcement For Reinforced Concrete Beam. Retrofitting and strengthening a reinforced concrete beam using steel angle profiles and steel shear plates welded onto corner steel angles. Steel caging of reinforced concrete beam.

  • steel caging strengthening & reinforcement
  • cross section detailing
  • elevation view detailing
  • steel angles anchorage to existing beam
  • suitable when sizing restrictions apply
  • shear reinforcement with steel plates
