Steel Hangar Portal Frame Roof Eaves Beam Detail

Steel Hangar Portal Frame Roof Eaves Beam Detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a reliable and comprehensive CAD drawing that illustrates the proper installation of the edge eaves beam in a steel frame hangar design? Look no further. This CAD drawing is an essential tool for structural engineers and designers looking to ensure the proper installation of edge eaves beams in steel hangar portal frames and other similar structures.

Comprehensive Detailing

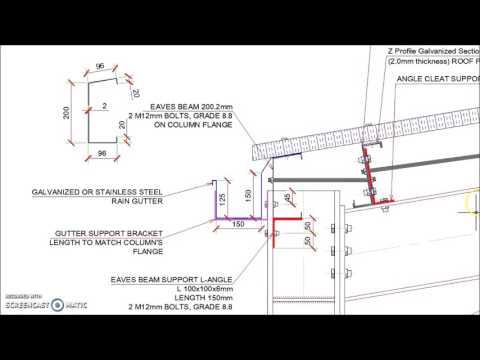

This drawing features a detailed breakdown of the installation of a galvanized standard section eaves beam, 200mm in height and 2mm thick, supported onto the hangar edge column with a steel L-angle profile. This eaves beam supports both the gutter and the edge of the roof sandwich panel, ensuring proper rainwater collection and protection from the elements.

Use with any project

You’ll be able to easily incorporate the eaves beam installation into any steel frame hangar design drawing. Plus, with the ability to customize the drawing using simple CAD commands such as stretch, rotate, and more, you can ensure that the installation is tailored to your specific project needs.
