Steel Decking Floor Supported on Reinforced Concrete Wall

Steel Decking Floor Supported on Reinforced Concrete Wall

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

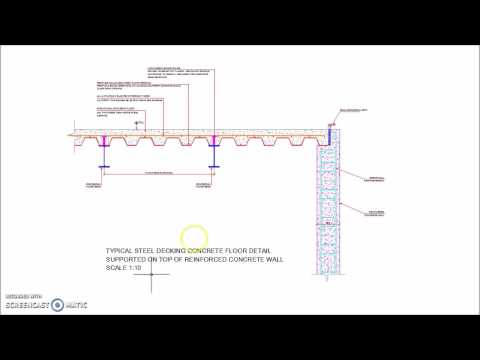

This is a precise detailed structural CAD drawing for a a steel decking floor supported on a reinforced concrete wall, taken from real life projects. It can be imported into any steel or composite structure design project and used as a standard reinforcement detailing for construction.

Steel decking concrete slab with galvanized trapezoidal metal sheet supported on steel beams, supported at the end on top of an RC wall. RC wall has an upstand to enclose the deck flooring. Low carbon shear studs are used on each decking – steel beam support.

Comprehensive Detailing

This fully detailed 2D drawing provides a clear and detailed depiction of the concrete floor decking supported on steel floor beams with a trapezoidal steel decking, with an end support on top of a reinforced concrete wall. The drawing is designed to be adaptable to any steel frame or composite design project, ensuring that it can be used across a wide range of construction applications.

Drawing detail includes minimum slab anti-crack reinforcement, minimum cover, low carbon shear studs welded on top of steel IPE floor beam, galvanized steel decking profile section description as well as detailing at the end support with an expansion joint placement between the steel floor and the concrete wall, to accomodate for any differential lateral displacements.

Use with any project

This comprehensive drawing provides a clear and detailed representation for supporting a steel decking on top of an end support reinforced concrete wall, complete with all necessary reinforcement details.

The drawing is designed to be adaptable to any steel frame or composite design project, ensuring that it can be used across a wide range of construction applications. It has been designed as a generic detail, so it can be used with any project. Great addition to any engineer’s library.
