Steel Column Supported on Strip Foundation

Steel Column Supported on Strip Foundation

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

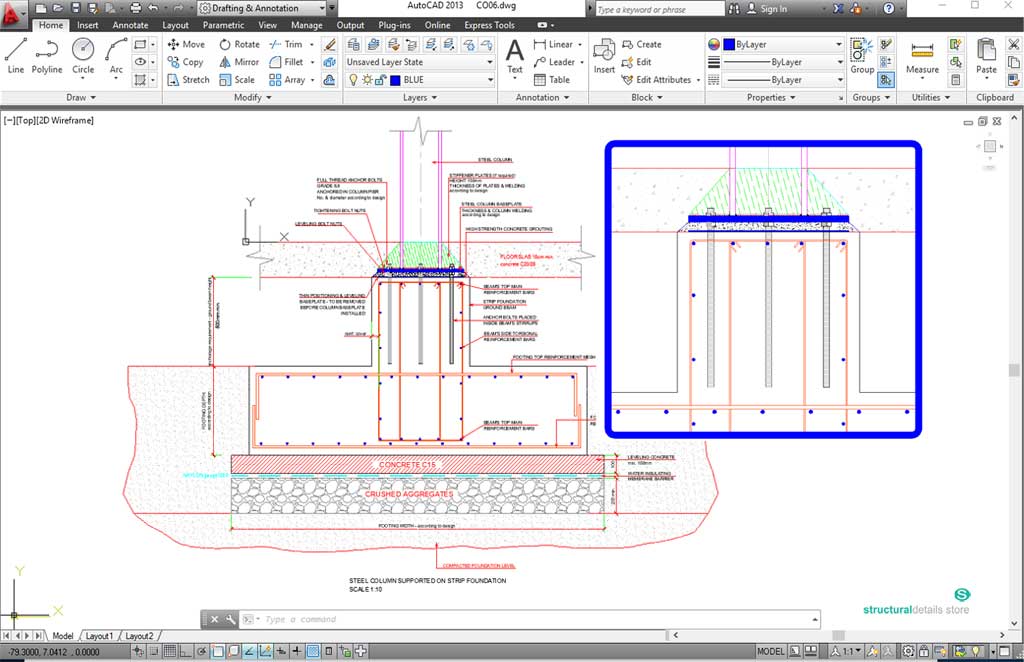

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

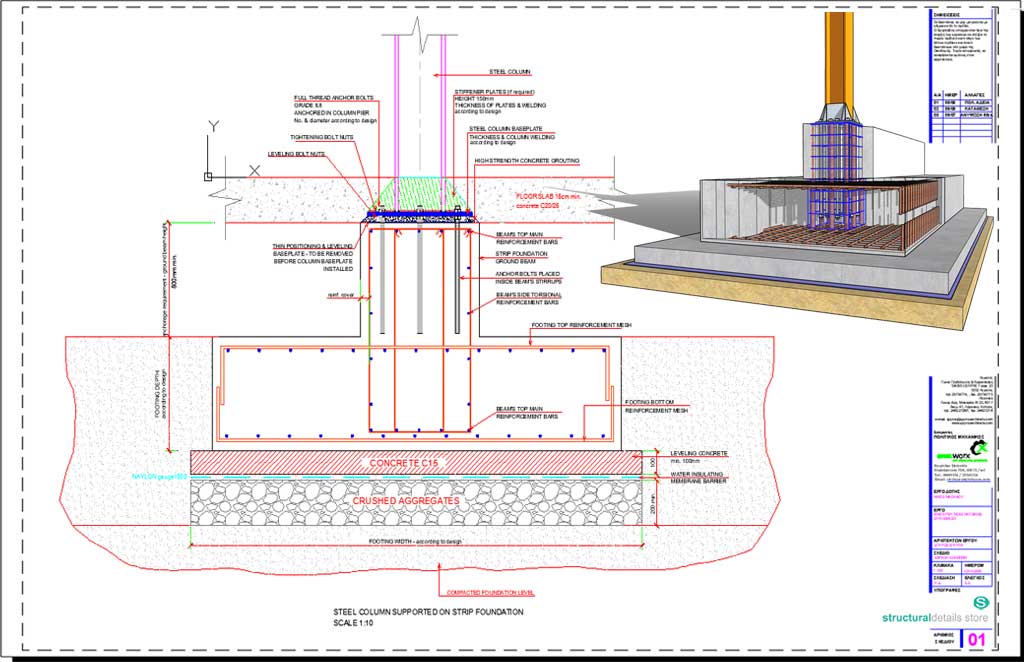

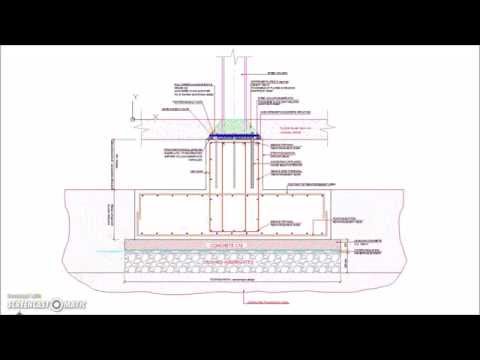

This is a fully detailed structural CAD drawing for a steel column strip foundation detail supporting a parallel wide flange (HEB/HEA or UC or I section) steel column with a reinforced concrete pier column. Prepared by experts in the field of structural engineers and steel frame design following years of refining knowledge and skills to be used in real life projects.

It can be imported into any steel frame design project and used as a standard reinforcement detailing for construction.

Extensive Detailing

This highly detailed construction drawing is one of the most valuable and essential tool you will need when designing with steel frame structures to help you save valuable time with every project.

It provides a clear and detailed depiction of the strip footing foundation and column support structure, complete with all necessary reinforcement details.

  • reinforced concrete footing reinforcement & dimensions
  • reinforced concrete pier column reinforcement & dimensions
  • anchor bolts dimensioning & details
  • baseplate dimensioning
  • steel stiffeners
  • footing reinforcement
  • column pier reinforcement
  • sub leveling concrete
  • water barrier layer

Can be used by any engineer, architect, or construction professional working with steel frame designs.
