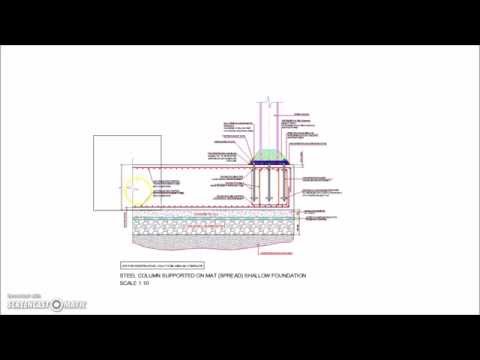

Steel Column Supported on Shallow Mat Spread Foundation

Steel Column Supported on Shallow Mat Spread Foundation

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a fully detailed structural CAD drawing for a shallow mat spread foundation detail supporting a parallel wide flange (HEB/HEA or UC or I section) steel column. Prepared by experts in the field of structural engineers and steel frame design following years of refining knowledge and skills to be used in real life projects.

It can be imported into any steel frame design project and used as a standard reinforcement detailing for construction.

Extensive Detailing

This highly detailed construction drawing is one of the most valuable and essential tool you will need when designing with steel frame structures to help you save valuable time with every project.

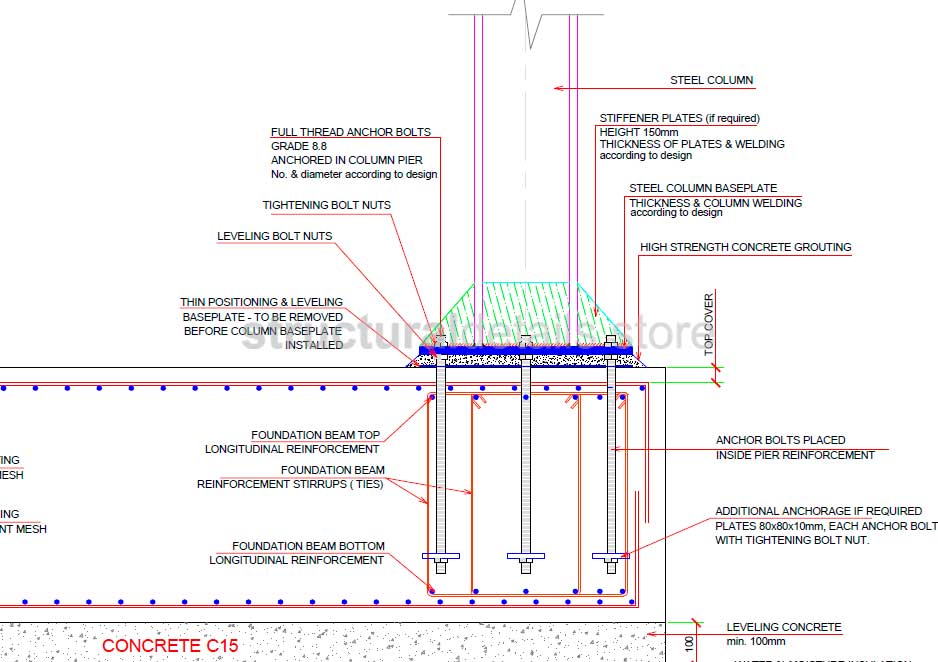

It provides a clear and detailed depiction of the footing foundation and column support anchorage, complete with all necessary reinforcement details.

  • reinforced concrete footing to and bottom reinforcement
  • foundation beams reinforcement cross section
  • anchor bolts dimensioning & details
  • baseplate, leveling baseplate and leveling bolt nuts
  • steel stiffeners
  • footing reinforcement
  • sub-footing layers

Being a shallow foundation, usually there is not enough anchorage length for the anchor bolts, therefore extra anchor bolt nuts and washers are used at the bottom of each anchor bolt, inside the concrete footing, to increase the anchorage development length and minimize slippage effect. Anchor bolts must fall within the foundation beams stirrups.

Can be used by any engineer, architect, or construction professional working with steel frame designs.
