Steel Column Bolted Splice Extension Connection

Steel Column Bolted Splice Extension Connection

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

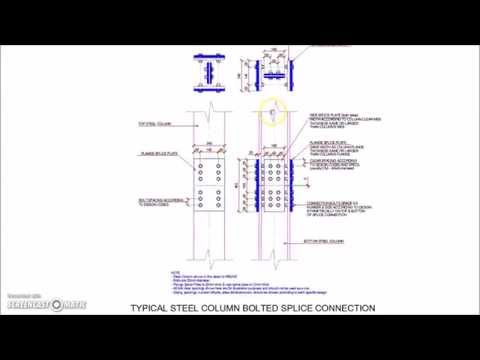

Looking for a CAD detail drawing for a Steel Column Bolted Splice Extension Connection? This powerful resource provides a comprehensive and accurate illustration of a full-moment resisting connection, between 2 wide parallel flange column profile sections ( HEB, HEA profiles ) for extending the height of the column.  Same size column splice extension connection with splice plates on both flanges and web sides.

Comprehensive Detailing

This comprehensive connection drawing includes complete dimension detailing, plate thickness and sizing, bolts grade, diameter and position, welding specifications.

Double plates on both sides of the column flanges and web to ensure proper column alignment and full moment resisting connection.

Use with any project

This comprehensive drawing provides a clear and detailed representation of a same size column splice connection.

The drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and column profile sections, saving valuable time and increasing efficiency on every project.

Column Splice Connections should be carried out where moment capacity requirements are at minimum. Column Splice connections should if possible reduced to minimum depending on the length availability of the HEB profile sections. When necessary column splice extension connections should be made adequate to ensure full load capacity can be carried out throughout the column.
