Steel Cantilever Staircase with Wooden Finish

Steel Cantilever Staircase with Wooden Finish

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

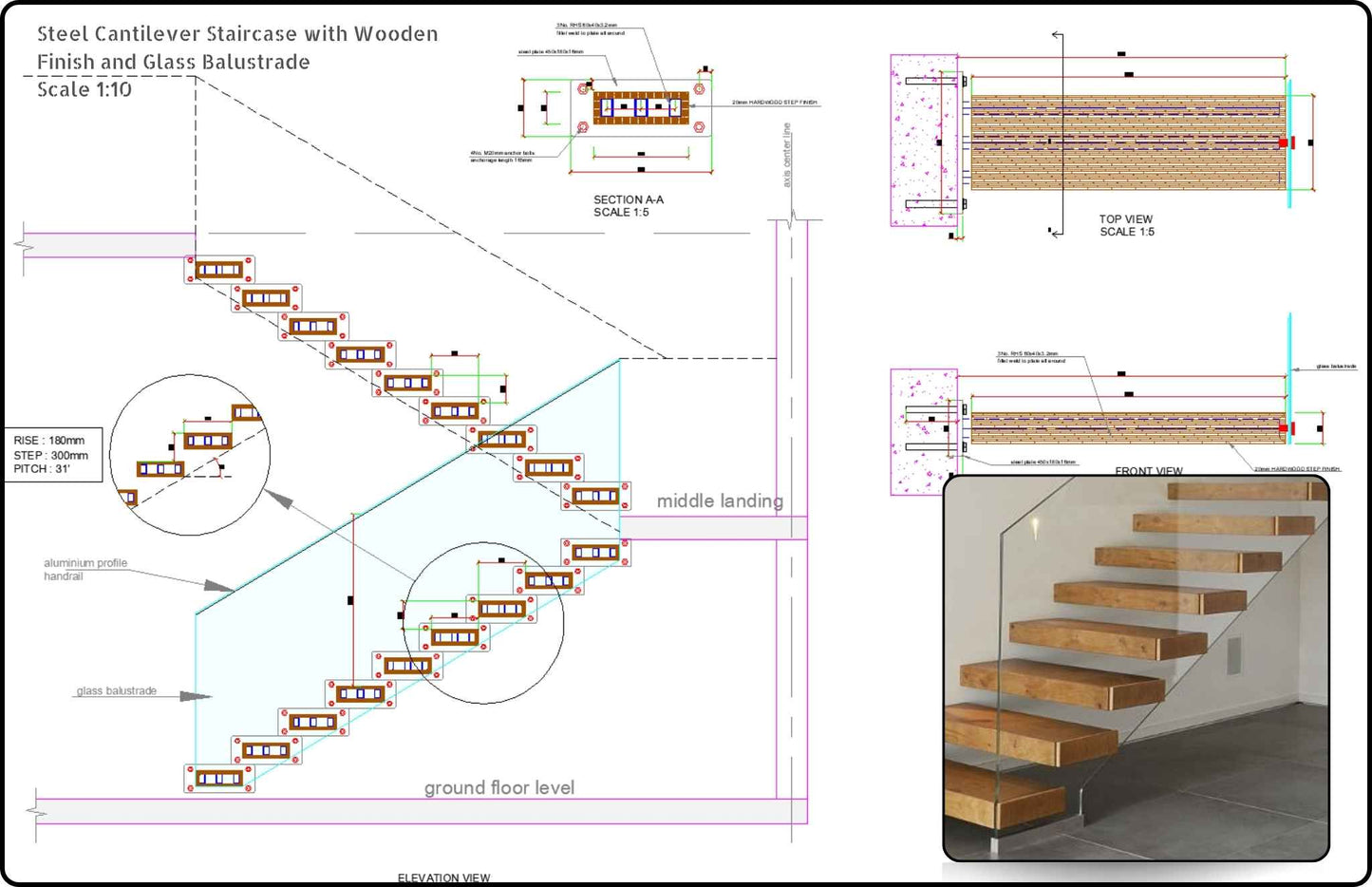

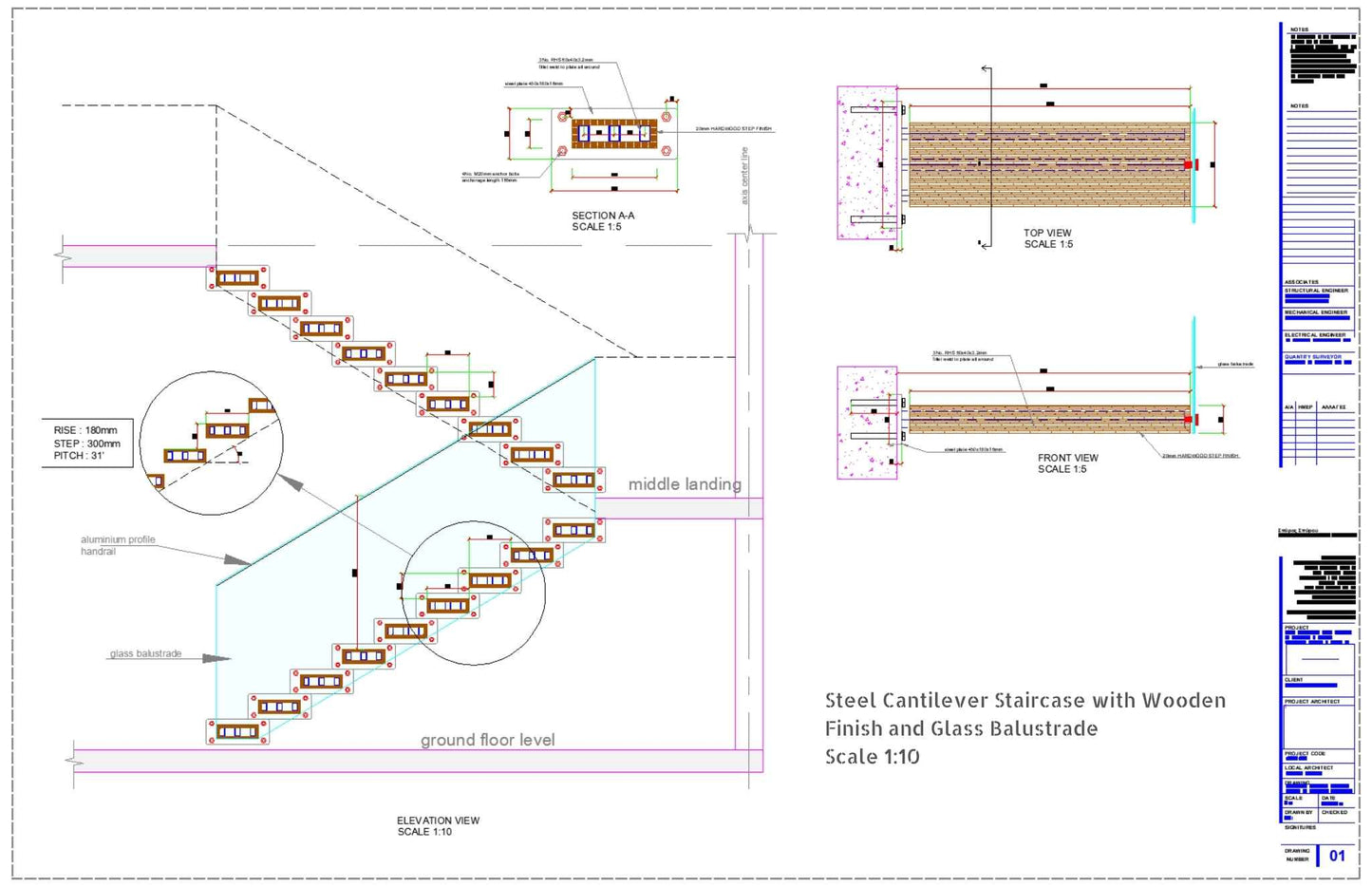

This is a detailed structural CAD drawing for a Steel Cantilever Staircase with Wooden Finish. Each step of the staircase is free-standing and cantileverd from a supporting adjacent wall.

It will be a great addition to your library when designing steel stairs and it will save you a tremendous amount of time instead of designing it from scratch. It is a full comprehensive design detailed drawing including everything needed to fabricate this staircase.

Interior design staircase

Mainly used an interior designed cantilever staircase, with each step free floating from a supporting wall.

The actual steps are constructed with hidden steel beams rendered with wooden finish, but this can be changed to suit any design. ( i.e steel plate, encase concrete step, marble step, glass step etc )

Generic adaptable design

The drawing is designed to be adaptable to any design project, ensuring that it can be used across a wide range of construction applications.

Each step is a standalone installation, making this detailed drawing adjastable to any situation. It can take the form of a single flight from one level to another or even combine an existing middle landing and become a double flight staircase, or even follow a curved circular wall.

Cantilevered Standalone Steps

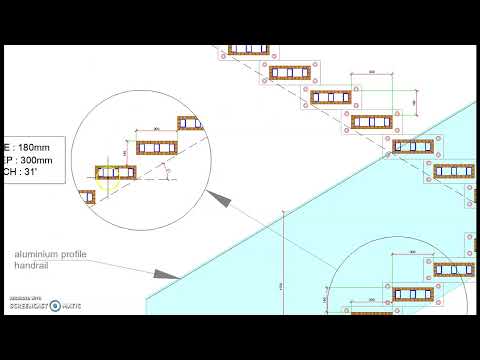

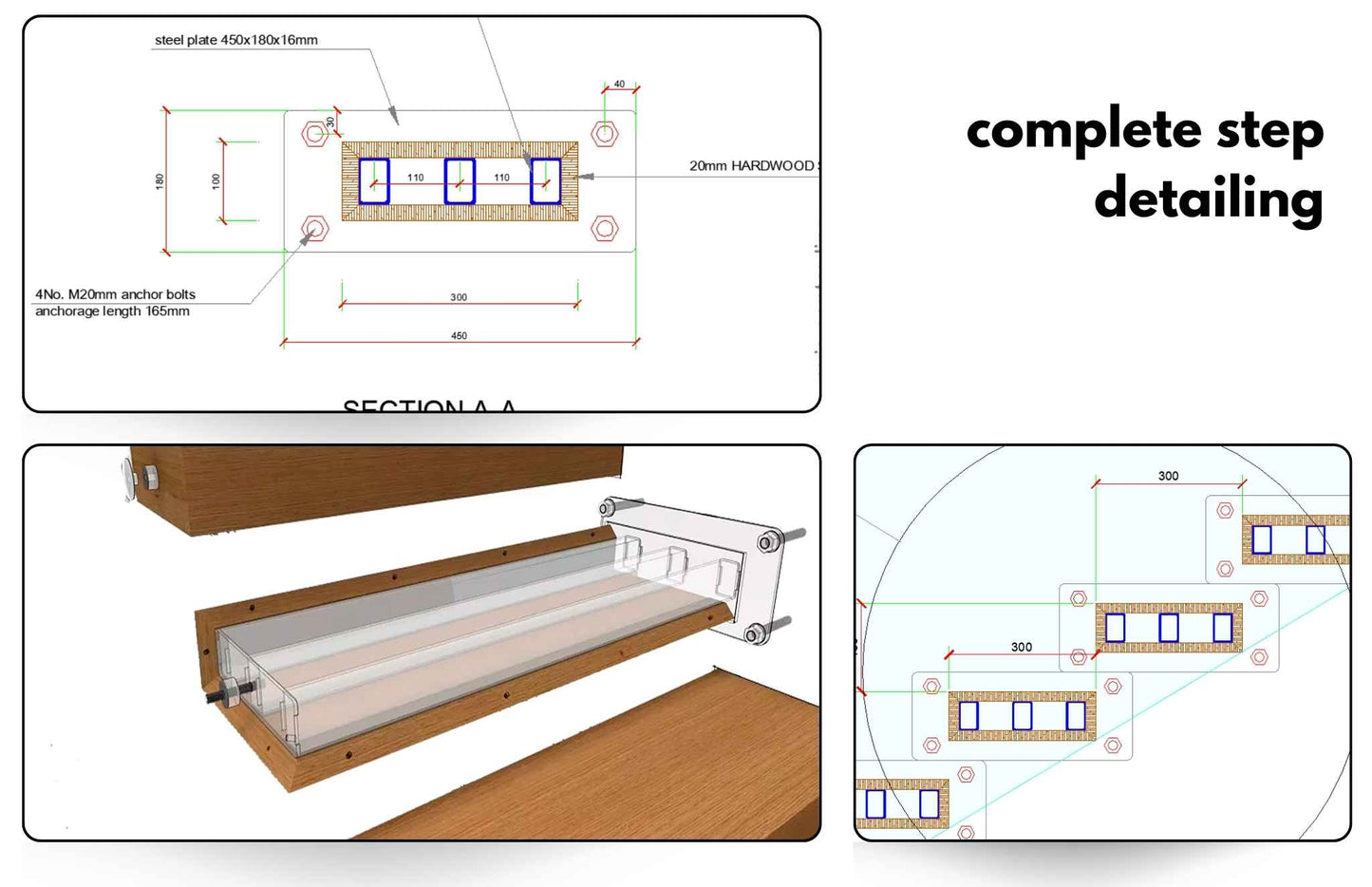

Fully detailed CAD drawing for the cantilevered step. Support consists of 3 RHS cantilever steel beams for each step directly connected to an adjacent wall. Drawing includes support plate and bolt dimensioning.

The step finish is from a 20mm hardwood finish on each step, making it a great detail to be used for residential and commercial design areas.

Glass balustrade can be fixed on the side of each step and run to the whole extend of the staircase. One can adopt any type of staircase balustrade that fits the purpose and the design.
