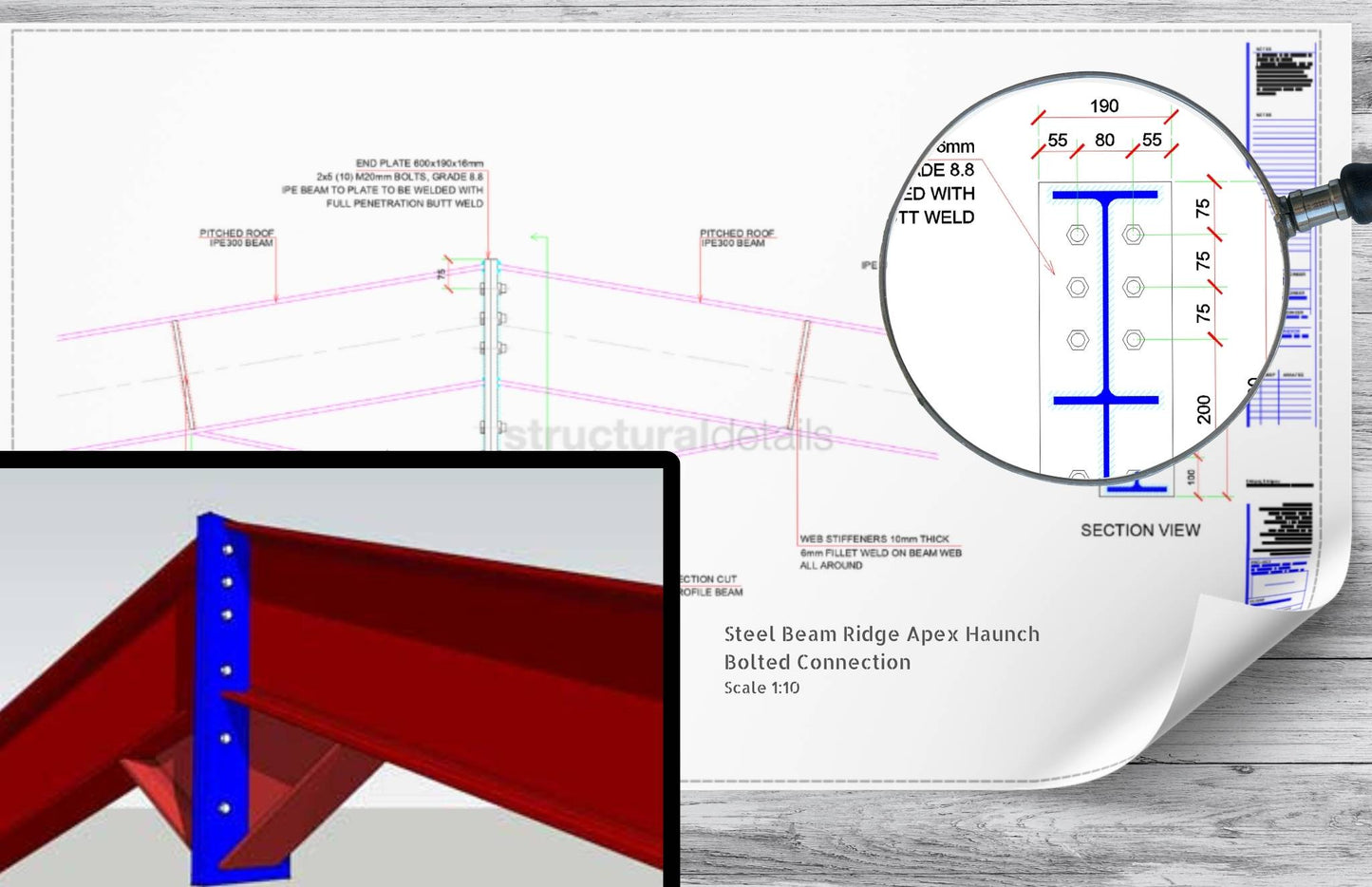

Steel Beam Ridge Apex Haunch Bolted Connection

Steel Beam Ridge Apex Haunch Bolted Connection

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a CAD detail drawing for a Steel Apex Haunch Connection Detail? This powerful resource provides a comprehensive and accurate moment resisting connection detail, of two parallel flange IPE profile beams, with a bolted endplate haunched connection. No on-site welding required. Product is a full CAD dwg drawing which can be used for any steel roof building, portal frames, hangars, industrial buildings etc.

Great addition to any designer’s library. With few simple CAD commands can be adapted for any project.

Comprehensive Detailing

This comprehensive connection drawing includes complete dimension detailing, endplate thickness and sizing, bolts grade, diameter and position, welding specifications, beam web stiffener size and welding, haunch sizing and more. The main beam web stiffener provides excellent torsional resistance at the connection point, ensuring optimal strength and durability.

Use with any project

This comprehensive drawing provides a clear and detailed design of an apex, endplate haunch connection between two roof IPE profile beams.

The drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.
