Steel Beam Reinforced Concrete Wall Simple Connection

Steel Beam Reinforced Concrete Wall Simple Connection

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a CAD detail drawing for a detailed drawing of a steel beam simple connection onto a reinforced concrete wall? This reference drawing is an essential resource for a seamless integration between an IPE profile section steel beam with a reinforced concrete load bearing wall. Connection is a moment release simple connection.

Comprehensive Detailing

Parallel flange IPE section profile steel beam with double side angle cleats, connected on the side of a reinforced concrete shear wall with anchor bolts.

Full dimensioning detail including L-angles, anchor bolts, anchorage length, bolt sizing and dimensioning. Anchor bolts are to be anchored inside the load bearing wall prior to casting. Double angle cleats are connected with 3 bolts on the steel web. No on-site welding is necessary.

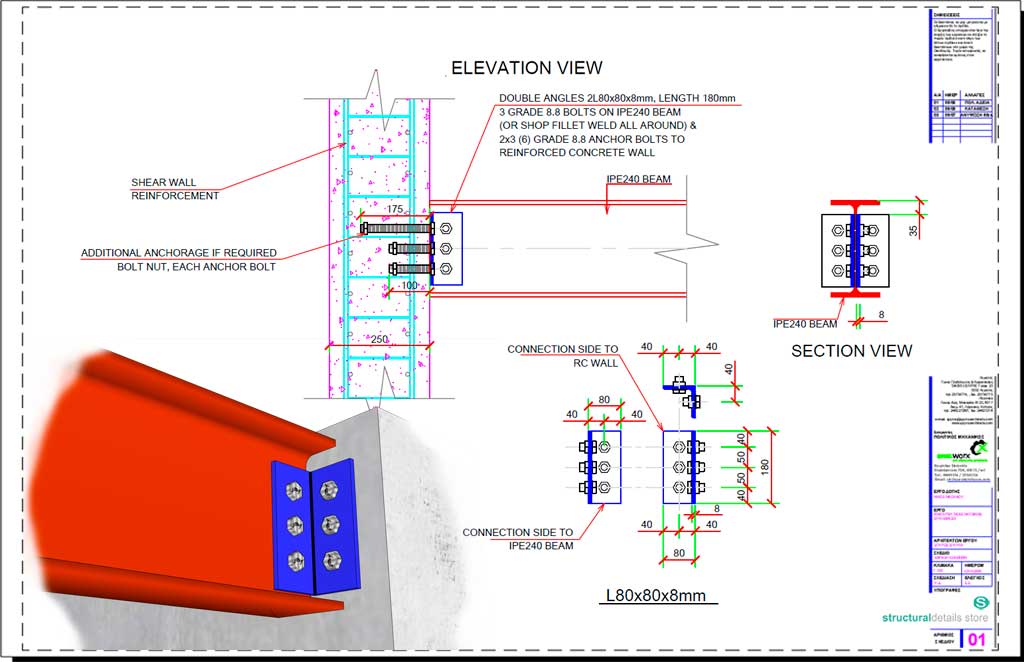

Drawing includes elevation view of the connection, a cross section and all sides detailing of the L-angle connection cleats.

Use with any project

This comprehensive drawing provides a clear and detailed representation of a simple connection onto the side of an RC wall.

The drawing is designed to be adaptable to any composite structure steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.
