Steel Beam Composite Slab Cross Section Detail

Steel Beam Composite Slab Cross Section Detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a CAD dwg drawing for a steel beam composite slab cross section detail. When there is an architectural demand for reducing the overall thickness of a slab on a steel framed building, sometimes it is useful to include both the steel beams and the concrete decking slab on the same height, thus reducing the overall height. This is called composite slab, where the galvanized steel decking profile is lowered onto the bottom of the steel beam ( sitting on the bottom flange ) instead of having it on top. This way, you can achieve composite slabs of at least 250mm height.

Comprehensive Detailing

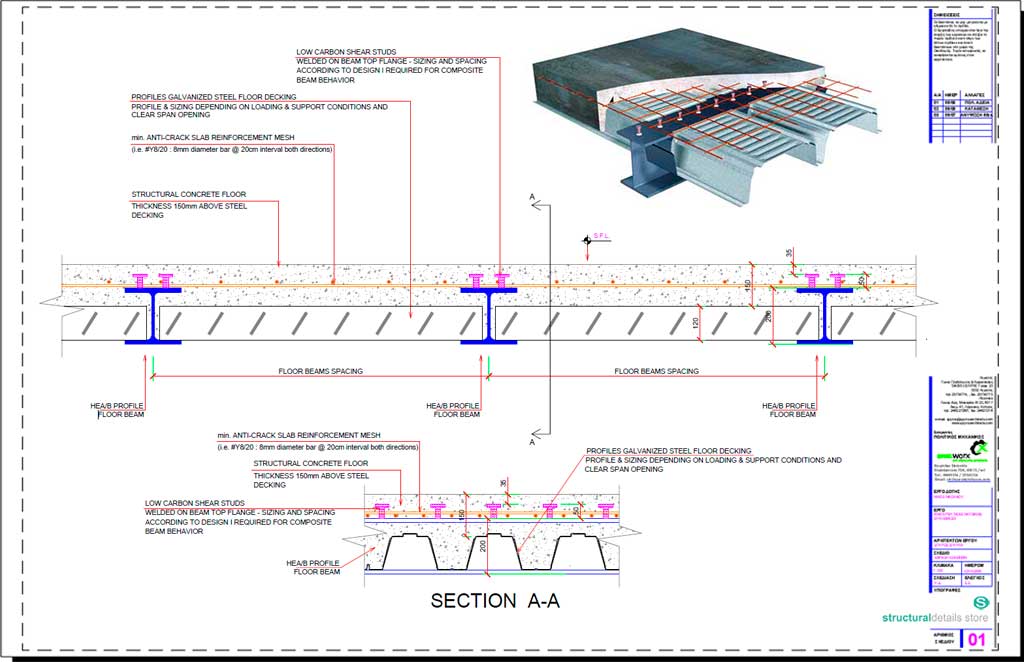

This comprehensive detailed drawing includes an HEA/B steel profile section for beam, multideck type galvanized steel decking, shear studs, anti-crack slab reinforcement on top of the steel beam and a minimum concrete cover.

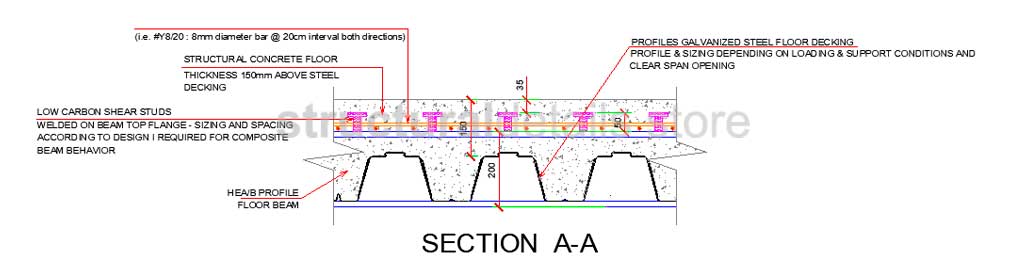

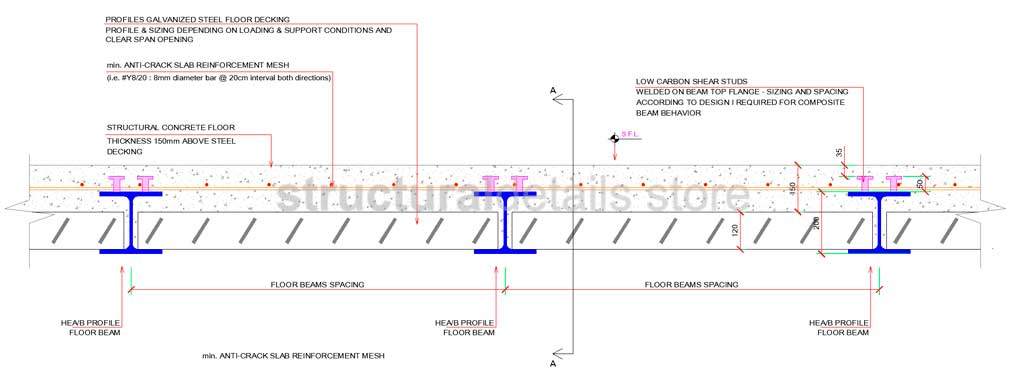

The composite slab is illustrated with a cross section through the slab and an elevation view. Perfect addition to any structural design library.

Use with any project

With this clear and detailed illustration of steel beam composite slab, the drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications.

You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.
