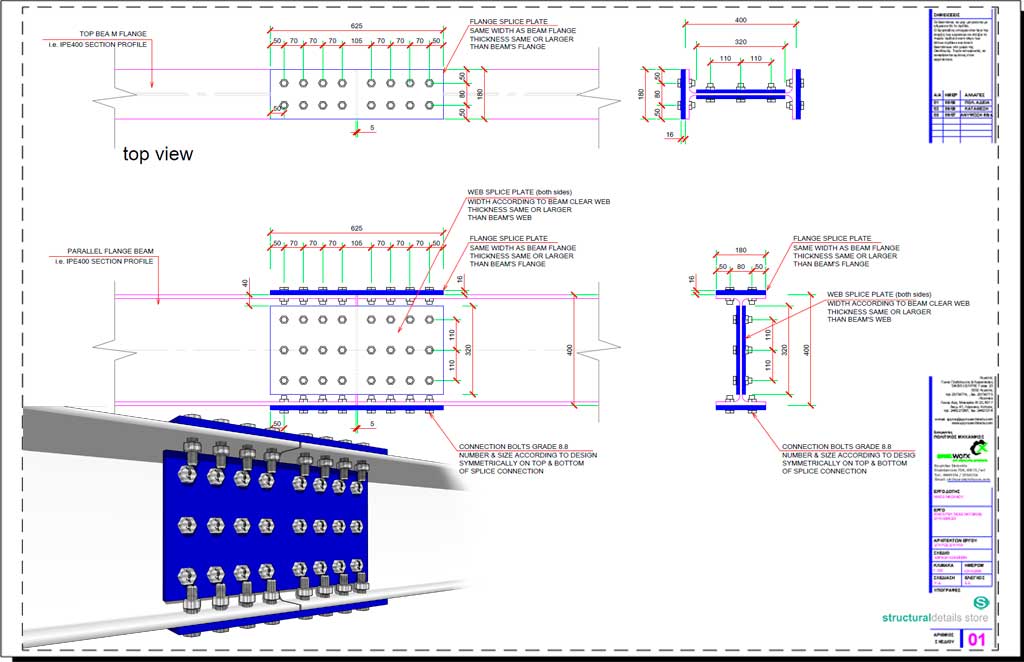

Steel Beam Bolted Plate Splice Connection Detail Drawing

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

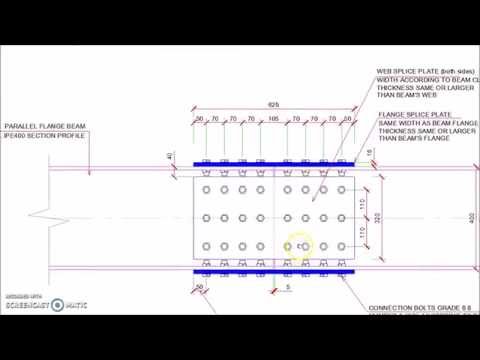

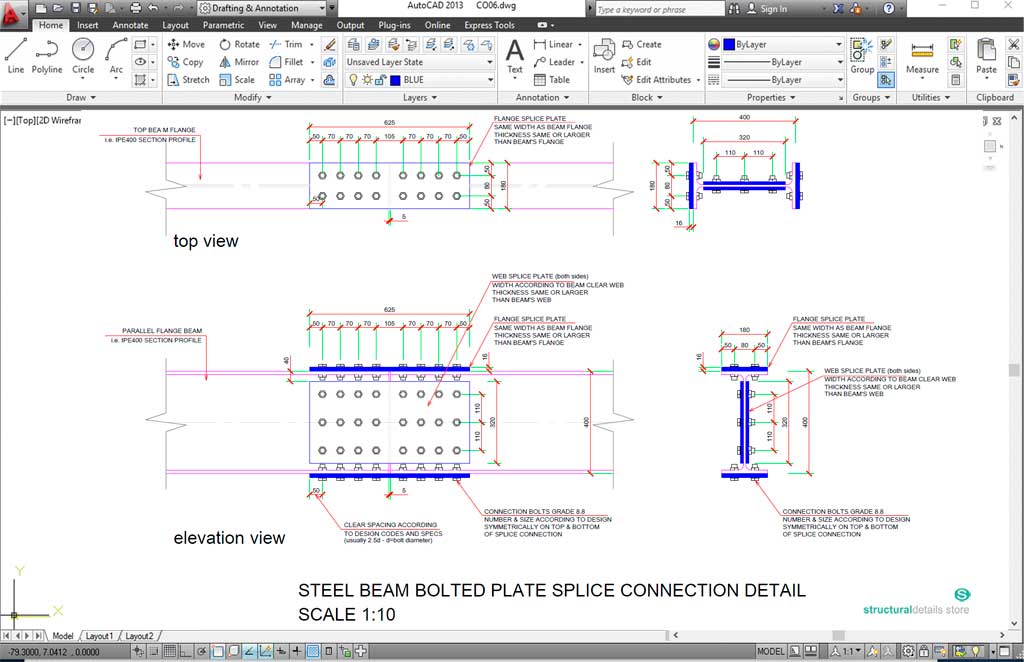

This is a CAD dwg drawing for a Steel Beam Bolted Plate Splice Connection Detail Drawing. Steel beam section profile used for this detail is a european section IPE400 ( 400mm beam depth and 180mm flange width ).

Detail can be very easily altered with simple CAD commands to fit any beam section according to your design.

Moment resisting beam connection detail that can be used either to extend the beam’s length ( connection to be made where moment forces are reduced according to design – usually at 1/3 of beam span for moment resisting frames ) or for a stub beam-column connection where the beam stub section is pre-welded onto the column and the splice connection is executed on construction site.
