Spiral Steel Staircase Detail

Spiral Steel Staircase Detail

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

CAD dwg drawing for a Spiral Steel Staircase Detail with a cantilevered tread step. Stairs with modular tread steps that can be rotated and/or moved on-site to match floor heights exactly.

Product includes CAD .dwg file, CAD .dxf file and PDF file formats. Fully unlocked & customizable

Complete CAD design solution

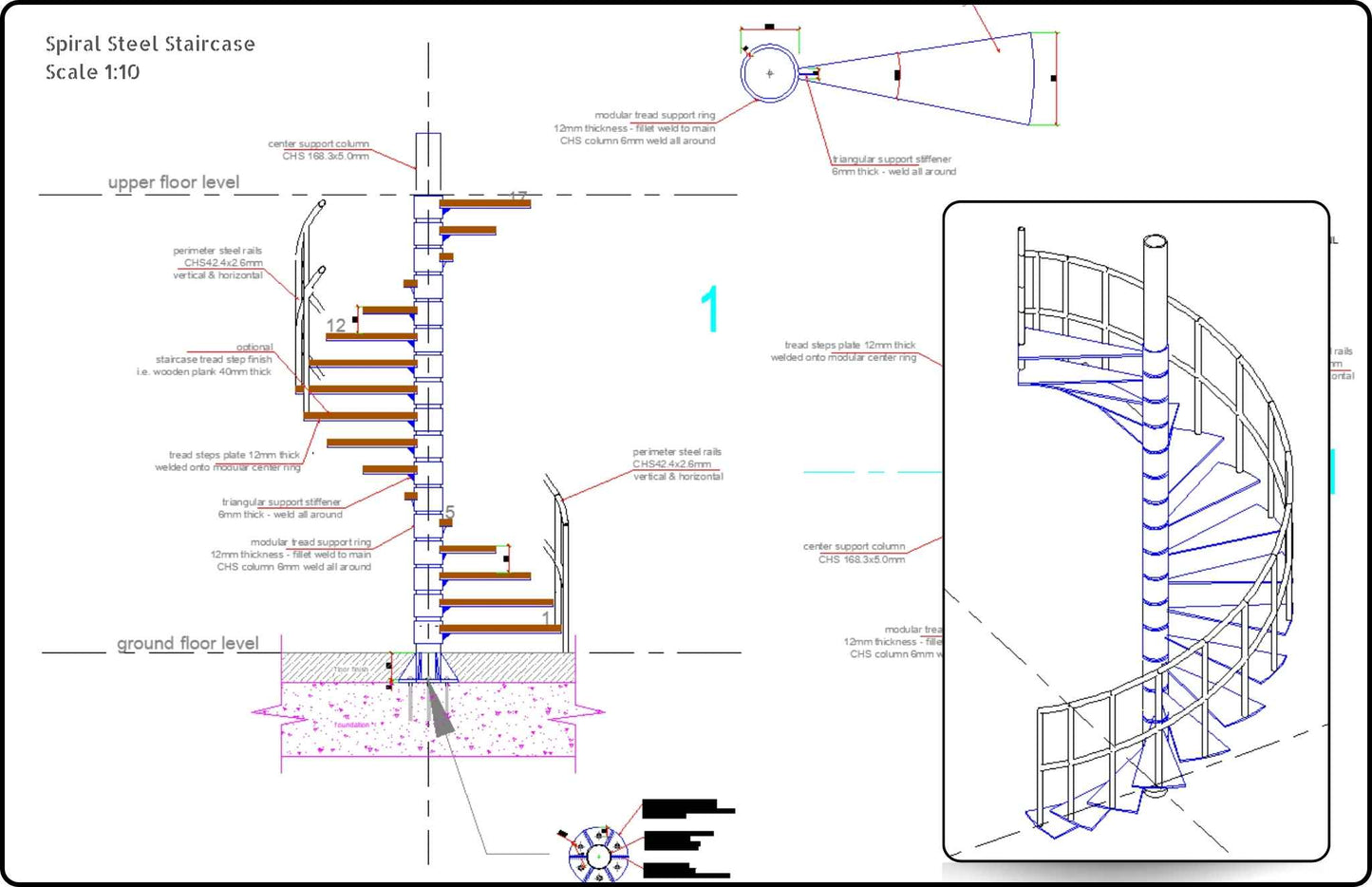

Detail includes center support column with connection details and ground floor foundation support detail.

Tread step finish is illustrated with a wooden plank 40mm thick but can be altered according to architectural design.

Modular Staircase

This is a modular design. Apart from the fixed center support CHS column, each step can be individually adjusted on-site to match the preferred height and rotation of the circular staircase.

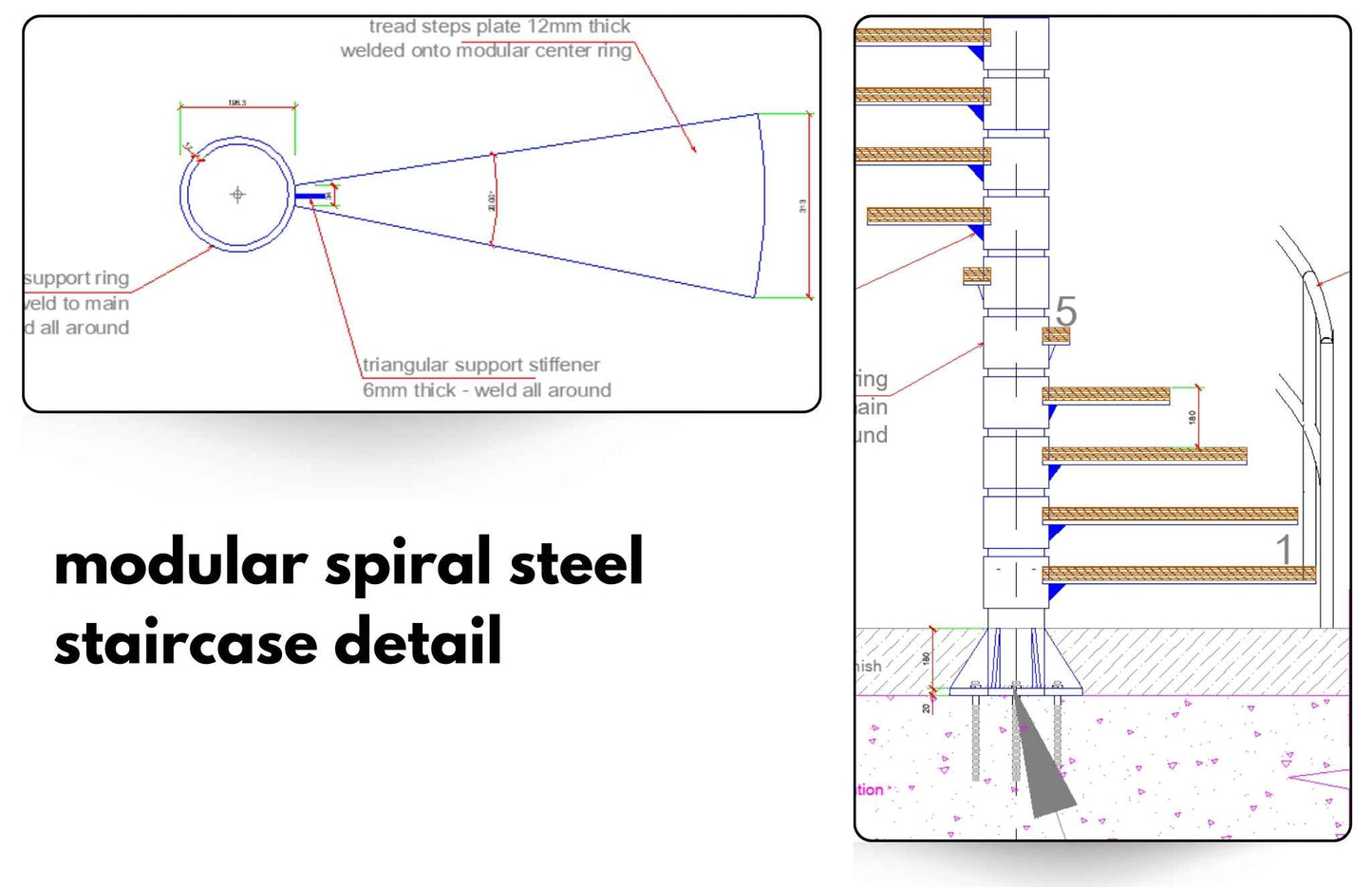

Each step consists of a steel plate welded onto a circular ring that is adjustable around the main circular post. After rotating to the right position it can be welded onto the CHS column.

Use with any project

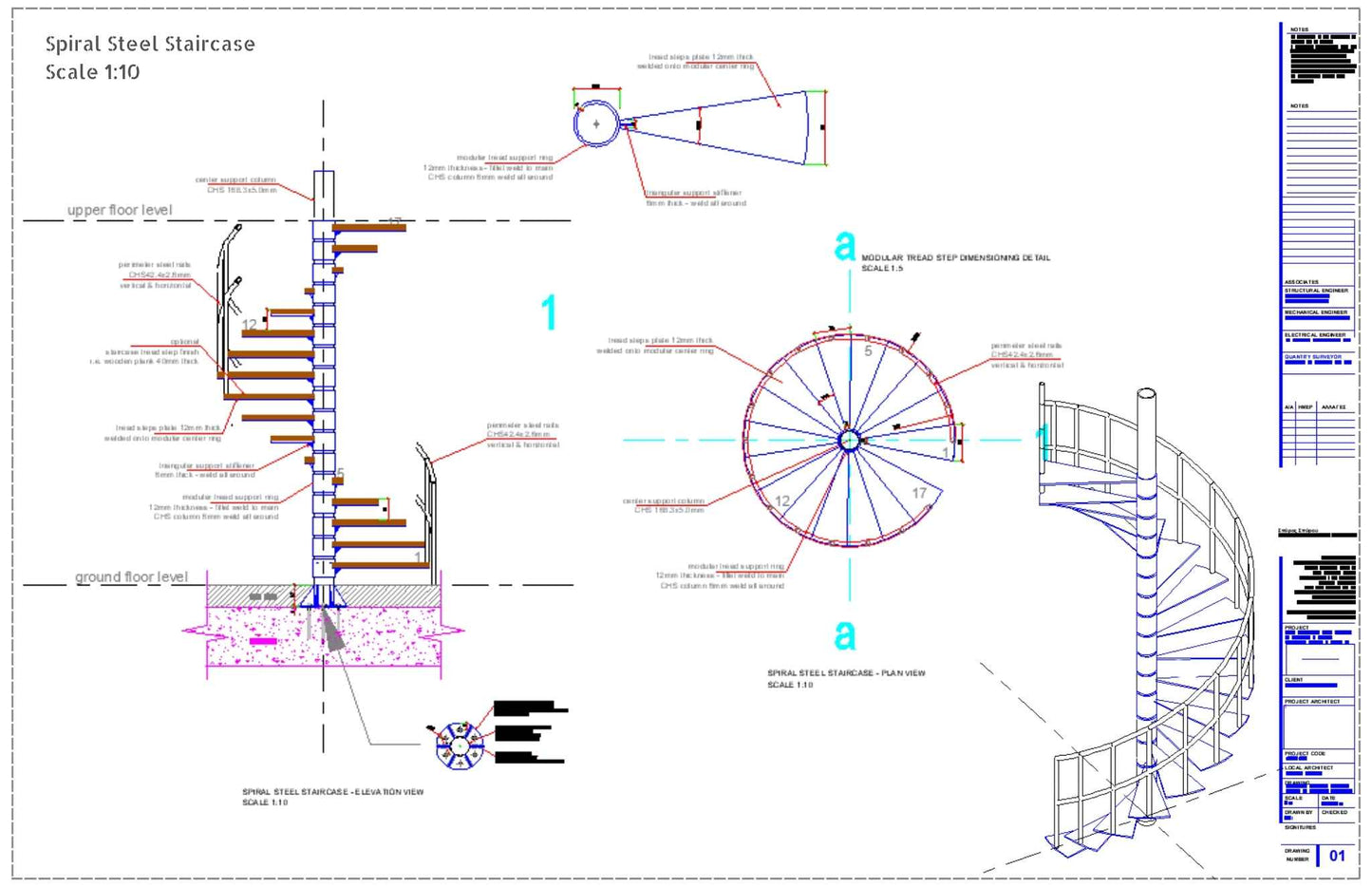

This comprehensive drawing provides a clear and detailed representation for constructing a modular circular staircase. Drawing includes, elevation and cross section view, 3D parametric view, plan view and tread step detailing.

The drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.
