Single CHS Stringer Straight Single Flight Steel Staircase Detail

Single CHS Stringer Straight Single Flight Steel Staircase Detail

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

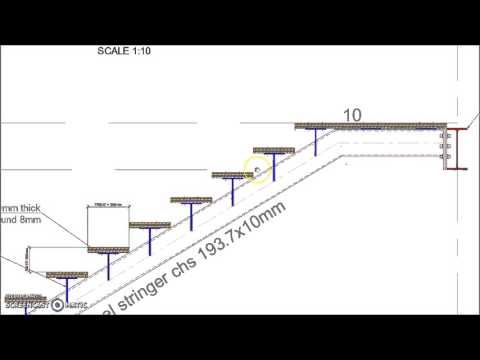

This is a precise detailed structural CAD drawing for a Single CHS Stringer Straight Single Flight Steel Staircase Detail. It will be a great addition to your library when designing steel stairs and it will save you a tremendous amount of time instead of designing it from scratch. It is a full comprehensive design detailed drawing including everything needed to fabricate this staircase.

Interior design staircase

Mainly used as an interior exposed steel staircase with all structural elements visible. Staircase a single CHS stringer in the middle of the staircase supported onto middle landing IPE profile main beam. Raised steps are supported on steel plate with a perpendicular riser wedge plate welded on top of the CHS stringer.

Tread step is presented with a wooden plank but can be changed to suit any design ( i.e steel plate, encase concrete step, marble step, glass step etc )

Comprehensive detailed design

This comprehensive drawing provides a clear and detailed representation of the staircase, complete with all necessary connection details. Includes middle landing, top floor main supporting beams connection details and ground floor foundation stringer support detail.

  • Tread step detailing
  • Stringer baseplate floor connection
  • Middle Landing detail support
  • Top floor support detail

The drawing is designed to be adaptable to any design project, ensuring that it can be used across a wide range of construction applications.

Raised Tread Steps

Raised treat steps are supported on top of a perpendicular triangular wedge plate, welded on top of the single CHS stringer beam and are visible above the staircase beam. Tread step finish is illustrated with a wooden plank 40mm thick but can be altered according to architectural design.
