SHS Beam Column Simple Fin Connection Detail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

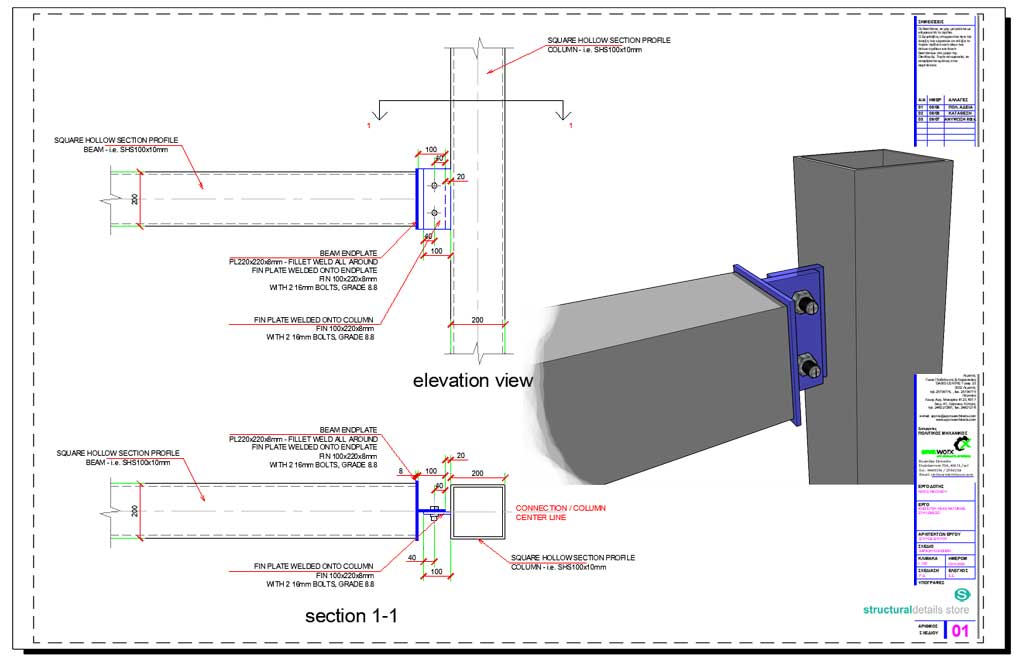

This is a CAD dwg drawing of an SHS Beam Column Simple Fin Connection Detail. Square hollow section ( SHS ) columns are a little more tedious in terms of connection types, since bolts cannot be tightened from the inside.

In order to achieve a simple connection between an SHS steel beam and an SHS column, one way is to weld a fin connection plate with a fillet weld onto the column and then use bolts on-site to connect to the SHS steel beam which in turn has an endplate and fin plate welded onto the end of the beam. This is considered to be a simple connection with no moment resistance. Only axial and vertical loads are being carried onto the steel column.
