Roof Steel Truss Supported on Masonry Wall with Concrete Chainage Beam

Roof Steel Truss Supported on Masonry Wall with Concrete Chainage Beam

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

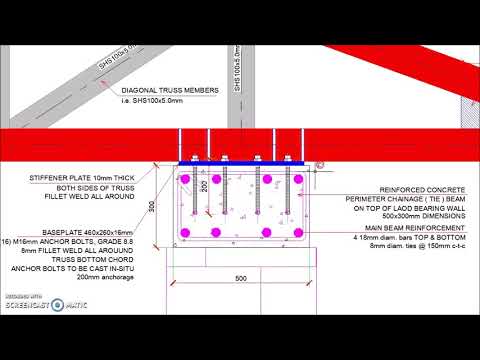

This is a CAD dwg drawing for a Roof Steel Truss Supported on Masonry Wall with Concrete Chainage Beam. Steel truss is consisted of SHS profile members. Bottom truss chord is connected with a moment resisting baseplate detail on top of reinforced concrete chainage tie beam.

Connection is achieved with a reinforced concrete chainage beam ( tie beam or link beam ) on top of the masonry wall. Masonry wall is a load bearing wall either with stone or bricks and acts as a structural member for the structure. The chainage beam acts as a good bondage member between the steel beam ( anchorage bolts ) and the masonry wall as well as gives stability and ties together the load bearing wall. Chainage beam is actually a ring bond beam running throughout the length of the masonry wall. It is derived from the french word  chaînage.

Steel truss is anchored down to the concrete chainage beam with a welded baseplate using anchorage bolts on both sides of the bottom chord. Stiffener plates are also used on both sides of the bottom chord.

Very useful detail when designing for existing buildings with steel frame additions / restorations.
