Reinforced Concrete Pile Caps Details

Reinforced Concrete Pile Caps Details

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

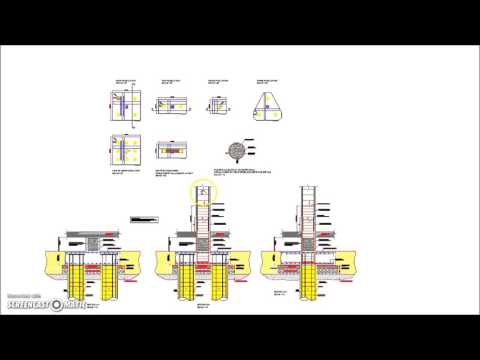

Looking for a way to save time and increase efficiency on your construction projects? This generic CAD structural detail drawing, of reinforced concrete pile caps, can be one of the most useful additions to your library. The drawing includes reinforced concrete footing piles with positioning layout plan views examples in relation to the supported column and its’ footing pile cap.

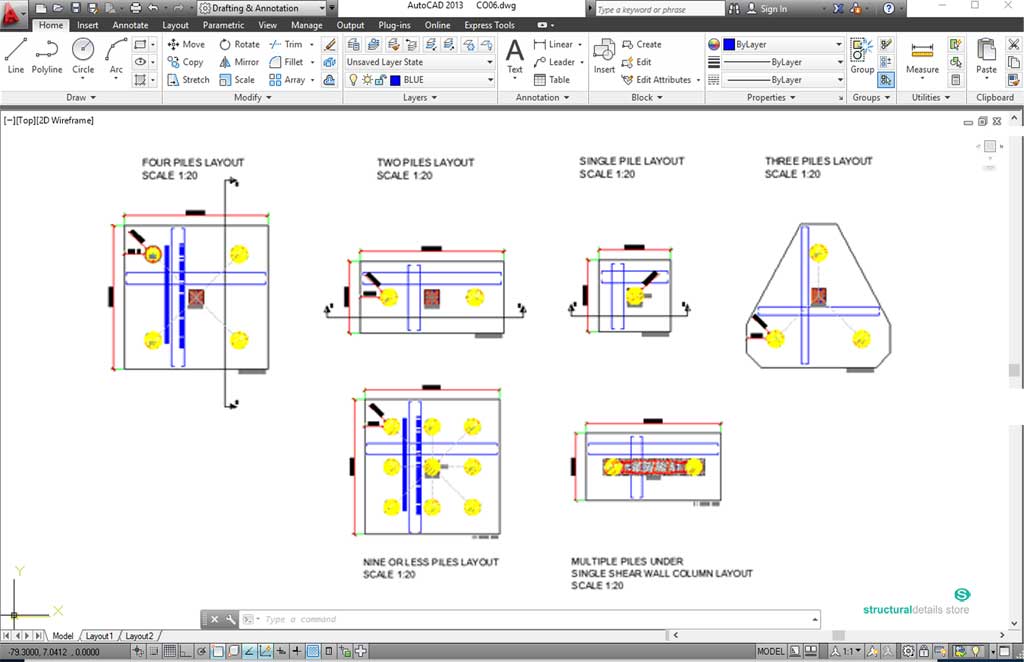

Several Pile Layouts

  • Single Pile Footing
  • Double Piles
  • Triple
  • Shear Wall
  • Quadruple &
  • Multiple Piles Footing

Pile Reinforcement Detail

Circular section pile reinforcement detailing. Designed as a generic detail to be used with every project. Fully adaptable to any size pile, ensuring that it can be used across a wide range of construction applications.

Comprehensive Detailed Drawing

By incorporating this drawing into your library, you’ll have a reliable and accurate resource at your fingertips for every reinforced concrete design.

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.
