Reinforced Concrete Inverted Upstand Beam Slab Support Details

Reinforced Concrete Inverted Upstand Beam Slab Support Details

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

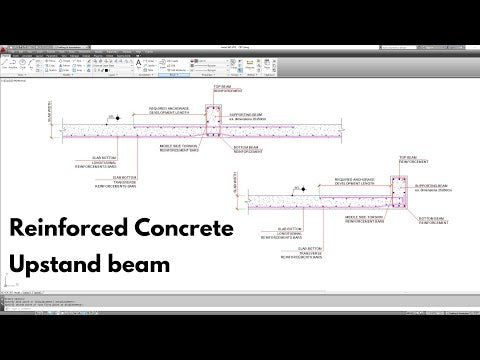

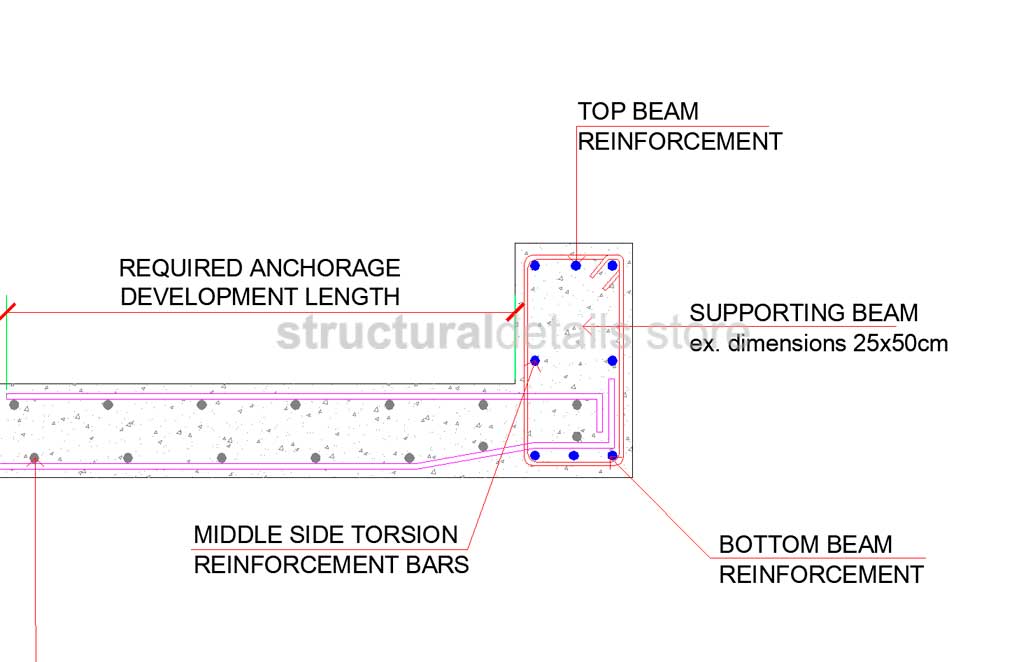

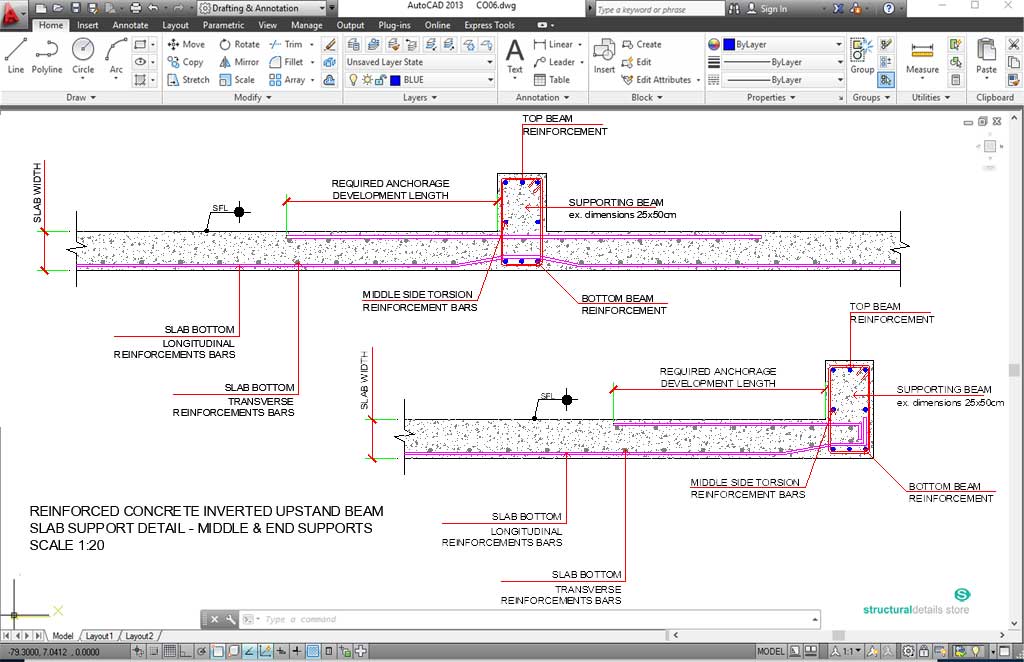

This is a precise detailed structural CAD drawing for a Reinforced Concrete Inverted Upstand Beam Slab Support. Two types of slab supports, middle continuous slab as well as end slab support. It can be used as a generic reinforcement detail and imported into any RC design projectto be used as a standard reinforcement detailing for construction.

Comprehensive Detailing

Fully-detailed 2D drawing of a concrete upstand beam, complete with accurate detailed reinforcement diagrams, showcasing the exact placement and specifications of each reinforcing bar. This level of detail allows for a thorough understanding of the design and ensures proper construction and safety.

Detail includes full reinforcement detailing for both the slab and inverted beam. Reinforcement and anchorage development length for the slab rebars. Detail is ready to be used as is, in any reinforced concrete structural drawings as a generic standard connection detail. It is an essential drawing for every structural engineer, architect or any other construction professional.

Use with any project

The drawing is designed to be adaptable to any reinforced concrete design project, ensuring that it can be used across a wide range of construction applications.

Up-stand beams are usually used on top floors, in order to give the architectural sense of flat slabs as well as to create an up stand roof perimeter wall, for insulation and finishes. It is not preferred in middle floor slabs as it will create up stands inside the living space that will need to be covered with deep floor finishes, thus creating extra unnecessary dead loads.

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.
