Reinforced Concrete Flat Slab Direct Steel Column Concealed Support

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

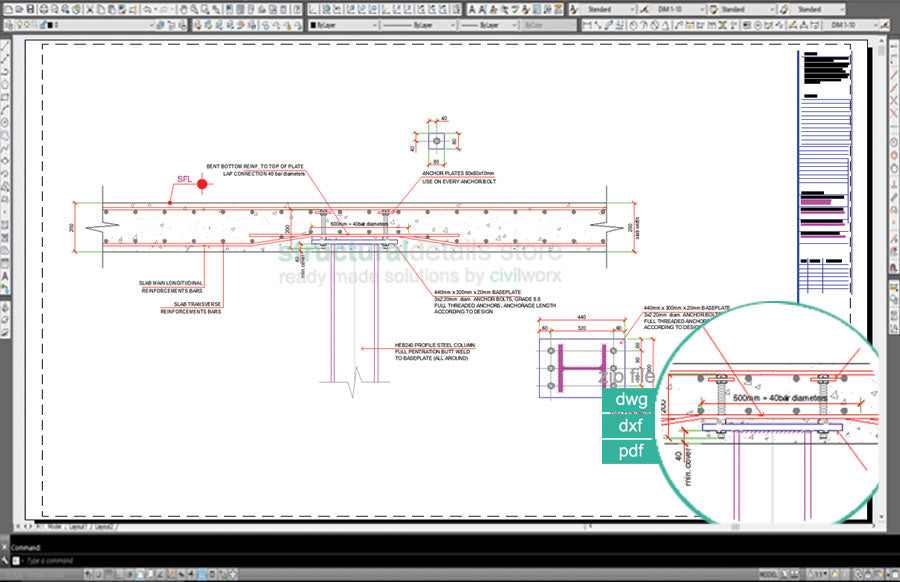

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

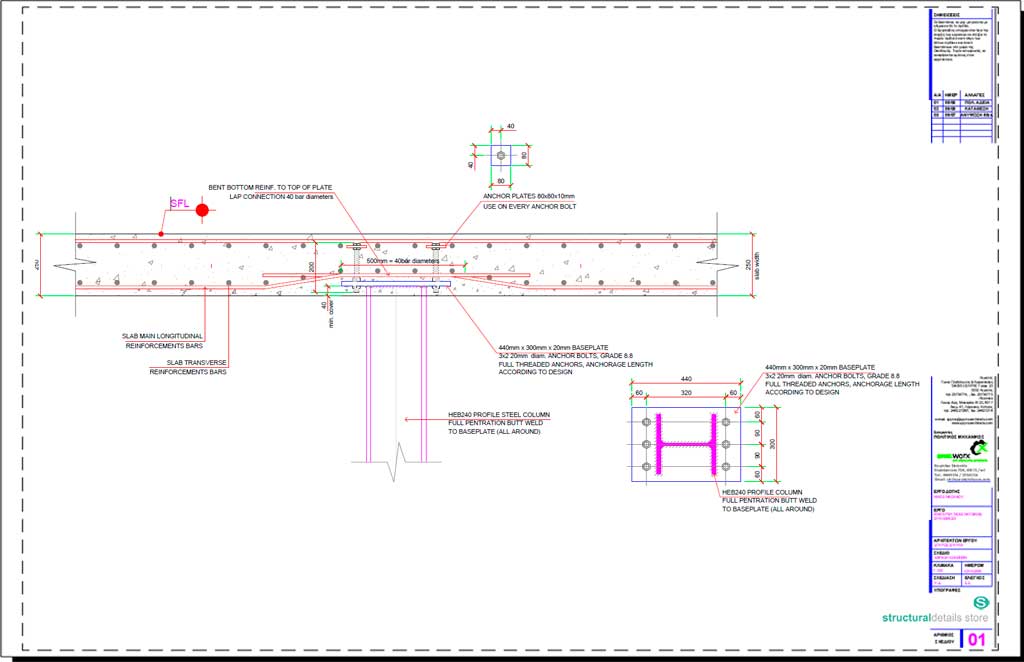

Use this is a CAD dwg drawing detail of a Reinforced Concrete Flat Slab Direct Steel Column Concealed Support with hybrid structures designs.

Connection is made concealed for aesthetic reasons inside the slab thickness. Flat slab directly supported onto steel column with the use of a baseplate and anchor bolts. Slab does not have a reinforced beam or concealed beam at the point of support, therefore proper design for punching shear has to be accounted for.

Usually used for small loading conditions. In the case where larger punching shear loads are in place, one can always introduce a concealed beam inside the slab and follow the same type of detailing for the steel column support.
