Reinforced Concrete Encased Steel Column Detail

Reinforced Concrete Encased Steel Column Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

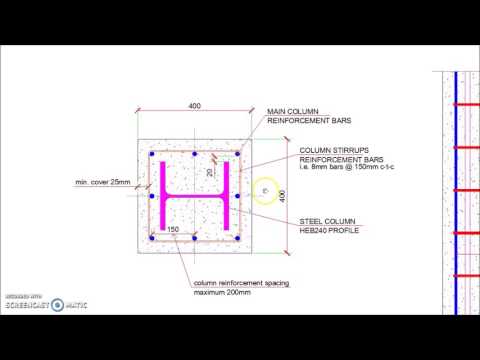

This is a CAD detail drawing for a Reinforced Concrete Encased Steel Column Detail. Composite column with an HEB240 steel profile section encased in reinforced concrete to make a square sized concrete column.

Detail includes cross section and elevation views with column reinforcement bars, stirrups, minimum cover dimensions. Useful detail when designing composite framed structures with steel columns/beams and reinforced concrete slabs and other members. Mainly used to reduce column sizes when required by the architectural design.

Reinforced Concrete and/or steel beams can be connected to this column to make up the structure frame. Supported slabs can be either regular reinforced concrete slabs or steel decking slabs or even composite slabs.
