Reinforced Concrete Constant Width Cantilever Slab Detail

Reinforced Concrete Constant Width Cantilever Slab Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a generic CAD dwg drawing of a Reinforced Concrete Constant Width Cantilever Slab Detail. Cantilever slabs need to be reinforced correctly in order to withstand all live and dead loads and transfer them into the supporting beam and adjacent slab. Reinforcement in the tension zone of the slab, where it effectively resists tensile forces, preventing cracking and failure, resisting all moment forces being created.

Comprehensive Detailing

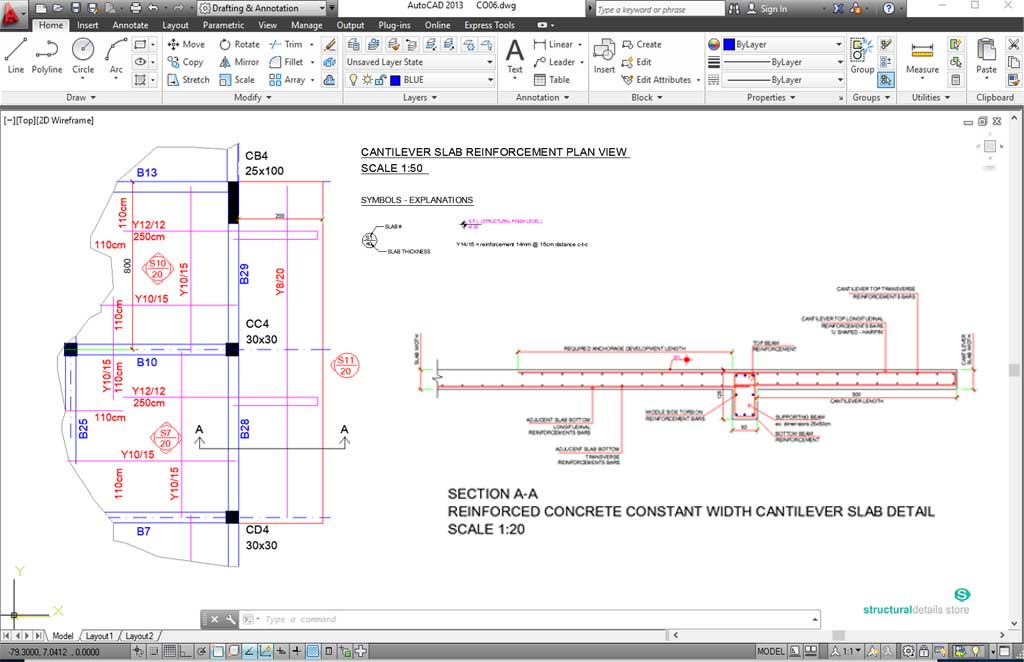

Comprehensive breakdown of the connection between a reinforced concrete cantileverd slab on a supporting beam and anchorage development within the adjacent slab. Drawing includes full reinforcement detailing illustraded both as a slab reinforcement plan view and reinforcement detailed cross section.

Slab Reinforcement plan view

Includes part of a generic slab plan view that includes a cantilevered slab, showing proper illustration of the reinforcement placed within the cantilever and adjacent slabs.

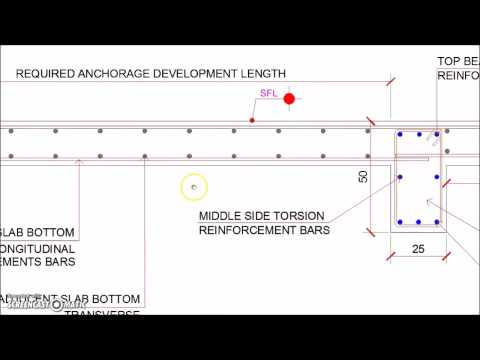

Cross Sectional Reinforcement Detailing

Fully detailed cross sectional view of the cantilever slab and the necessary reinforcement. This is a generic detail that can be incorporated into any reinforced concrete design.

Slab is reinforced with top tensile U-shaped ‘hairpin’ top longitudinal reinforcement bars as well as transverse bars. Top reinforcement needs to properly anchoraged within the adjacent slab.

View full details
