Reinforced Concrete Column Jacketing Detail

Reinforced Concrete Column Jacketing Detail

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

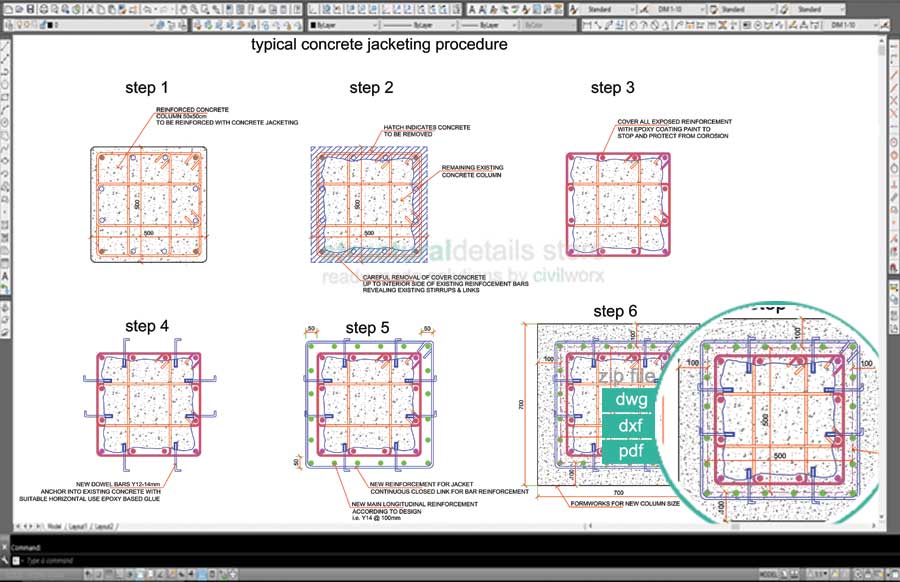

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

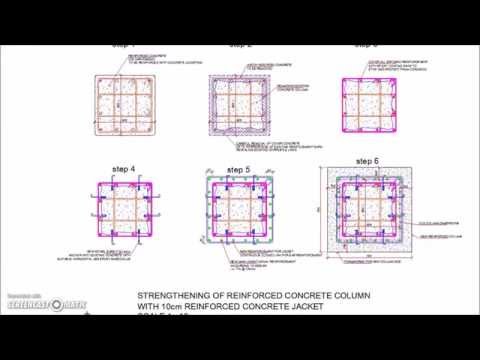

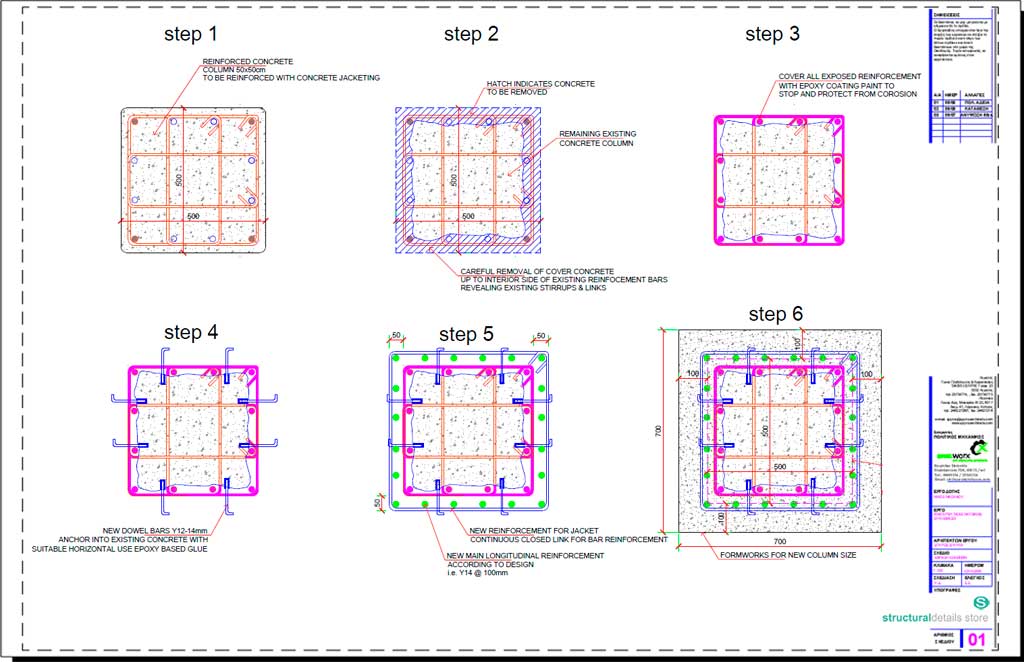

CAD dwg drawing for a Reinforced Concrete Column Jacketing Detail. 6 steps detailed description of the procedure for retrofitting and strengthening a concrete column with a concrete column jacket addition ( adding extra reinforcement and extending column’s dimensions ). Such in depth detail description is essential together with every structural retrofitting design to show and explain proper and correct way of executing the jacketing.

  • column jacketing on all sides
  • 6 steps procedure detailing
  • removal of existing concrete cover
  • applying anti-corrosion coat
  • dowel bars anchorage
  • new stirrups links and main reinforcement
