Reinforced Concrete Beam Direct Steel Column Exposed Support

Reinforced Concrete Beam Direct Steel Column Exposed Support

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

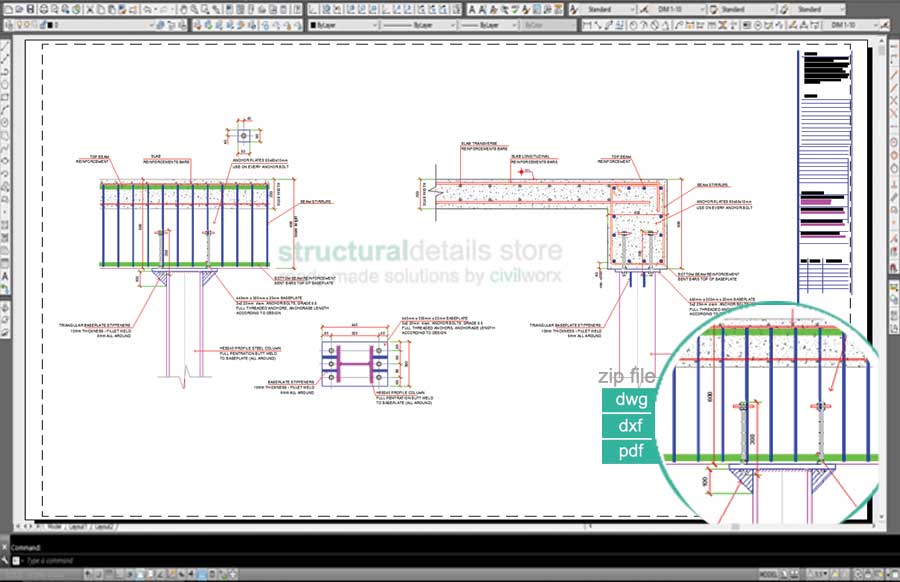

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

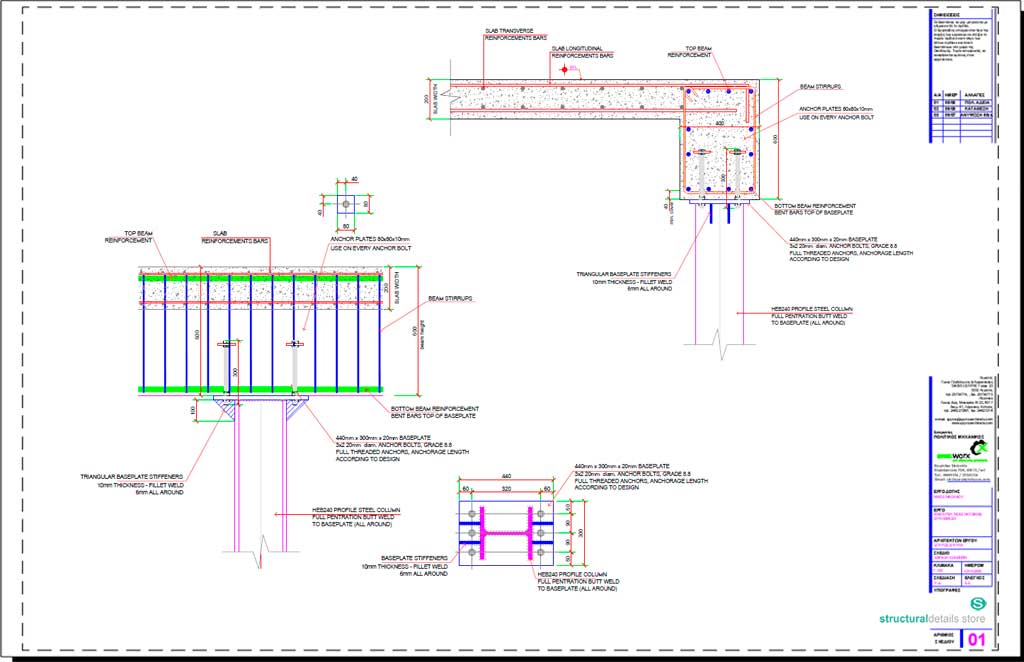

This is a CAD dwg drawing detail for a Reinforced Concrete Beam Direct Steel Column Exposed Support. In this detail a regular concrete beam and slab are supported directly on top of a steel column ( HEB steel profile ) with an exposed connection type under the beam itelsf.

Useful detail when designing for hybrid / composite structures, where for architectural aesthetic reasons the connection between the two members can be visible under the structural beam.

Anchor bolts are embedded into the concrete beam prior to casting. Additional anchorage smaller plates are illustrated on every anchor bolt to maximize cohission between the two materials in the connection. Plate and steel column triangular stiffeners are also added to the detail.

Full detailing of both steel member and connection as well as reinf. concrete beam reinforcement to accomodate all connection details. Both sides cross sections of the connection are designed.
