Reinforced Concrete Beam Column End Support Detail

Reinforced Concrete Beam Column End Support Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a way to save time and increase efficiency on your construction projects? This generic CAD structural detail, of a reinforced concrete beam end support on to an RC column, can be one of the most useful additions to your library.

Comprehensive Detailing

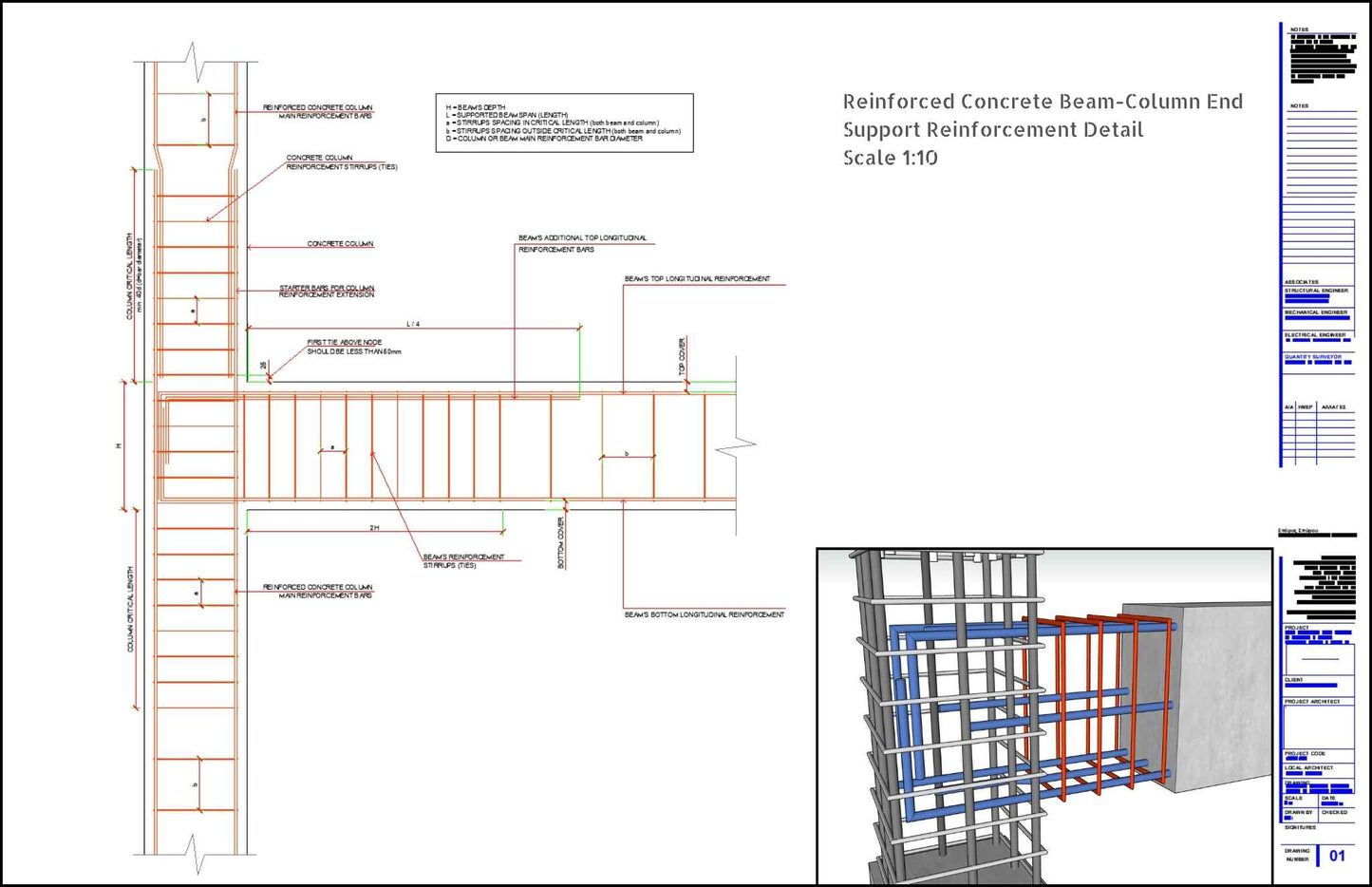

Comprehensive breakdown of the connection between a reinforced concrete beam and column at the end of the structural frame.

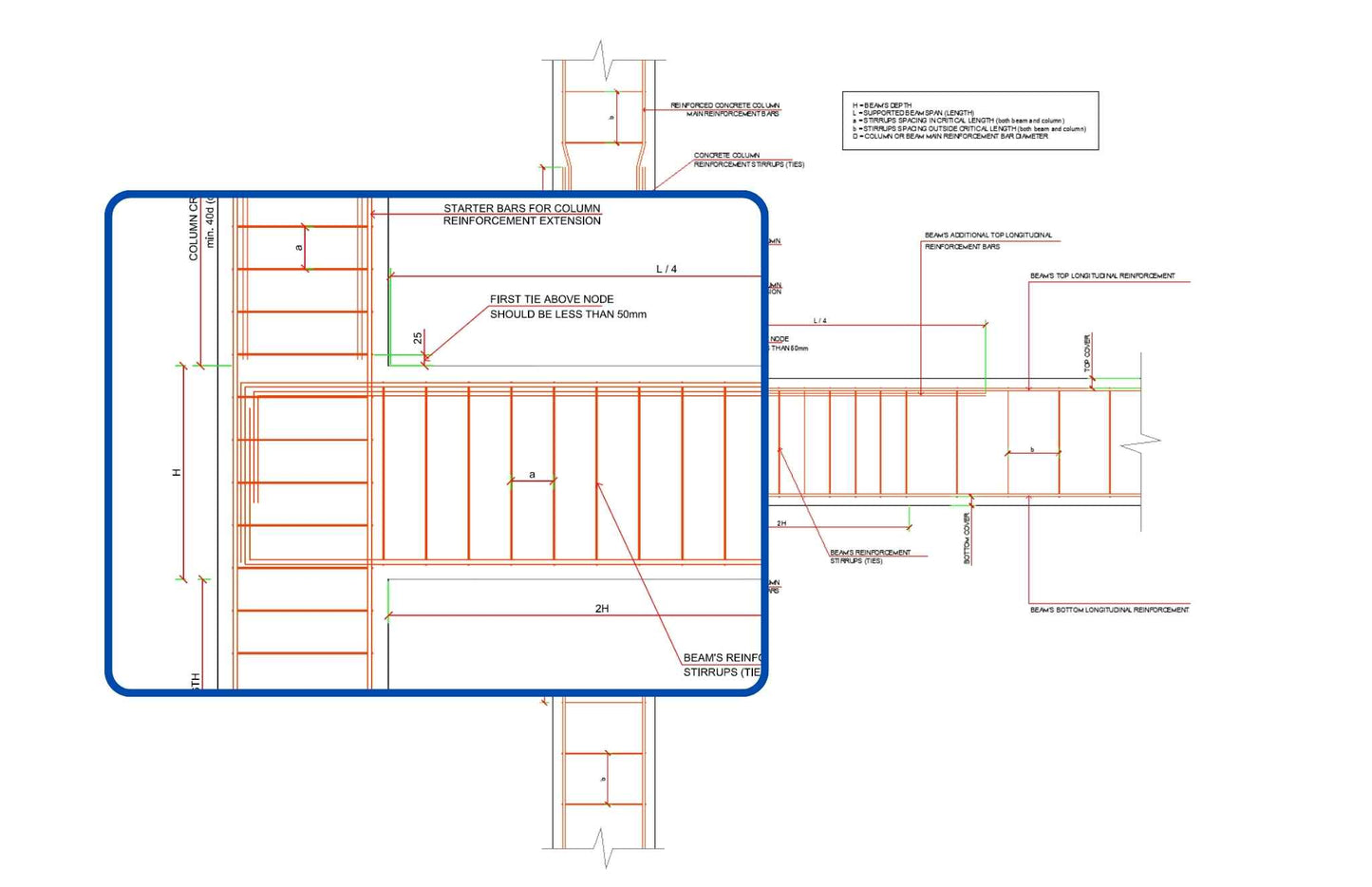

Complete with top and bottom beam reinforcement bar details, column reinforcement bar information, starters, stirrups, additional beam top longitudinal reinforcement, member’s critical length, and anchorage and reinforcement concrete bond requirements.

This detailed drawing is an essential addition to your design toolkit. Use it to ensure your structural details are up to code and impress your clients with the level of detail and professionalism you bring to every project.

Use with any project

Designed as a generic detail to be used with every project. Fully adaptable to any reinforced concrete design, ensuring that it can be used across a wide range of construction applications.

By incorporating this drawing into your library, you’ll have a reliable and accurate resource at your fingertips for every reinforced concrete design.

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.
