Rectangular Reinforced Concrete Column Section Details

Rectangular Reinforced Concrete Column Section Details

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

Looking for a way to save time and increase efficiency on your construction projects? Grab these adaptable CAD reinforcement detailed cross sectional drawings, for several rectangular reinforced concrete column sizes and use them again and again with all your reinforced concrete design projects.

Complete Reinforced Column Sections

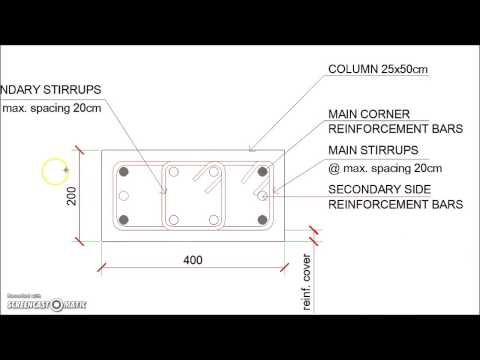

Fully detailed cross sectional structural reinforcement drawings for different rectangular sized concrete columns. Sizes illustraded are for 20×30cm, 20×40cm, 25×50cm, 25×70cm & 25X90cm rectangular columns. With simple CAD commands one can very easily create many more sizes in no time.

This detailed drawing is an essential addition to your design toolkit. Use it to ensure your structural details are up to code and impress your clients with the level of detail and professionalism you bring to every project.

Use with any project

Designed as a generic detail to be used with every project. Fully adaptable to any reinforced concrete design, ensuring that it can be used across a wide range of construction applications.

Multiple file formats available:

  • CAD .dwg file
  • CAD .dxf file
  • PDF
  • unlimited use, unlocked, fully customisable

By incorporating this drawing into your library, you’ll have a reliable and accurate resource at your fingertips for every reinforced concrete design.

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.
