Planter on cantilever slab edge reinforcement detail

Planter on cantilever slab edge reinforcement detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

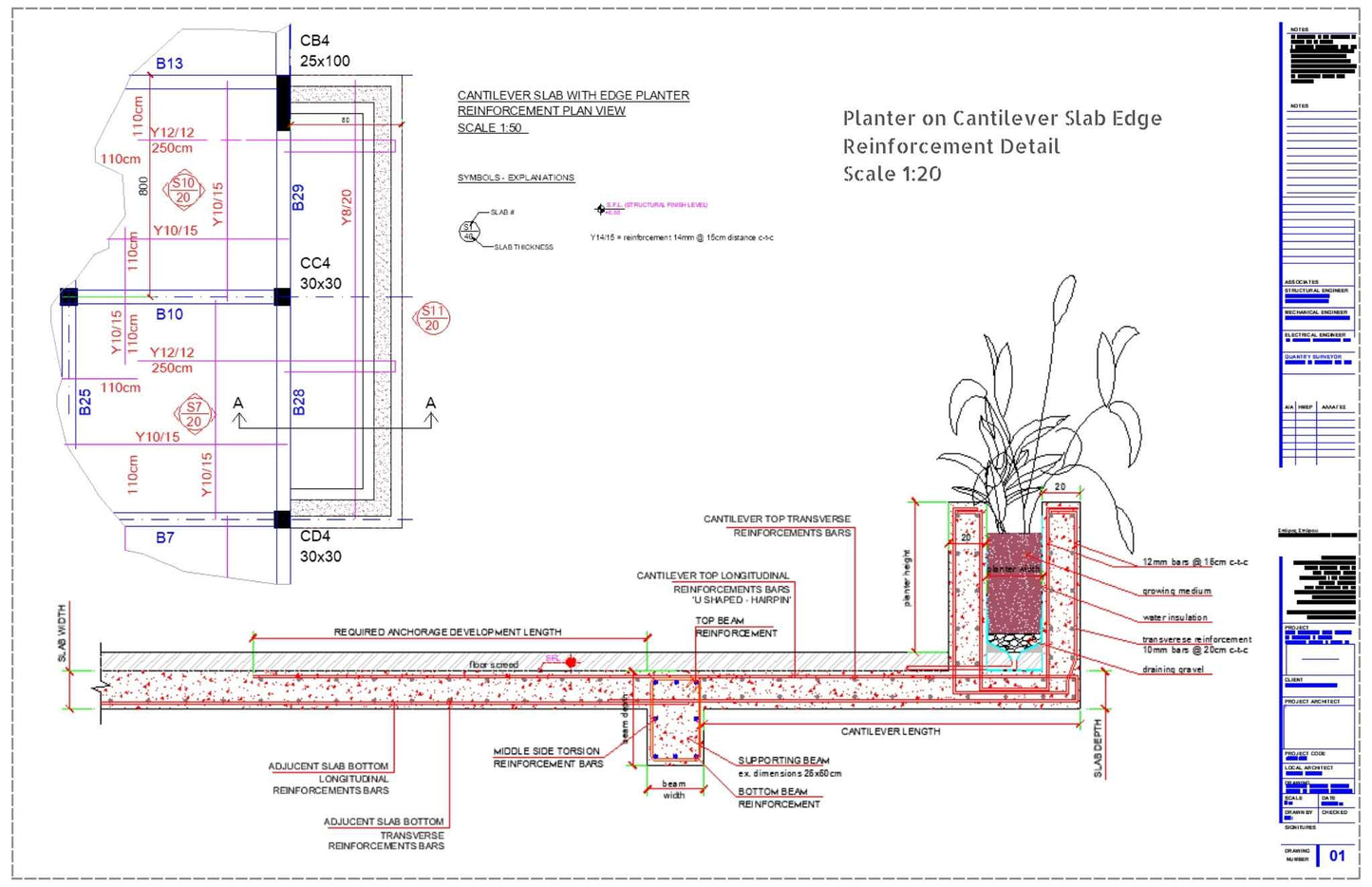

Looking for a way to save time and increase efficiency on your construction projects? This is a  generic fully detailed CAD structural detail drawing for a planter on cantilever slab edge. Plan view and cross section reinforcement detailing.

It’s perfect for balconies, terraces, and rooftop gardens, ensuring both structural stability and a functional water management system for your planters.

Comprehensive Detailing

Not only does this CAD drawing depict the essential reinforcement for the planter itself, but it also delves into the critical layers necessary within the planter for proper water insulation. This eliminates the need for you to spend hours researching and drafting these details from scratch, allowing you to focus on the bigger picture of your design project.

Use with any project

Save valuable time and ensure structural integrity with our professionally-drafted CAD drawing, “Planter on Cantilever Slab Edge Reinforcement Detail.” This comprehensive resource provides meticulous reinforcement detailing for a concrete planter supported by a cantilevered slab.
