Mat Spread Foundation Cross Section Detail

Mat Spread Foundation Cross Section Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

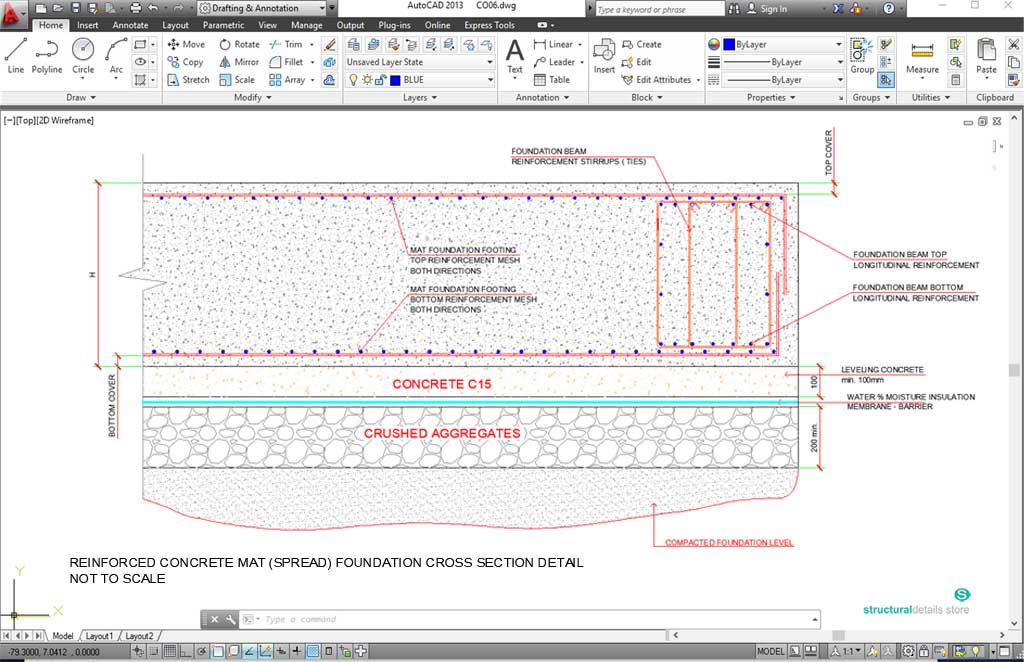

Reinforcement detailed CAD drawing of a mat spread shallow foundation with reinforcement foundation beams. Ready to be used with any project.

Detail includes:

  • reinforcing enclosed foundation beam
  • top & bottom spread footing mesh reinforcement
  • reinforcing beam longitudinal bars
  • ties – links – stirrups
  • leveling concrete layer
  • aggregates & water moisture barrier

Get this drawing detail in dwg, dxf and pdf formats, use it with your projects and save yourself valuable time.

Mat spread foundation is often used when dealing with soft soil situations in order to spread the loading uniformly all over the foundation plan. In some cases mat spread foundation is also less expensive since excavations, form works and landfills are omitted.
