Inclined Steel Beam on Top of SHS Steel Column Connection Detail

Inclined Steel Beam on Top of SHS Steel Column Connection Detail

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a downloadable CAD dwg drawing of an Inclined Steel Beam on Top of SHS Steel Column Connection Detail.

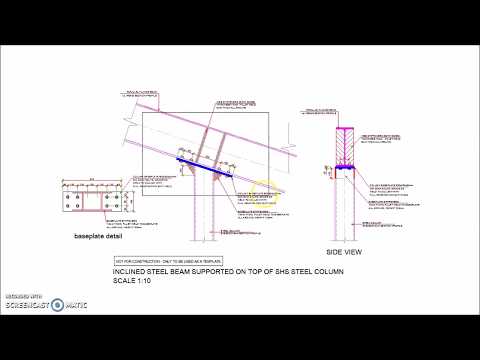

Moment connection type detail of an IPE400 steel beam connection on top of an SHS steel column with endplate and plate stiffeners. Both elevation view and side view as well as endplate ( baseplate ) detailing together with welding specifications.

Used for providing beam continuity and maximizing moment resistance at the connection. Widely used for cantilever roof ( inclined / sloped ) beams where beam continuity is extremely important.
