Inclined Steel Beam Column Endplate Haunch Connection

Inclined Steel Beam Column Endplate Haunch Connection

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

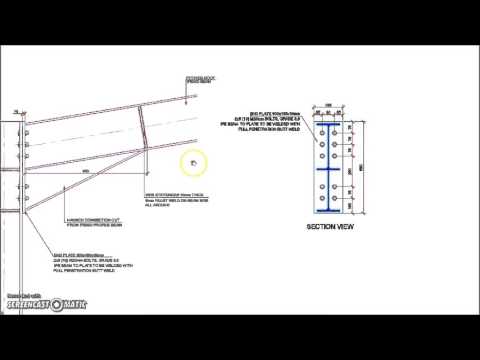

Looking for a CAD detail drawing for an inclined roof steel beam to steel column haunch connection? This powerful resource provides a comprehensive and accurate illustration of a full moment resisting connection, between a roof rafter steel beam and end column, with a bolted endplate connection, haunch connection reinforcement and column and beam stiffener plates.

This drawing provides a comprehensive and detailed connection template, allowing you to seamlessly integrate this connection into your structural designs. By utilizing this ready-made solution, you can save significant time and effort typically spent on creating accurate and efficient connections, ultimately enhancing the overall productivity of your projects.

Fully Detailed Connection Drawing

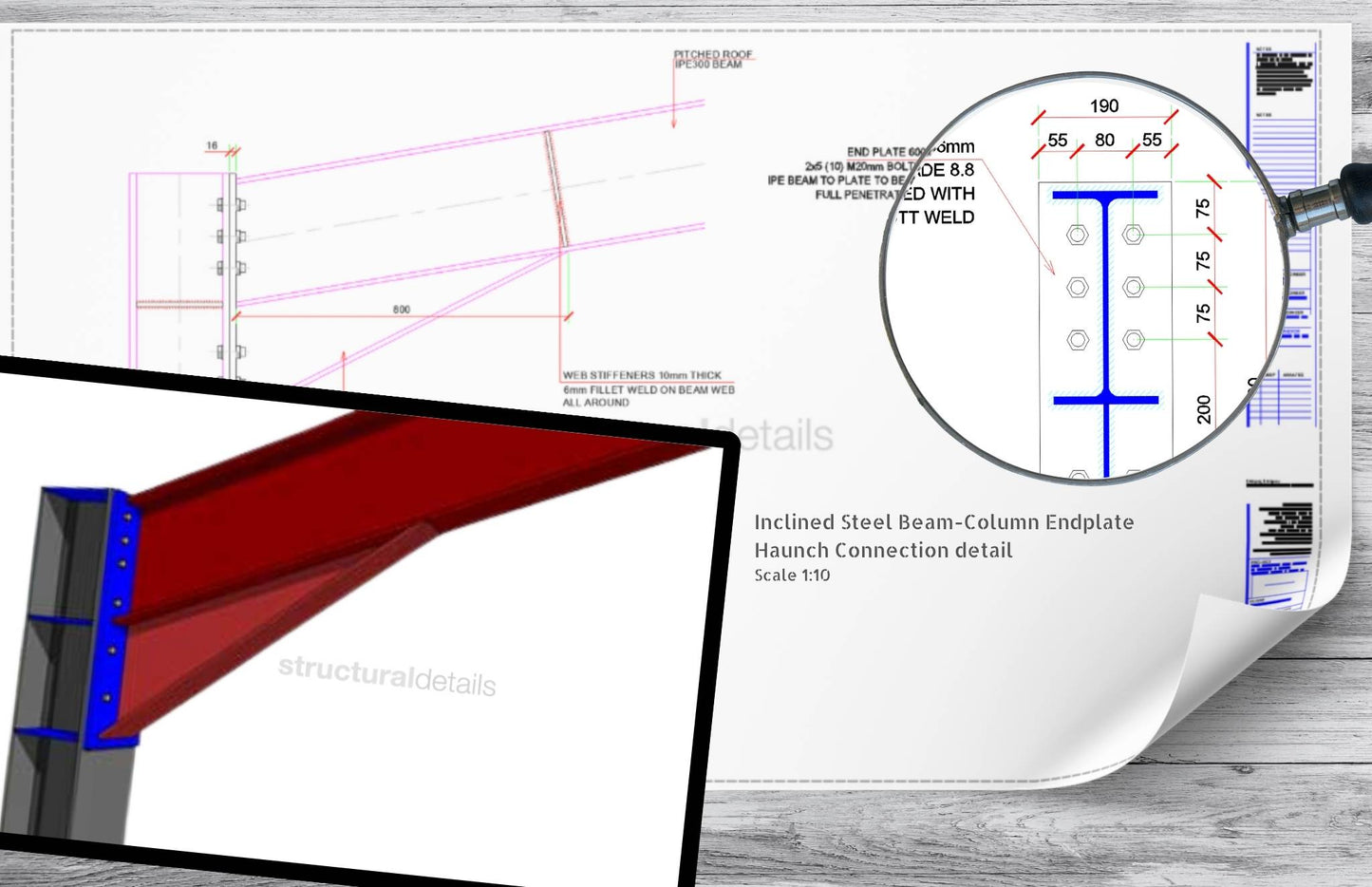

This comprehensive connection drawing includes complete dimension detailing, endplate thickness and sizing, bolts grade, diameter and position, welding specifications, column and beam web stiffener size and welding, haunch sizing with elevation and cross section views.

This type of connection is usually used for industrial and/or commercial facilities with large spans. Haunch reinforcement is used to increase moment resistance at the connection point for moment resisting portal frames.

Use with any project

Designed with adaptability in mind, this connection detailed drawing can be effortlessly incorporated into a wide range of designs. Whether you’re working on a commercial building, a residential structure, or an industrial facility, this drawing is purposefully designed to cater to your diverse needs.

You can eliminate the need for extensive online research or manual sketching of each detail. This drawing serves as a reliable reference point, allowing you to swiftly implement this connection in your projects with confidence.
