Inclined Roof Reinforced Concrete Beam Column Frame Joint Connection Detail

Inclined Roof Reinforced Concrete Beam Column Frame Joint Connection Detail

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

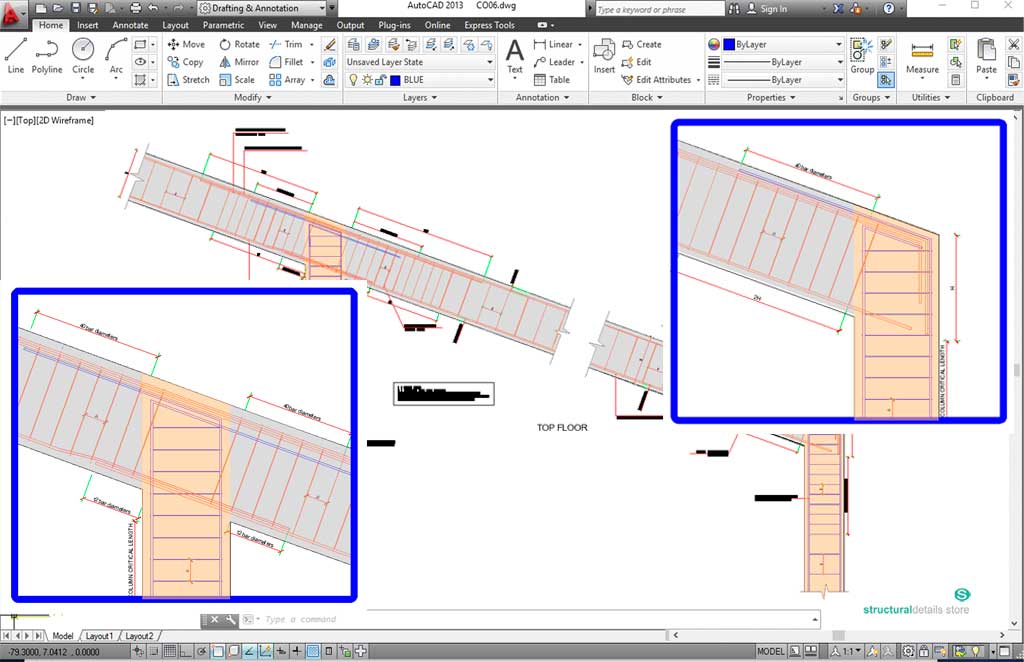

This CAD dwg drawing for Inclined Roof Reinforced Concrete Beam Column Frame Joint Connection Detail, is an essential detail showing correct reinforcement placement at the building’s top roof floor, with inclined beam-column frame joints.

Column reinforcement does not continue to a floor above, therefore needs to be anchored together with the beam’s inclined reinforcement to ensure full moment resistance capacity especially for earthquake designs.

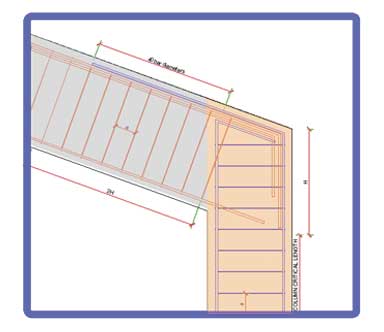

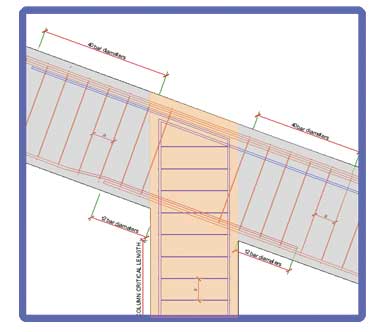

Detail includes middle frame and end frame supports. Essential CAD detail for reinforced concrete top floor beam-column connection. Includes both middle span and end frame connection supports.
