High Retaining Wall with Bracing Columns Detail Drawing

High Retaining Wall with Bracing Columns Detail Drawing

€10,00 EUR
€10,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

Ready-to-use structural CAD detail. Save hours of drafting time.

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

All drawings are prepared using the metric system.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

For high soil retaining designs, when every else fails, this type of High Retaining Wall with Bracing Columns Detail Drawing, can be a life saver. Get this CAD dwg drawing ready designed detail to use when all other types of retaining walls simply cannot do or designs come out to be too expensive or to difficult.

This design has an overall soil retaining height of 5.50m with reinforced concrete columns bracing at 4.0m intervals. The wall here is supported horizontally ( and not as a vertical cantilever wall ) and is supported from the columns on the left and right. Main reinforcement is considered to be the horizontal reinforcement. The wall is actually designed as a 2-way slab ( two way slab ).

All necesary designs loadings have been incorporated including earthquake loads.

Purchased contents include :

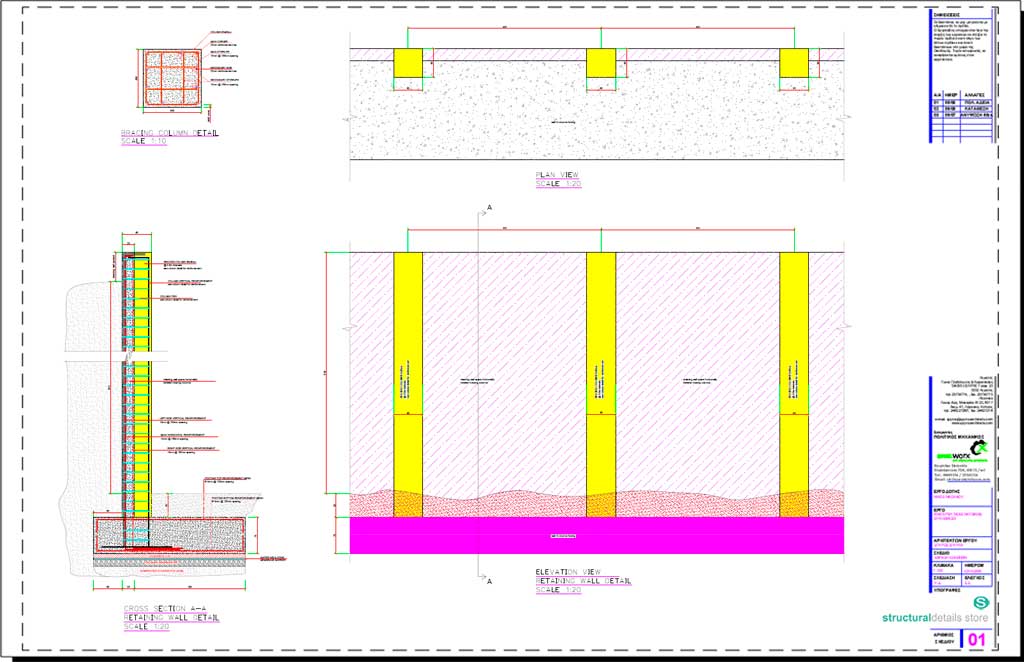

  • plan view, elevation view & cross section
  • bracing column reinforcement detail
  • retaining wall, bracing columns & footing detailing
    View full details

    Full Description

    For high soil retaining designs, when every else fails, this type of High Retaining Wall with Bracing Columns Detail Drawing, can be a life saver. Get this CAD dwg drawing ready designed detail to use when all other types of retaining walls simply cannot do or designs come out to be too expensive or to difficult.

    This design has an overall soil retaining height of 5.50m with reinforced concrete columns bracing at 4.0m intervals. The wall here is supported horizontally ( and not as a vertical cantilever wall ) and is supported from the columns on the left and right. Main reinforcement is considered to be the horizontal reinforcement. The wall is actually designed as a 2-way slab ( two way slab ).

    All necesary designs loadings have been incorporated including earthquake loads.

    Purchased contents include :

    • plan view, elevation view & cross section
    • bracing column reinforcement detail
    • retaining wall, bracing columns & footing detailing
