Green Reinforced Concrete Roof Slab Detail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

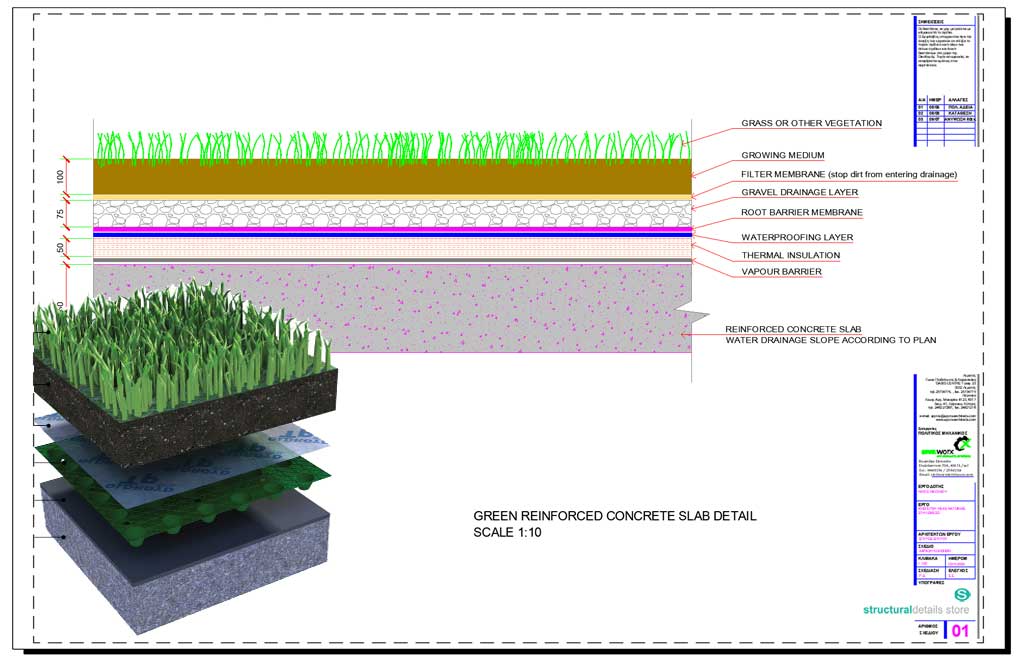

This is a CAD dwg drawing for a Green Reinforced Concrete Roof Slab Detail. Detailing of all necessary sublayers on top of the concrete roof or veranda slab to achieve proper insulation and drainage for a sedum roof garden.

Detail includes all layers in their respective installation order that need to be installed on top of the reinforced concrete slab (i.e. waterproofing, roots barrier, drainage layer, filter membrane to keep dirt from entering the drainage etc). Detail also indicates suggested layer thickness for slab, drainage & growing medium.

Green garden roof or veranda with either grass or any other small rooted vegetation or plants. Detail is not applicable for large heavy root plants.

IMPORTANT : Proper and sufficient roof slope must be present in order for the water to escape through the drainage layer. Slope is usually achieved either by the concrete slab itself or with an additional minimum thickness screed layer on top of the structural slab.
