Exterior Masonry Brick Wall Foundation Detail

Exterior Masonry Brick Wall Foundation Detail

€7,00 EUR
€7,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

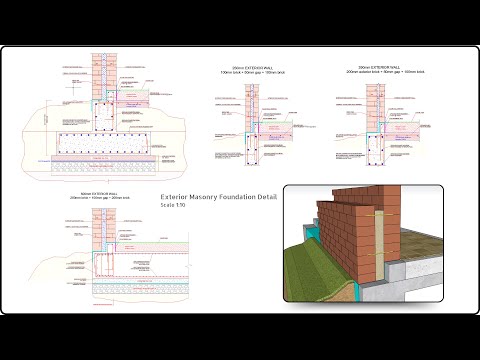

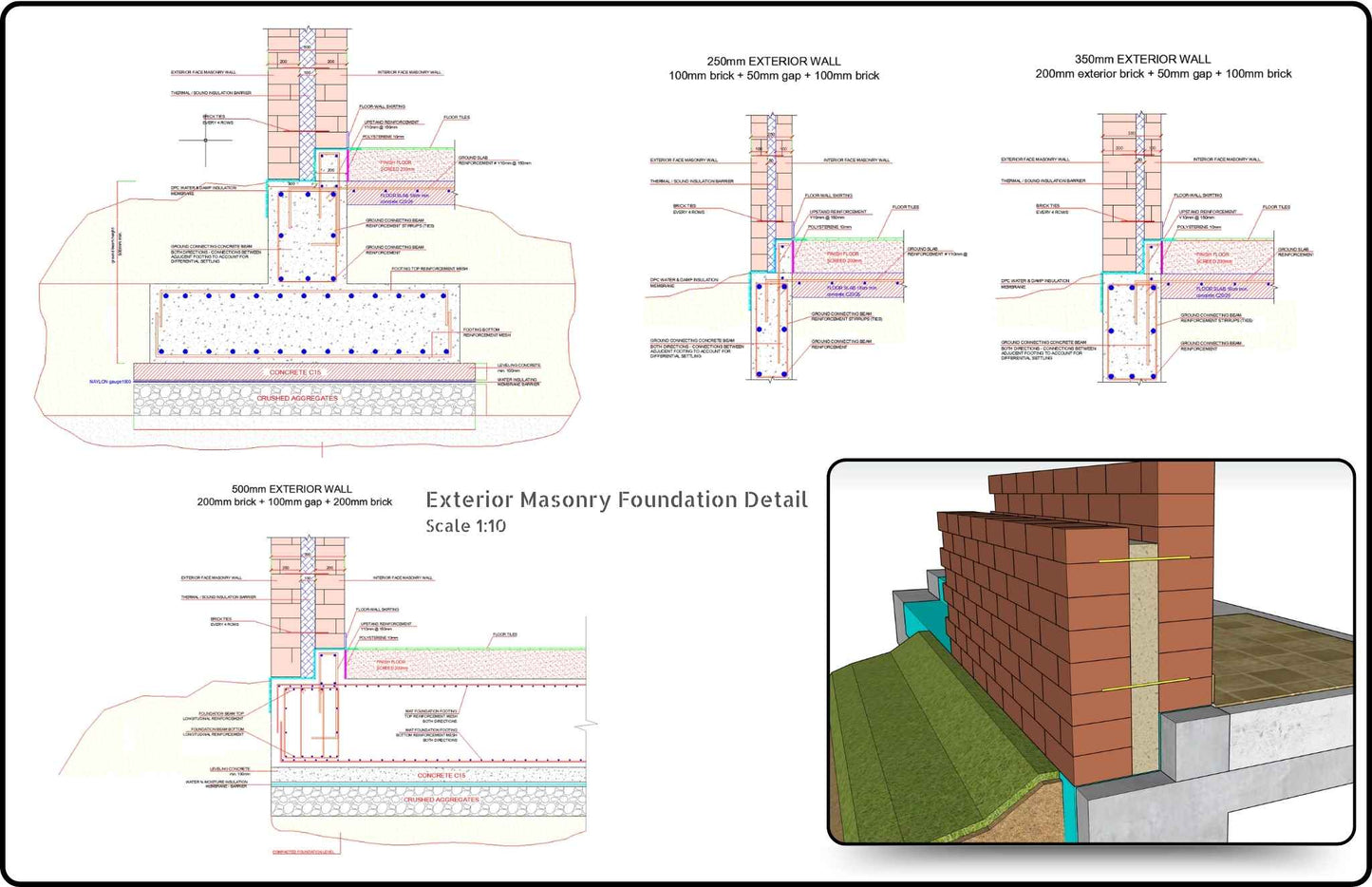

This meticulously crafted detail offers an exceptional resource for architects, engineers, and construction professionals. This CAD detailed drawing illustrates the proper installation of an exterior double brick cavity wall on a building foundation, encompassing two foundation types ( footing and mat spread foundation ) with different wall thicknesses.

Comprehensive Detailing

The detail provides a clear, comprehensive and informative breakdown of all construction phases, including footing and foundation beams, floor slabs, finish floor screen and tiling, upstand, water and damp proofing, double brick masonry walls and ties, cavity with thermal and/or sound insulation.

Foster clear understanding between architects, engineers, and construction teams through a universally understood visual representation.

Flexibility for Diverse Projects

Designed as a generic detail to be used with every project. Fully adaptable to any reinforced concrete design, ensuring that it can be used across a wide range of construction applications. This versatile detail caters to a range of wall configurations, featuring different brick options of 100mm and 200mm millimeters, and cavity widths of 50mm and 100mm, resulting in 3 different wall thickness.

Save time with all projects

Can be used by any engineer, architect, or construction professional working with reinforced concrete designs.

By incorporating this detail into your library, you gain:

  • Improved Quality: Ensure flawless construction by visualizing every element of the foundation and brick wall system.
  • Enhanced Efficiency: Streamline the design process with a comprehensive reference at your fingertips.
  • Superior Communication: Foster clear understanding between architects, engineers, and construction teams through a universally understood visual representation.
