Eccentric Footing Constant Width Retaining Wall Design

Eccentric Footing Constant Width Retaining Wall Design

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

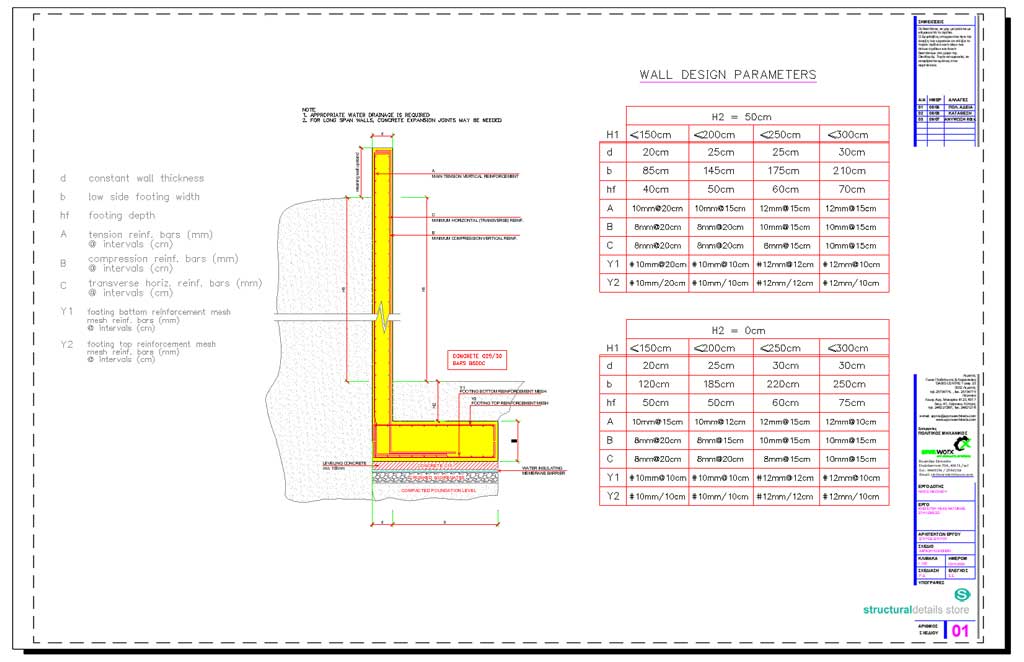

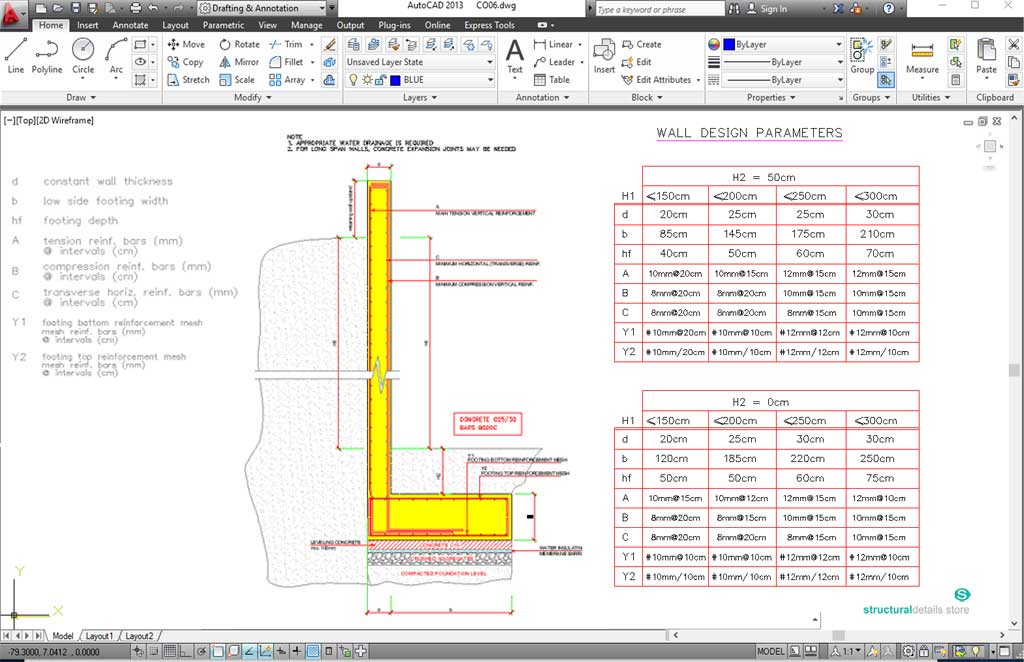

This is a CAD dwg drawing of an Eccentric Footing Constant Width Retaining Wall Design. Complete and fully designed cantilevered retaining wall with 8 different soil retaining conditions, where the eccentric footing is on the low side of soil.

You will never have to design another retaining wall of this type. Use this drawing design as is with all your projects and you are done.

Comprehensive Detailing

This highly detailed construction drawing is one of the most valuable and essential tool you will need when designing reinforced concrete retaining walls to help you save valuable time with every project.

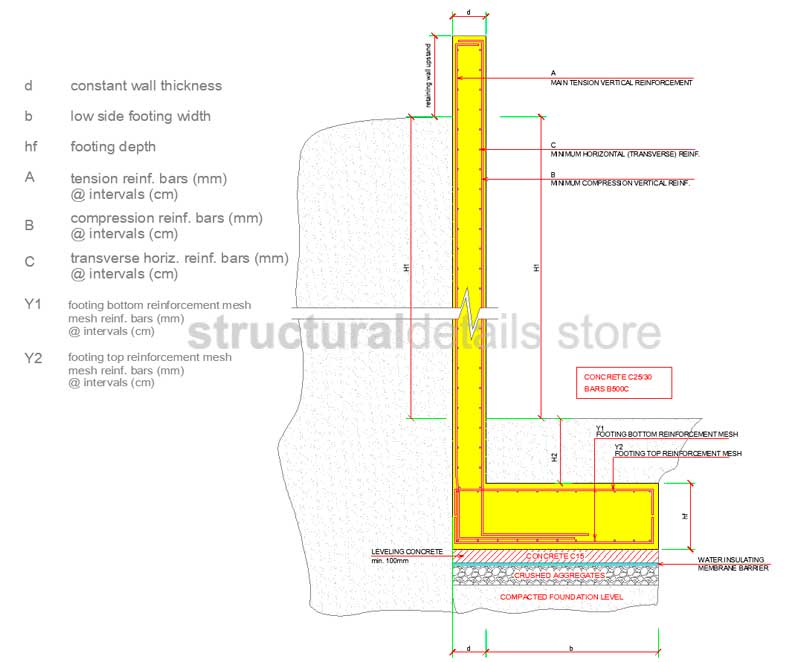

It provides a clear and detailed depiction of the footing and wall dimensioning , complete with all necessary reinforcement details.

  • eccentric footing reinforcement
  • tension & compression wall reinforcement
  • longitudinal & transverse reinforcement
  • foundation sub layers
  • dimensioning

Perfect detail to be used as a perimeter plot retaining wall. Although walls footing is best to be under the retaining soil for better over-tip stability, there are cases where plot boundaries or other existing obstacles do not allow for this, thus having to locate the footing on the low unfavorable side of the soil.

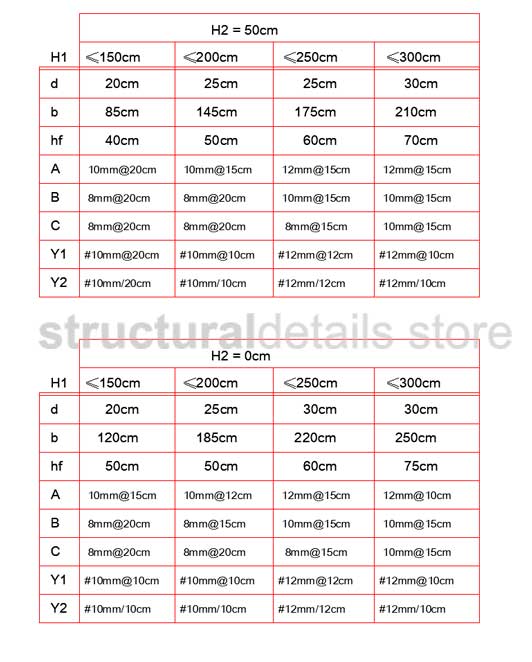

Ready design parameter tables

Design and dimensioning parameters that have been pre-calculated and presented with the included parameters table. Designs available for soil retaining capacity range from 1.50m to 3.00m.

All designs have been carried out using eurocodes including earthquake loadings.

  • included tables with design parameters
  • variable retaining soil scenarios
  • geometric design parameters
  • reinforcement design for each case
  • variable footing dimensions and scenarios

Generic Drawing to use with any project

This comprehensive drawing provides a clear and detailed representation of the retaining wall complete with all necessary reinforcement details.

The drawing is designed to be adaptable to any design project, ensuring that it can be used across a wide range of construction applications.
