Double Stepped Retaining Wall Drawing Detail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

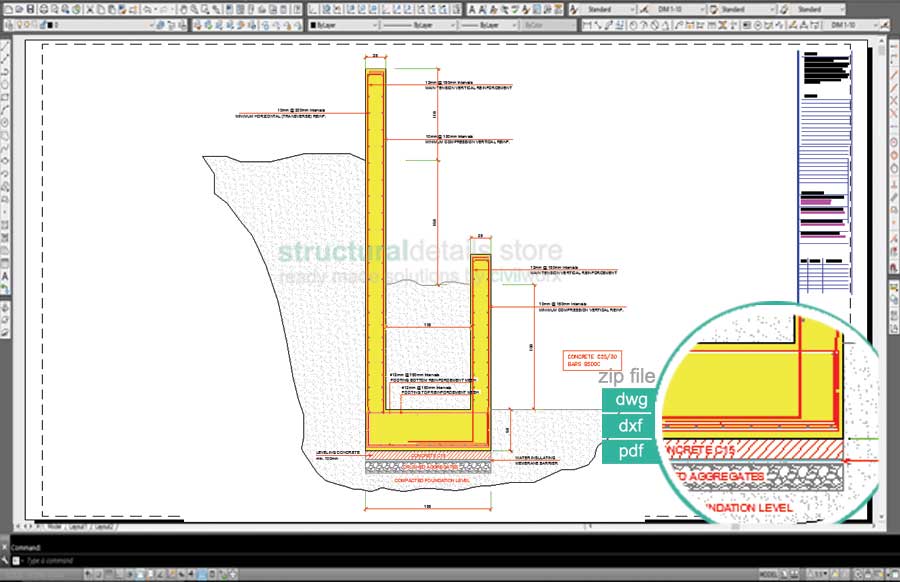

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

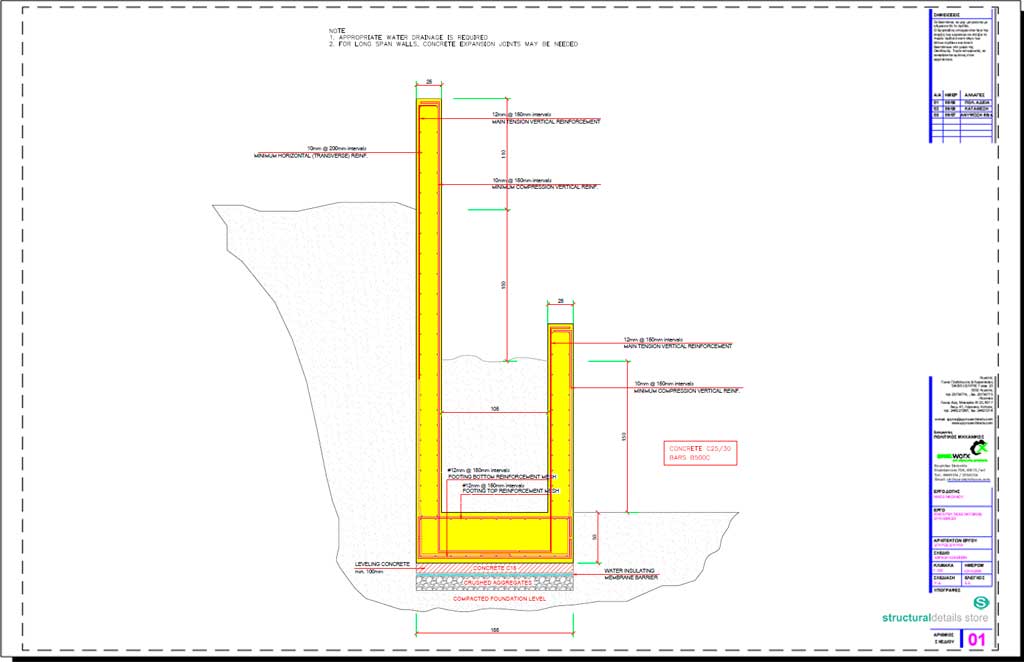

Perfect CAD dwg drawing for a Double Stepped Retaining Wall Drawing Detail. Two medium sized reinforced concrete retaining walls joined with a common footing to create a double stepped high soil retaining structure.

This type of retaining walls configuration is a common practice especially at the plot boundary where with high soil elevation differences to avoid very tall concrete faces. Very useful solution for high soil retaining level difference in order to reduce construction costs of a large tall uneconomical single wall.

Important aspect of this detail is the common footing for both walls. If for any reason the foundation of the two walls cannot be common, the configuration and reinforcement of the two walls must be altered.
