Double Span Hangar Portal Frame Elevation View

Double Span Hangar Portal Frame Elevation View

€8,00 EUR
€8,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

This is a detailed CAD drawing of a Double Span Hangar Portal Frame Elevation View. Elevation view is drawn to 1:10 scale with HEB profile section columns and IPE profile section beams with haunch connections from the same IPE beam profile cut-outs.

Drawing can be used with any steel frame industrial building or hangar. With simple CAD commands the elevatoin view can be very easily adjusted to fit your project’s span and roof slope.

Detailed Elevation View

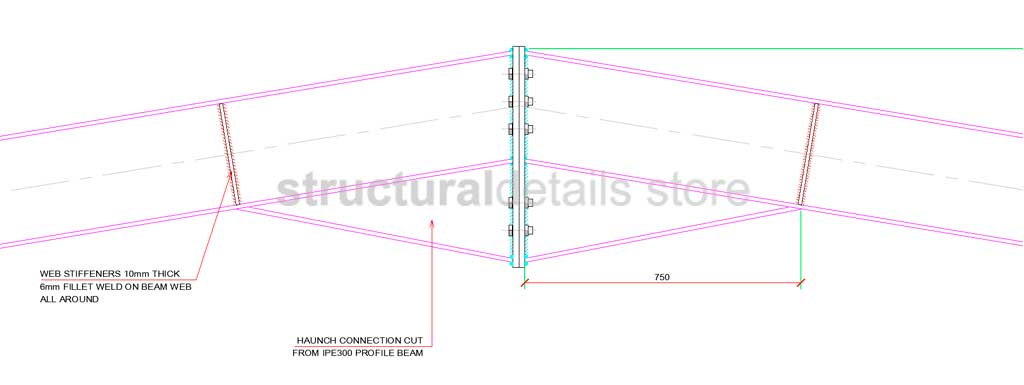

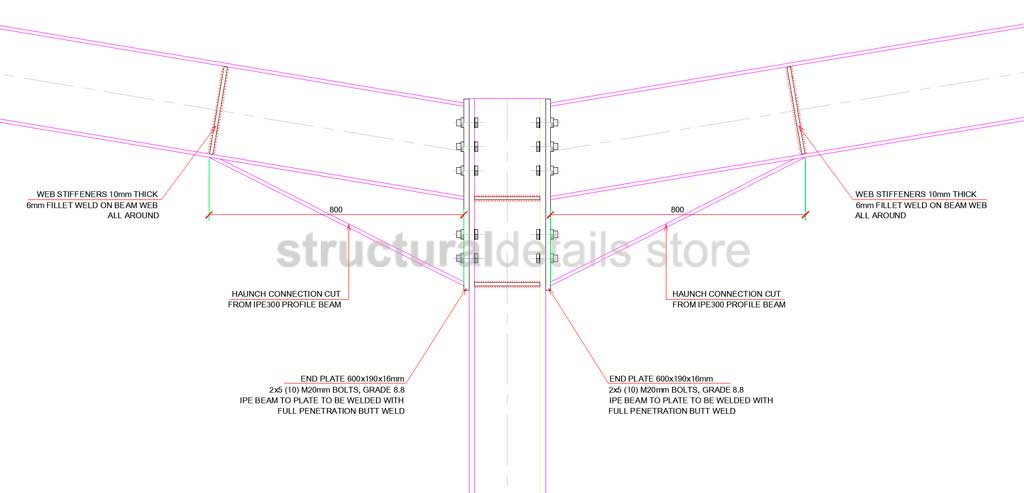

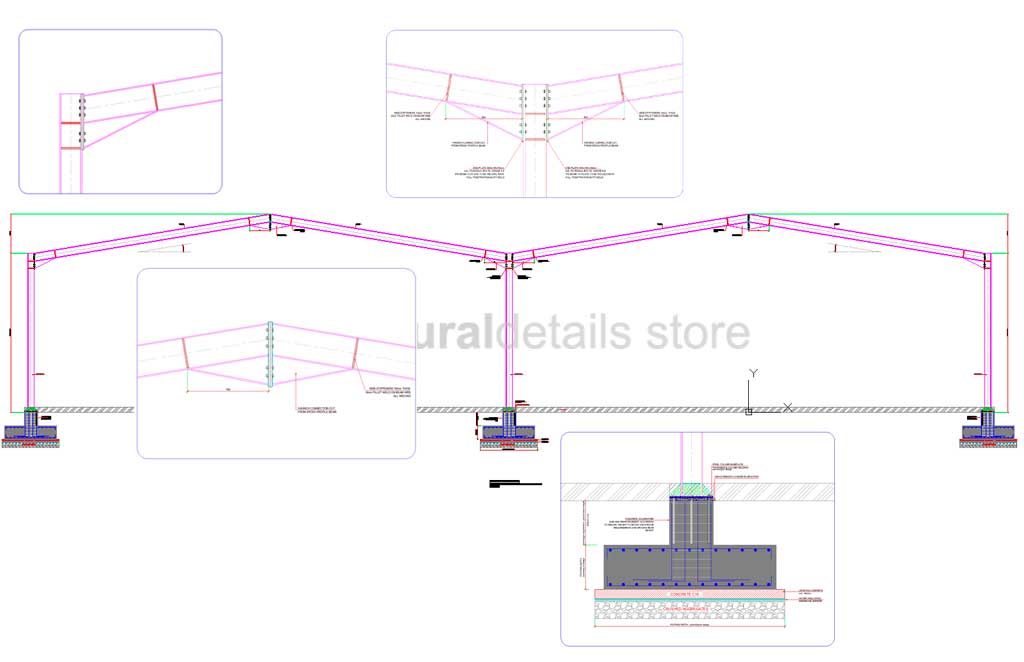

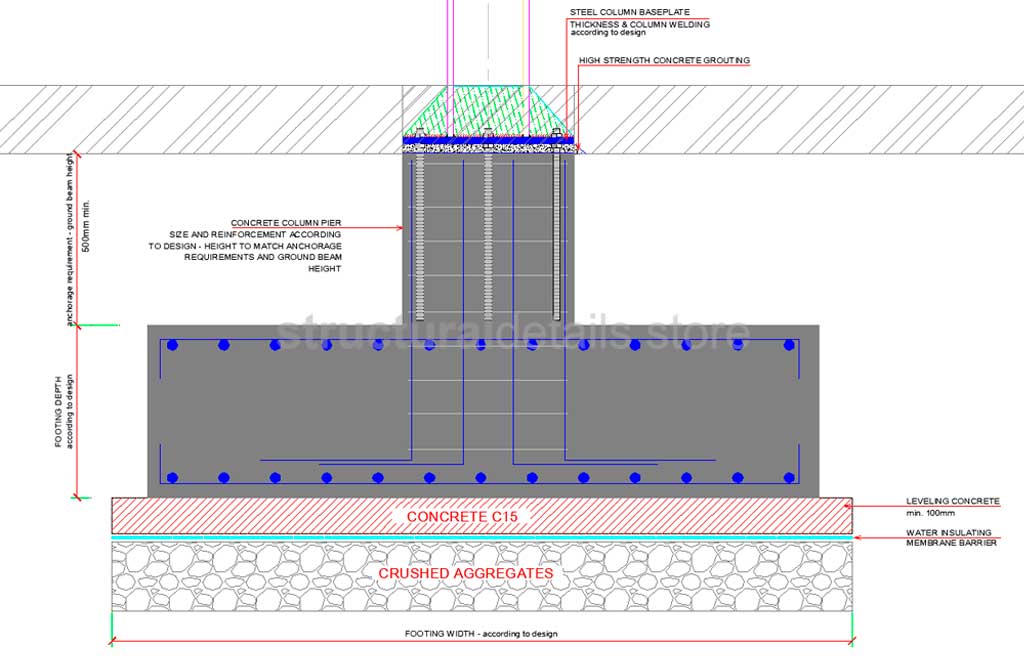

This 2D elevation view of the double span portal frame includes all the necessary details that you will need to create. Footing foundation with column pier, all beam to column haunch connections for the ridge, end support and mid-span valley connection.

Use with any project

This comprehensive elevation view drawing provides a clear and detailed representation of the double span portal frame structure, complete with all necessary connection details in elevation view.

The drawing is designed to be adaptable to any design project, ensuring that it can be used across a wide range of construction applications. With a simple stretch command one can alter this portal frame elevation view to suit every project, changing height, width, inclination etc.
