Double Angle Web Cleats Simple Beam to Beam Connection

Double Angle Web Cleats Simple Beam to Beam Connection

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

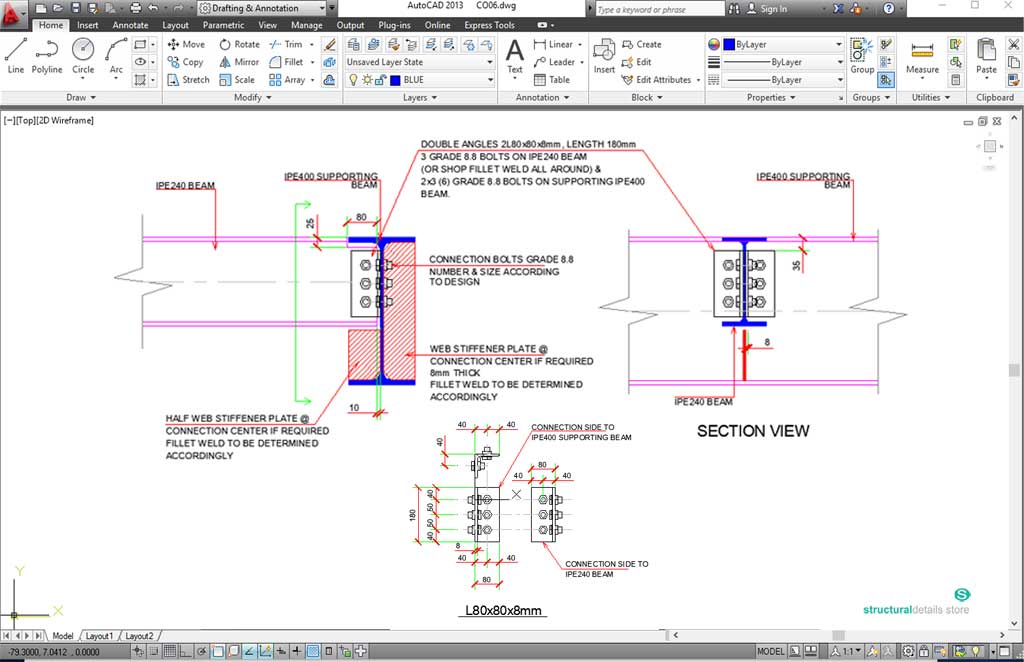

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

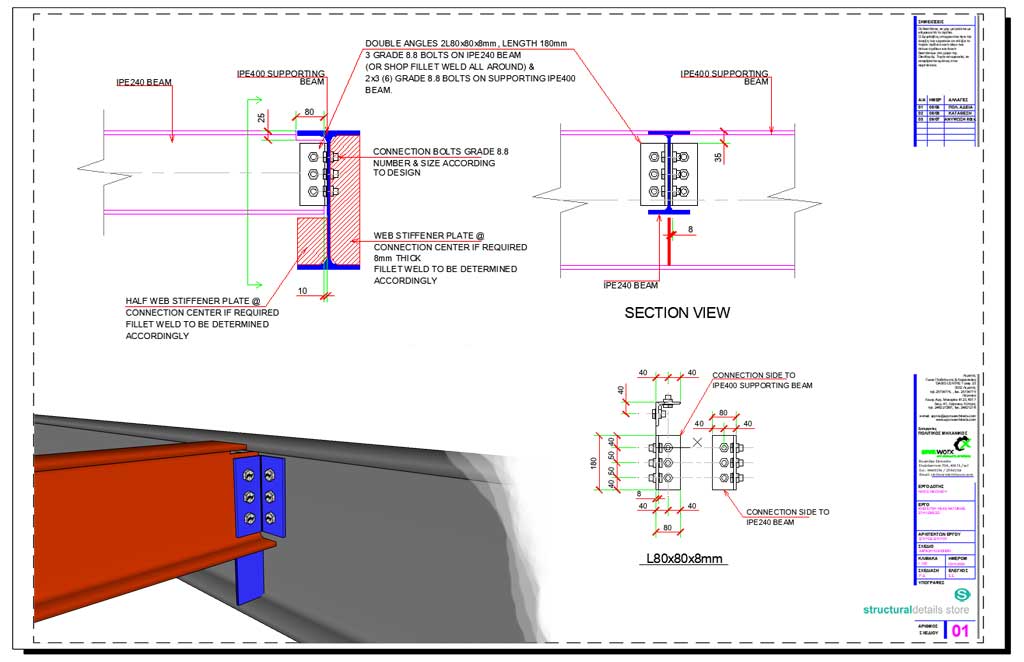

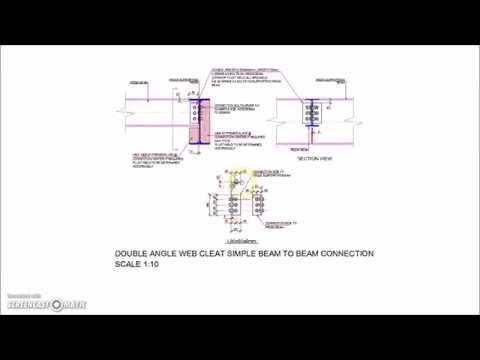

Looking for a CAD detailed drawing to help you design a double angle web cleats simple beam to beam connection? This powerful resource provides a comprehensive and accurate illustration of a moment releasing simple connection, between a secondary parallel flange IPE profile beam onto a primary IPE beam, with a double angles.

Comprehensive Detailing

This comprehensive connection drawing includes complete dimension detailing, angle thickness and sizing, bolts grade, diameter and position, welding specifications, beam web stiffener size and welding, and more. The main beam web stiffener provides excellent shear force distribution throughout the primary beam’s web.

Simple connection with no theoretical moment resistance. Double angles connected to the secondary IPE-section beam, with either bolts or shop fillet welding, and on-site botled on the web of the primary supporting beam. Both beams have the same top elevation.

Use with any project

The drawing is designed to be adaptable to any steel design project, ensuring that it can be used across a wide range of construction applications. You can easily customize the detail to fit your unique design specifications and steel beam profile sections, saving valuable time and increasing efficiency on every project.

There is simply no need to design and detail connections from scratch when ready made solutions are available at an excellent minimum price.
