Discontinued Concrete Column Supported on Beam Detail

Discontinued Concrete Column Supported on Beam Detail

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

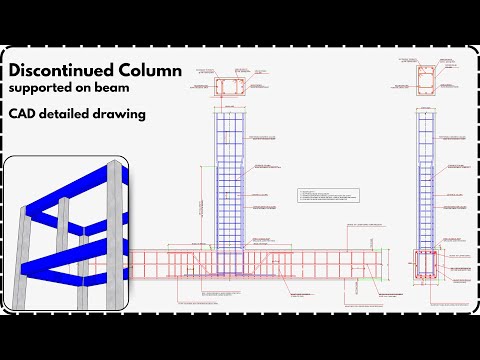

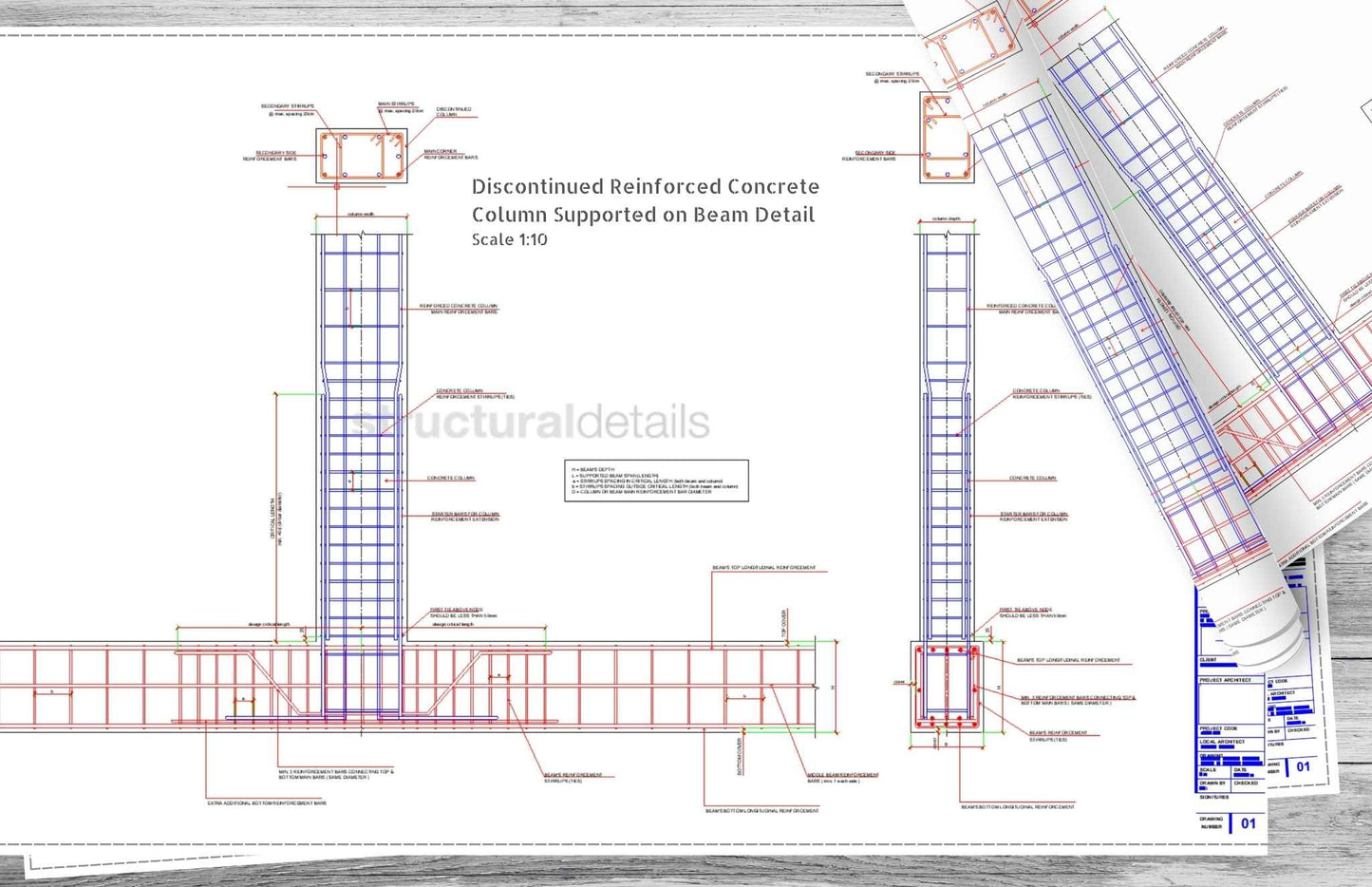

Looking for a way to save time and increase efficiency on your construction projects? This generic CAD structural detail, of a discontinued reinforced concrete column supported on a reinforced concrete beam detailed CAD drawing, can be used in any project as is and help you save valuable time.

Comprehensive Detailing

Comprehensive breakdown of the connection and support of the discountinued column onto a primary structural beam.

All necessary beam and column reinforcement detailing, stirrups, additional support reinforcements and minimum requirements to achieve a proper support of a discontinued column. Bars critical length, anchorage and reinforcement concrete bod requrements.

This detailed drawing is an essential addition to your design toolkit. Use it to ensure your structural details are up to code with the highest level of detail necessary for every project.

Use with any project

Designed as a generic detail to be used with every project. Fully adaptable to any reinforced concrete design, ensuring that it can be used across a wide range of construction applications.

By incorporating this drawing into your library, you’ll have a reliable and accurate resource at your fingertips for every reinforced concrete design.
