Continuous Timber Beam Supported on Top of Steel Beam

Continuous Timber Beam Supported on Top of Steel Beam

€4,00 EUR
€4,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

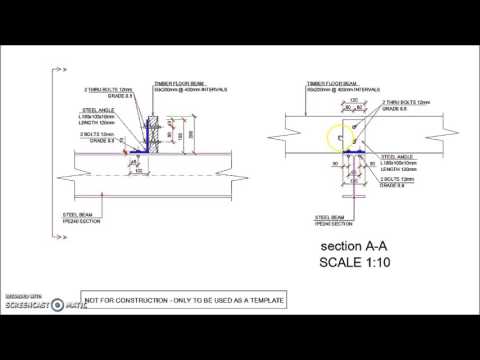

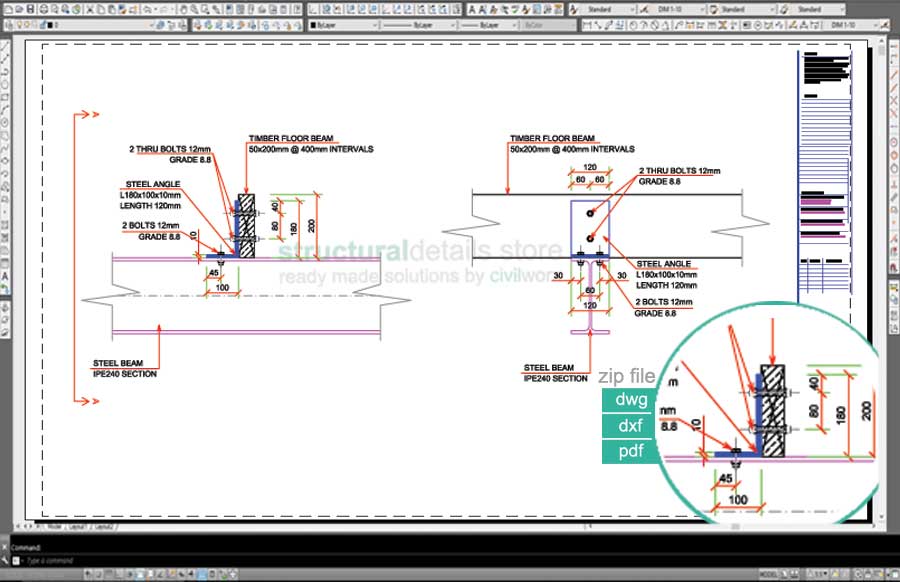

CAD dwg drawing of a Continuous Timber Beam Supported on Top of Steel Beam.

In timber framed structures when spans are bigger than normal, a steel beam might be used to support loads at big openings. The timber secondary beams will then need to be detailed to be supported on top of that steel primary beam.

In this detail a secondary timber floor span beam is supported on top of a parallel flange steel beam with the use a single angle cleat and through bolts. The angle connection is also bolted onto the steel beam top flange.

View full details
