Constant Width Cantilever Retaining Wall Central Footing Design

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

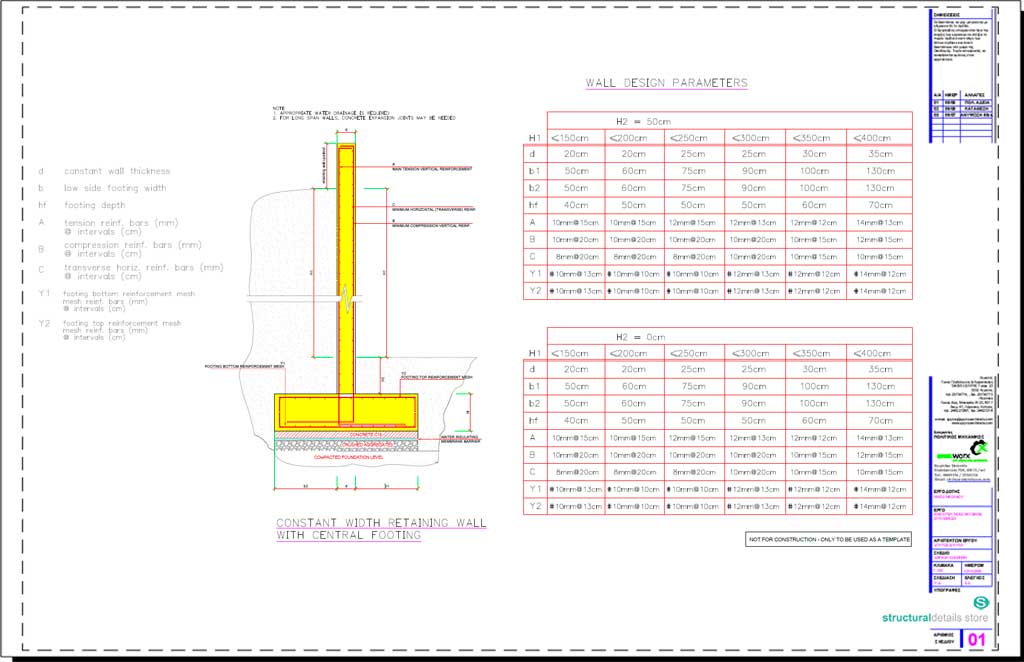

This is a CAD dwg drawing of a Constant Width Cantilever Retaining Wall Central Footing Design. Complete and fully designed cantilevered retaining wall for 8 different soil retaining conditions, where the footing is located centrally to the wall with equal dimensions on both high and low side of the soil.

You will never have to design another retaining wall of this type. Use this drawing design as is with all your projects and you are done.

Cantilevered Retaining wall drawing with design and dimensioning parameters that have been pre-calculated and presented with the included parameters table. Designs available for soil retaining capacity range from 1.50m to 4.00m. All designs have been carried out using eurocodes including earthquake loadings.

Perfect detail to be used as a perimeter plot retaining wall. Although this type of footing is rarely used, in some cases where both sides of the wall are to be infilled with soil, it might be favorable to use a central footing for extra stability, thus having if required higher retaining capacity (i.e. 4.0m height ).

• footing reinforcement
• footing reinforcement
• tension & compression wall reinforcement
• longitudinal & transverse reinforcement
• foundation sub layers
• dimensioning
