Concrete Slab on Grade Soil Details

Concrete Slab on Grade Soil Details

€5,00 EUR
€5,00 EUR
Sale Sold out

DIGITAL CONTENT – INSTANT DOWNLOAD

WHAT'S INCLUDED

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

REFUNDS POLICY

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

FULL PRODUCT DESCRIPTION

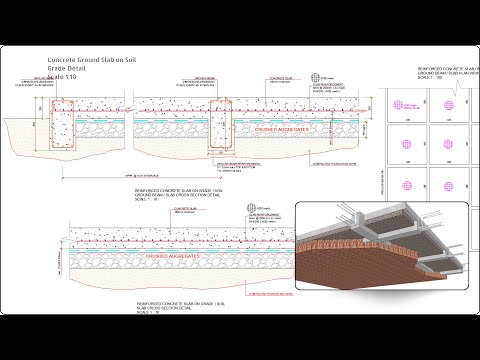

This is generic CAD structural detailed drawing for reinforced concrete slab supported on grade ( soil ). Slab-On-Grade detail. Includes cross sections and plan view of a typical concrete slab on grade. Details include both flat ground slab as well as ground slab with ground beam supports.

Looking for a way to save time and increase efficiency on your construction projects? Own this widely used detail with every project and save time.

Ground beams reinforcement

Depending on the use of the ground slab, ground beams might be desired in order to ensure stability and prevent differential settlement. All depends on the use and load to be carried by the ground slab.

This detailed drawing is an essential addition to your design toolkit. Use it to ensure your structural details are up to code and impress your clients with the level of detail and professionalism you bring to every project.

Use with any project

This type of construction is often referred to as a turned-down slab. Slab-on-grade foundations are suited best where the ground doesn’t freeze, and the soil has strong load-bearing capacity, but material can be imported to improve the base.

Perfect detail for veranda patios, garden extensions, kiosk floors, small outdoor structure foundations etc.

Designed as a generic detail to be used with every project. Fully adaptable to any reinforced concrete design, ensuring that it can be used across a wide range of construction applications.

By incorporating this drawing into your library, you’ll have a reliable and accurate resource at your fingertips for every reinforced concrete design.
