Concrete Roof Slab Valley Clay Tiles Detail

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

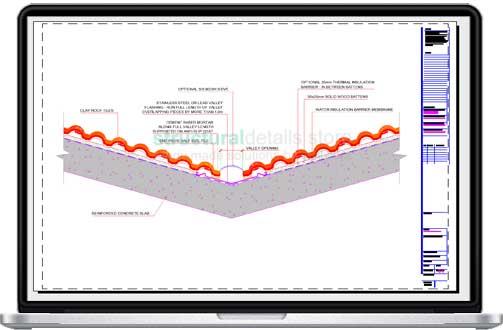

This is a CAD dwg drawing of a Concrete Roof Slab Valley Clay Tiles Detail. Inclined hipped ( pitched ) roofs, with intersecting shapes ( i.e. l-shaped, cross shaped etc ) create a valley at their intersection where rain water needs to be collected from both sides of the roof and diverted into the drains. Roof clay tiles laying out, proper insulation is essential for a successful roof valley construction.

This detail illustrates correct positioning of the roof clay tiles, methodology and system of water insulation as well as water restraining inside the valley, actual valley shape and dimensions as well as optional thermal insulation. Standard type roof clay tiles are used for this detail, together with their solid wood battens for their support onto the reinforced concrete sloped slap.
