Complete construction details for pseudo timber roof

DIGITAL CONTENT - INSTANT DOWNLOAD. Your files will be available to download immediately after successful payment.

STRUCTURAL CAD DRAWING .dwg, .dxf, and .pdf delivered in one zip file.

3D Images and models are not included with this purchase.

For digital products we generally cannot offer refunds. Refunds can only be considered under specific circumastances. For more details you can read our refund and returns policy HERE

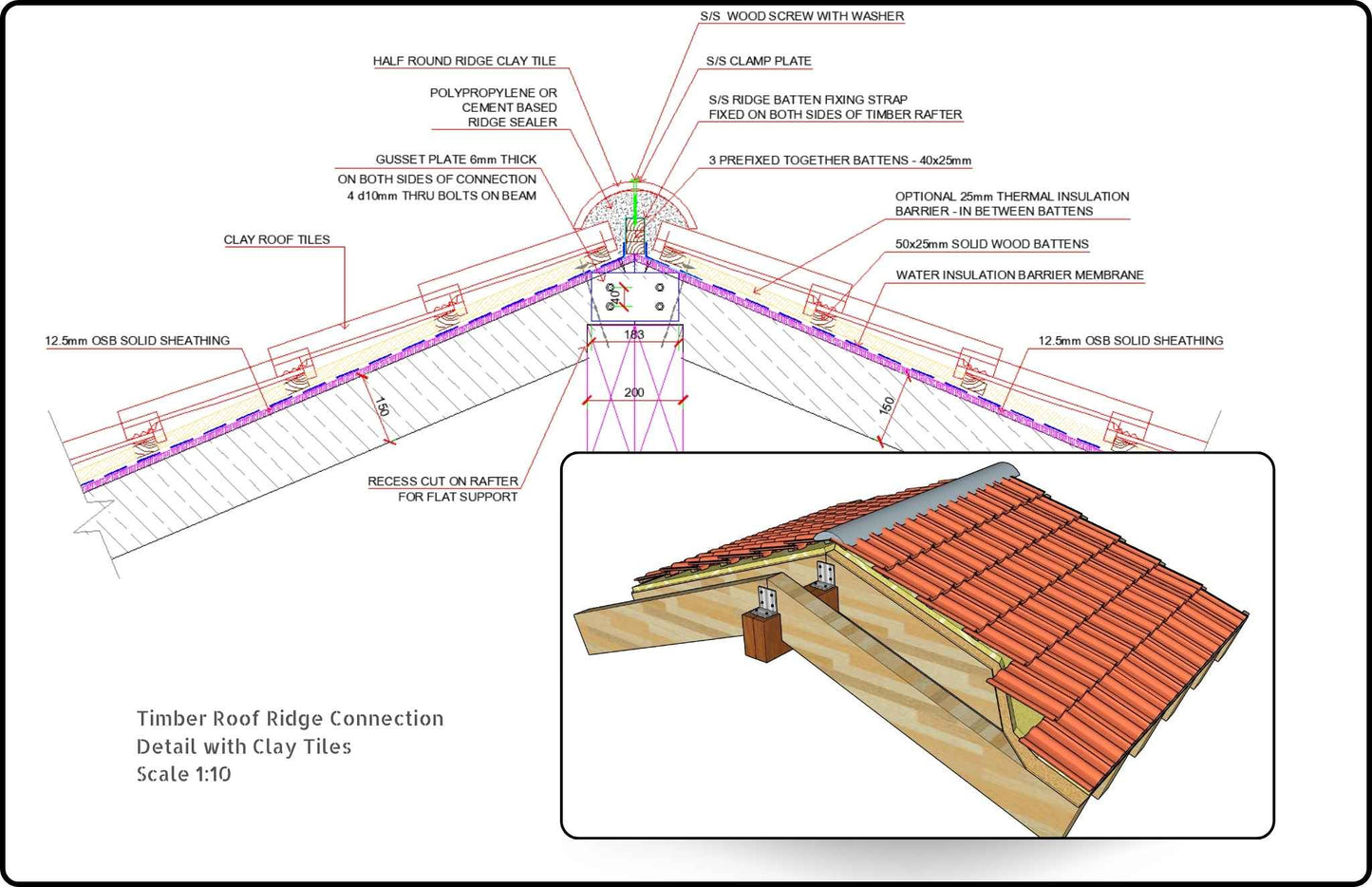

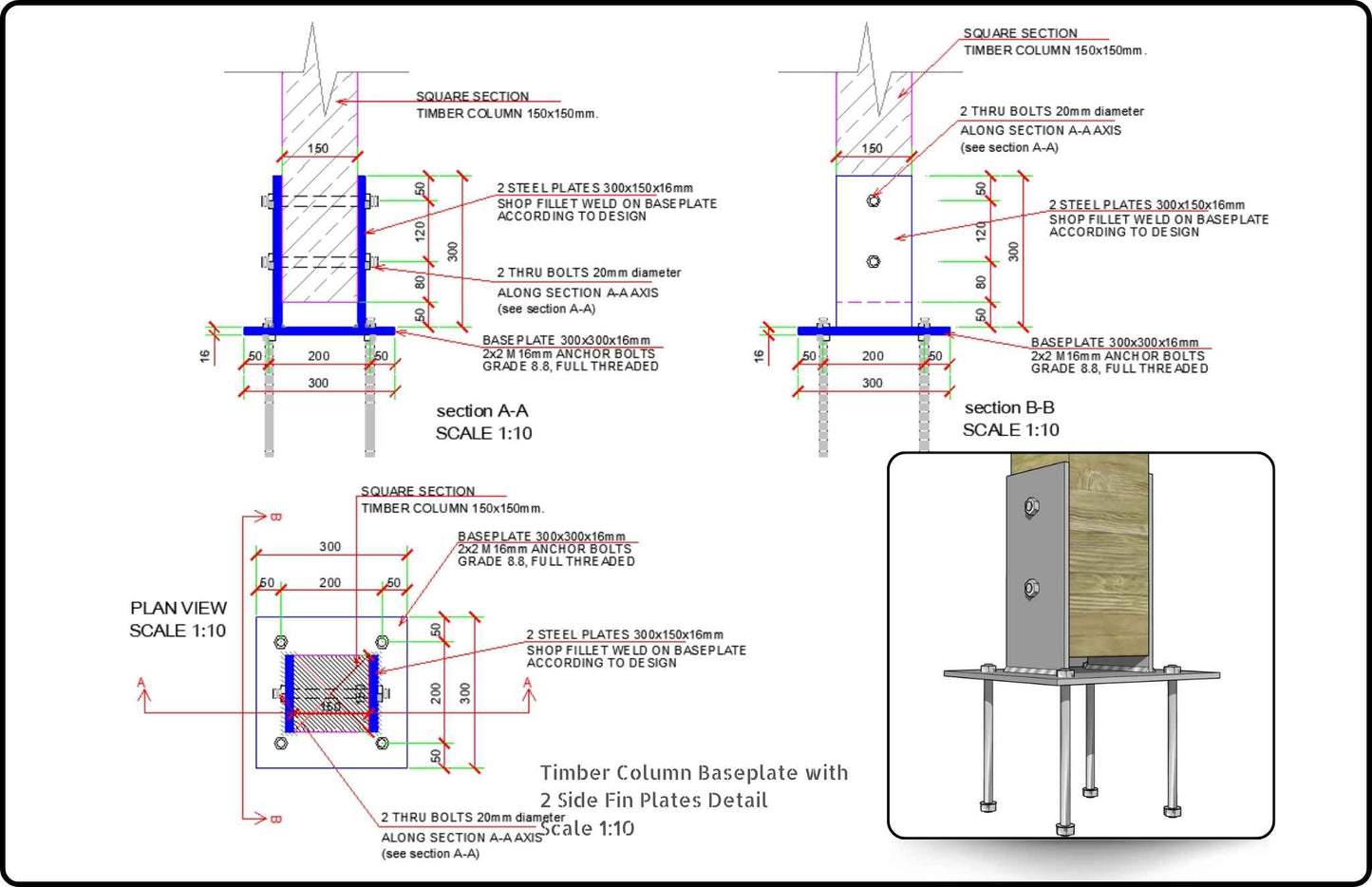

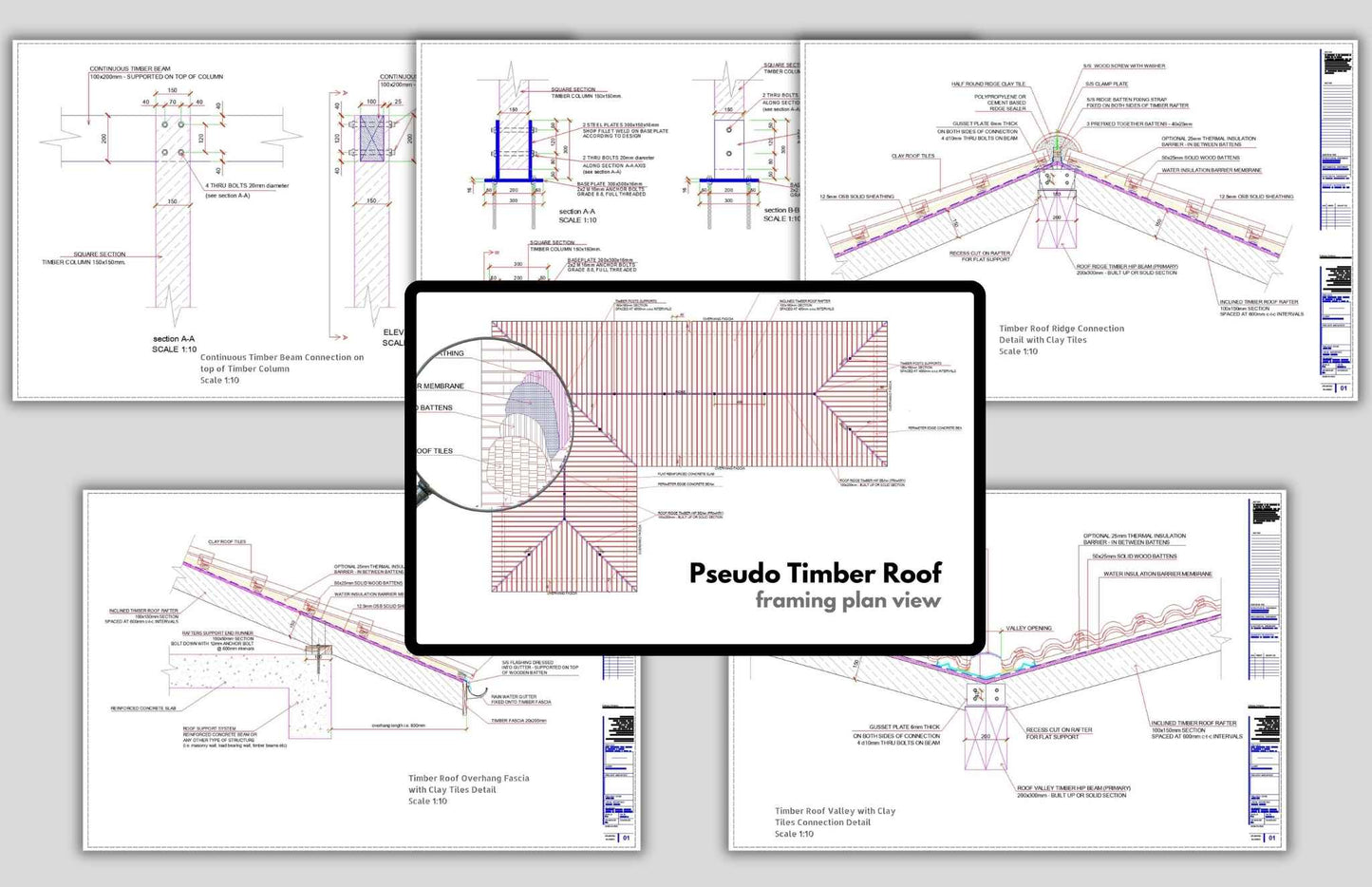

This is a bundled set of drawings for Complete construction details for pseudo timber roof. CAD dwg drawings for a complete design solution for constructing a pseudo timber roof on top of a flat reinforced concrete slab.

pseudo ˈsjuːdəʊ’ – adjective = not genuine, fake,sham

Having a timber roof on top of flat reinforced concrete roof slab is a design practive that has been becoming more and more preferred in the past few years. Even though constructing a double roof structure (both slab and timber roof)  might be a little more expensive ( some may argue differently ) it can provide a double layer of thermal and waterproofing insulation for a building. Some may say that since the timber roof is only constructed with light sections and there is no need for heavy trusses it might cost much less and is much faster in construction time.

We would say that for complex shapes buildings, designing and constructing a regular timber roof with trusses, many cornens, hips, valleys etc might be a bit compersome. And this is where the pseudo timber roof comes in.
